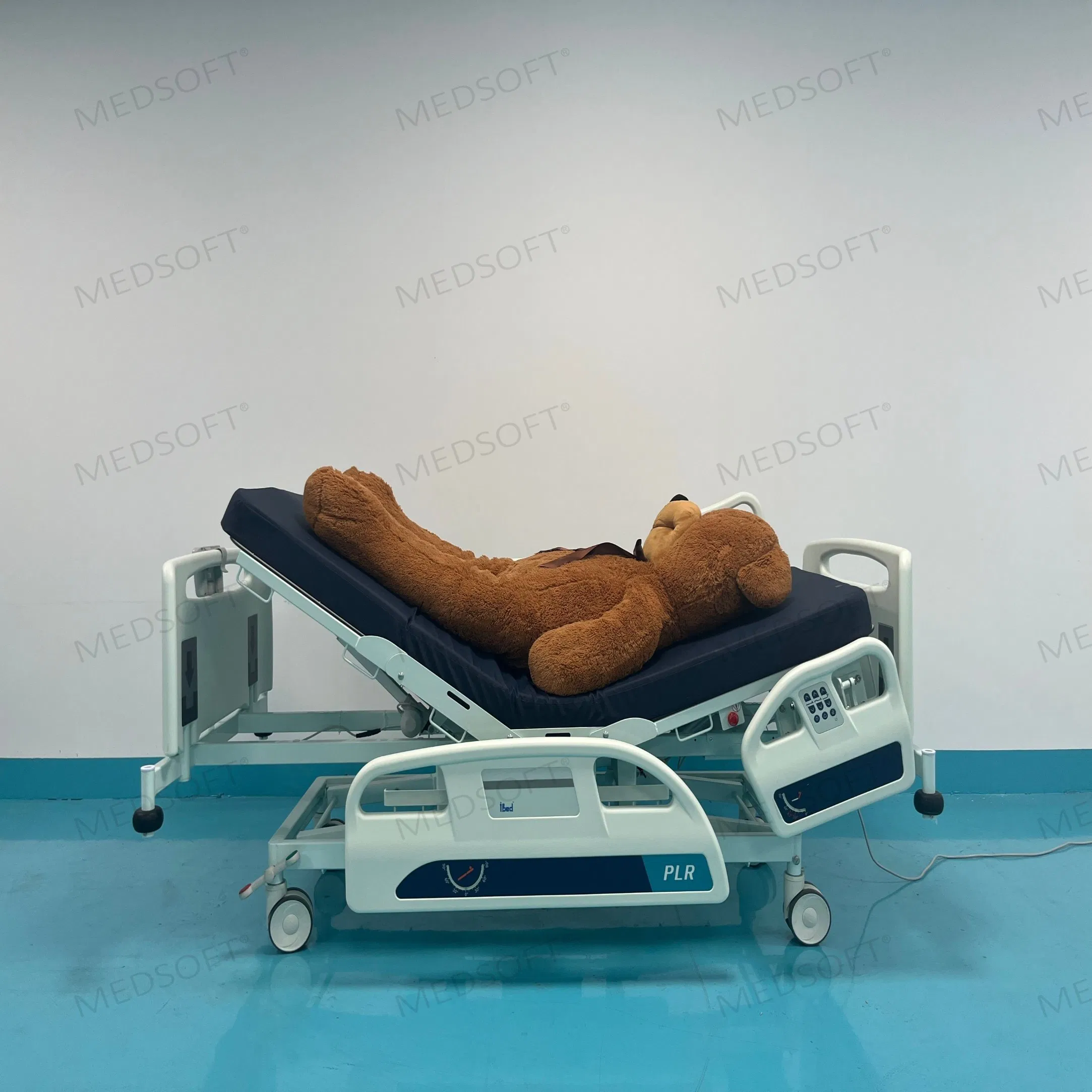

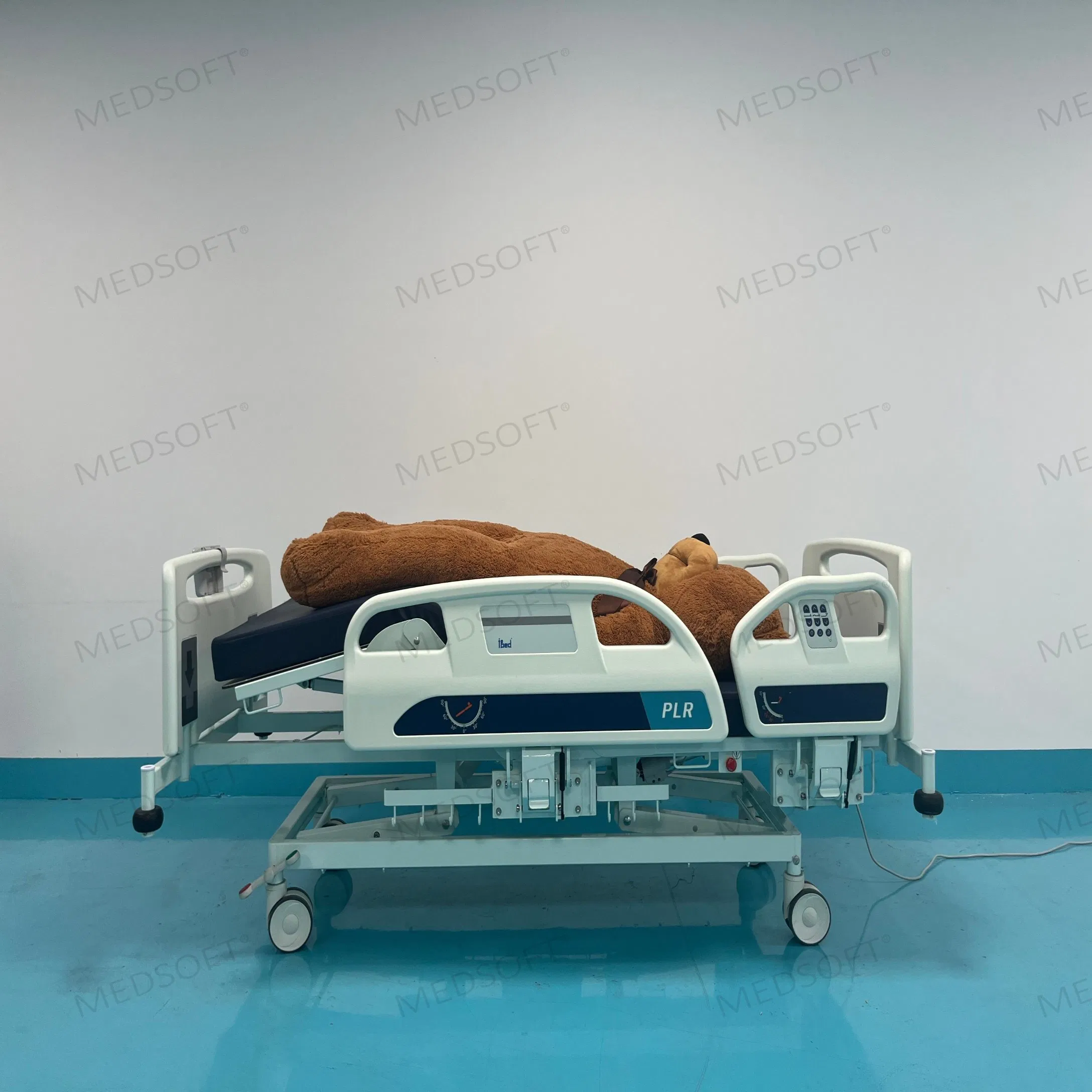

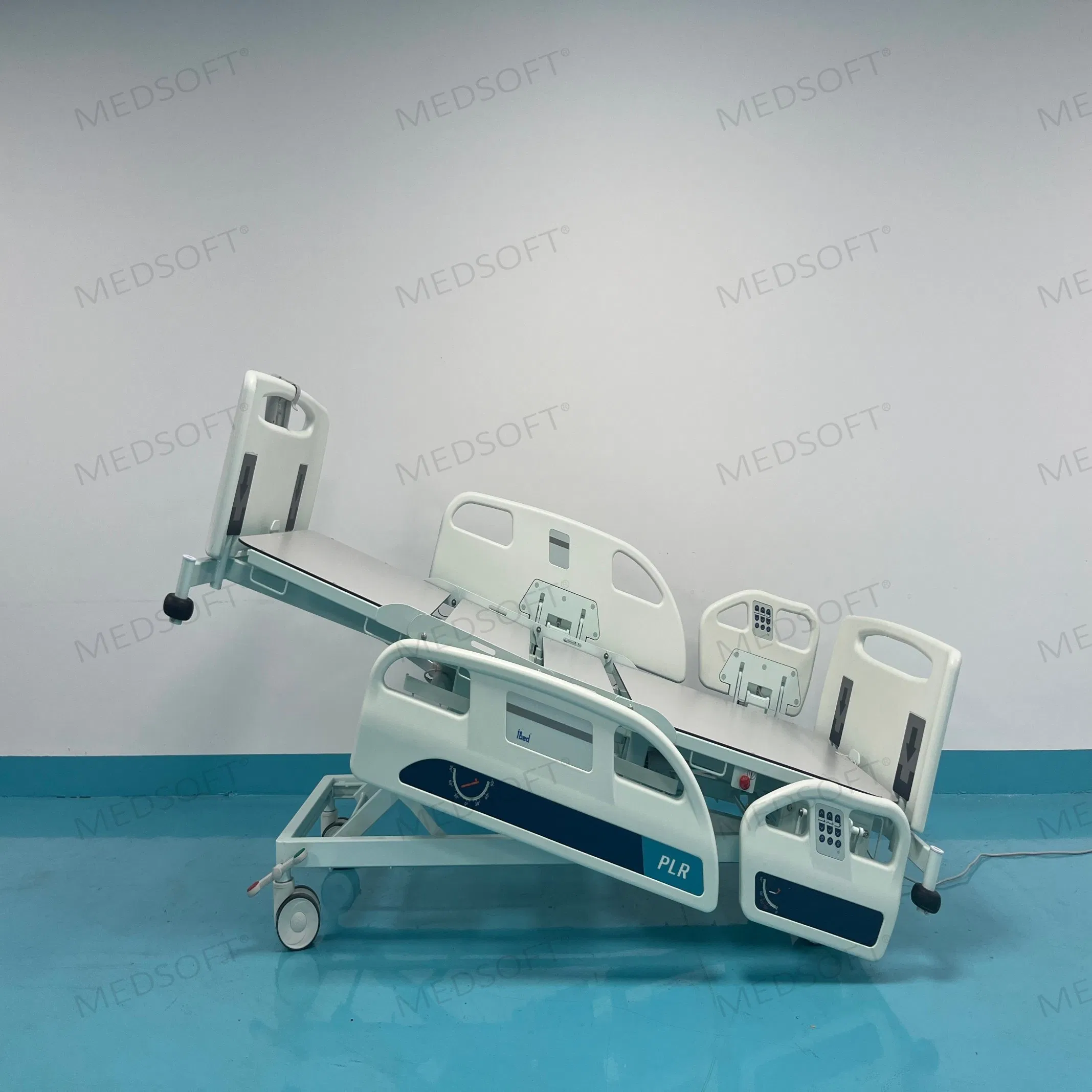

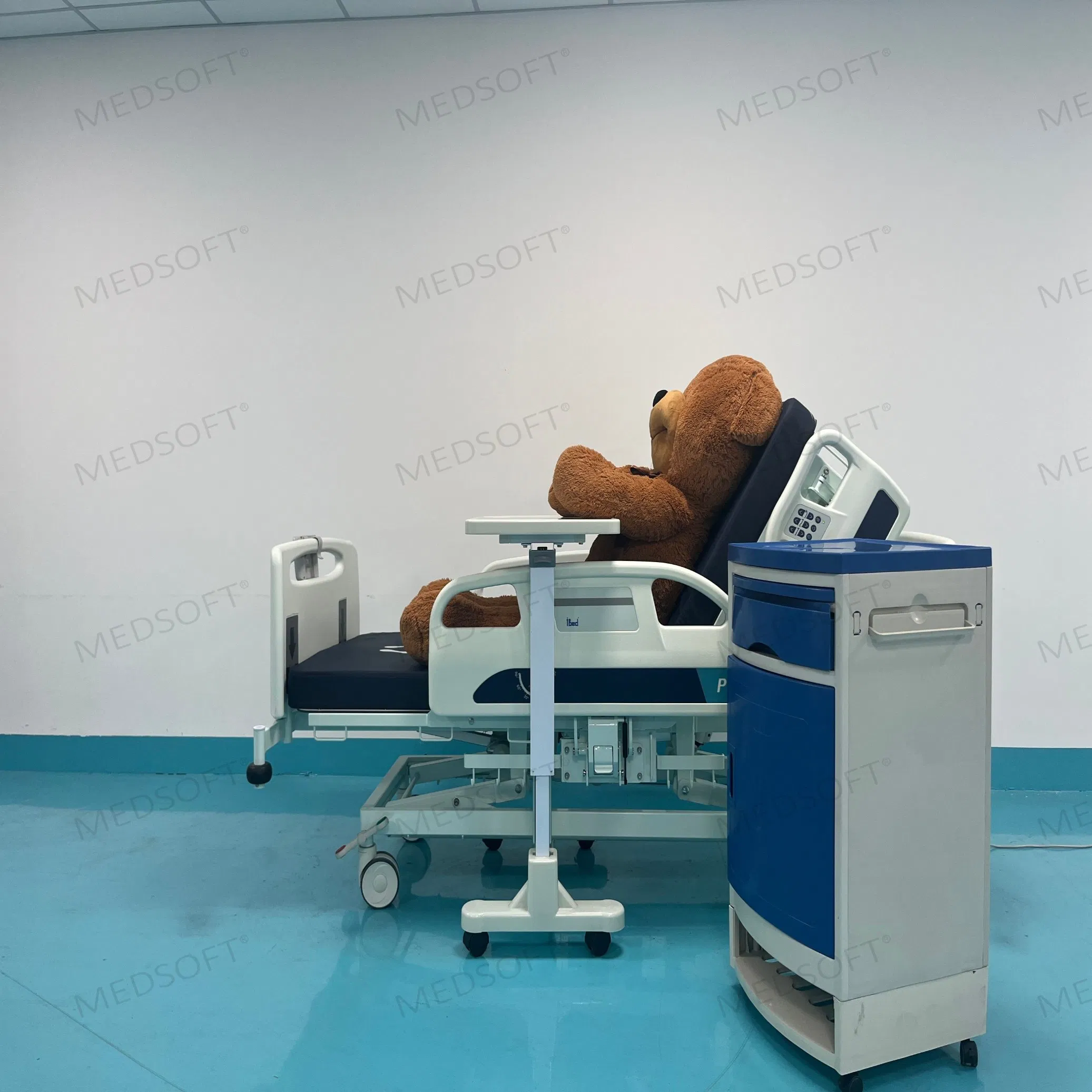

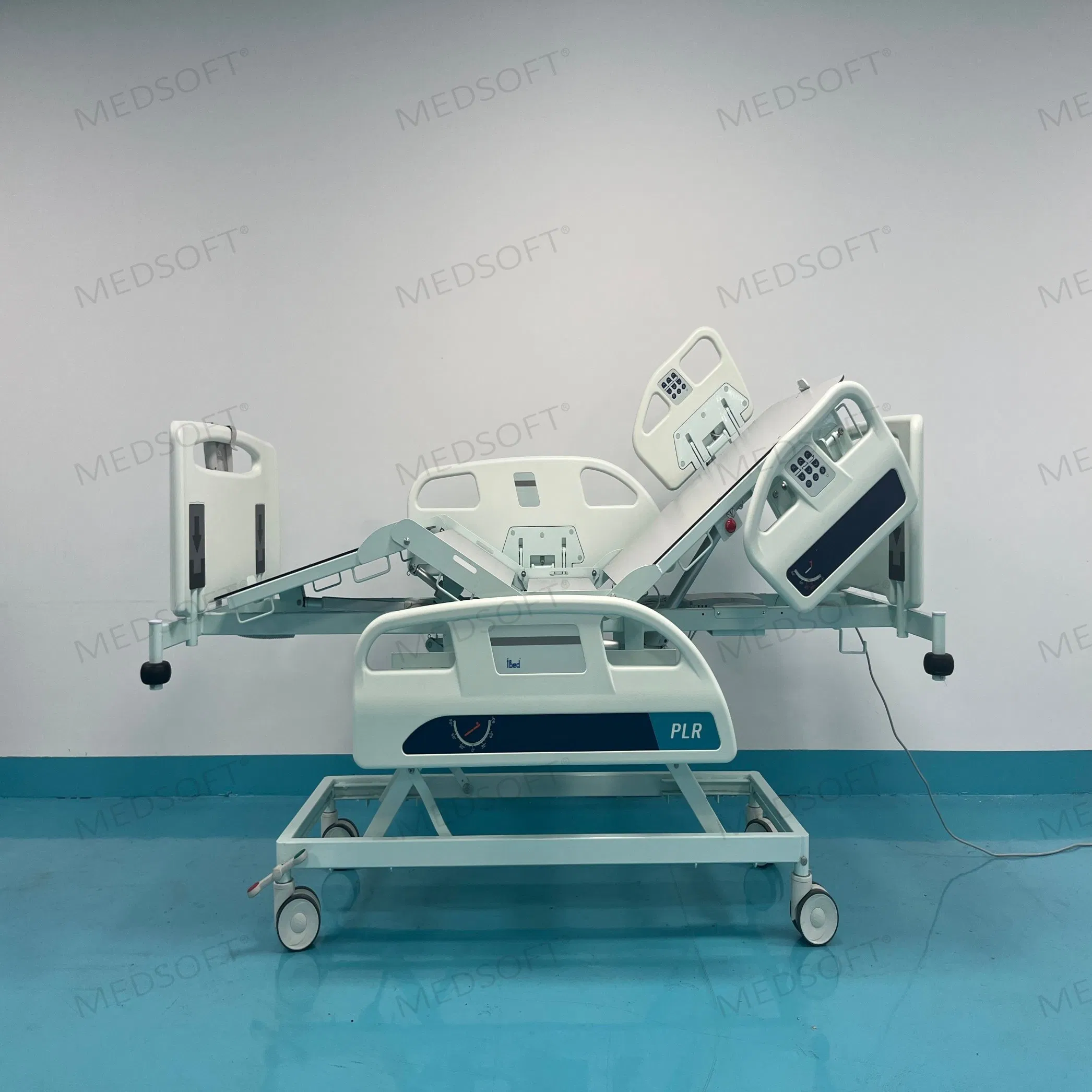

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

1 / 5

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

iBed PLR 3 Pro Weighing Scale Hospital Bed for ICU

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

i

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Function

Five-function Electric

Certification

CE, ISO13485

Condition

New

Safe Working Load

230kg

Controller

7-inch LCD Touch Screen

Casters

Silent Central Locking Casters

Hospital Bed Top View

Hospital Bed Details

★

Product Key Functions

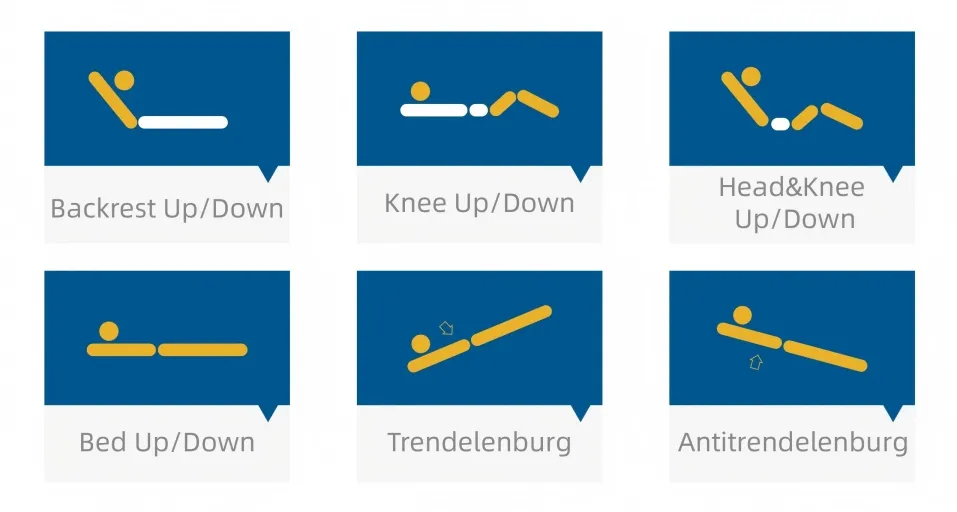

Basic Electric Functions

Electric backrest Up/Down
Electric Knee Up/Down
Electric Bed Height Up/Down
Electric Trendelenburg & Antitrendelenburg

Bed Functions

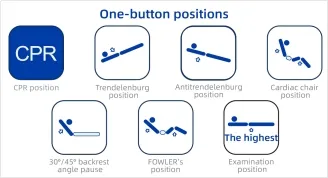

One-Button Control Positions

One-Button Cardiac chair position
One-Button CPR position
One-Button Trendelenburg / Antitrendelenburg
One-Button Fowler / Examination Position
Standard PLR position achieved in 22 seconds

Position Control

Advanced Monitoring & Safety

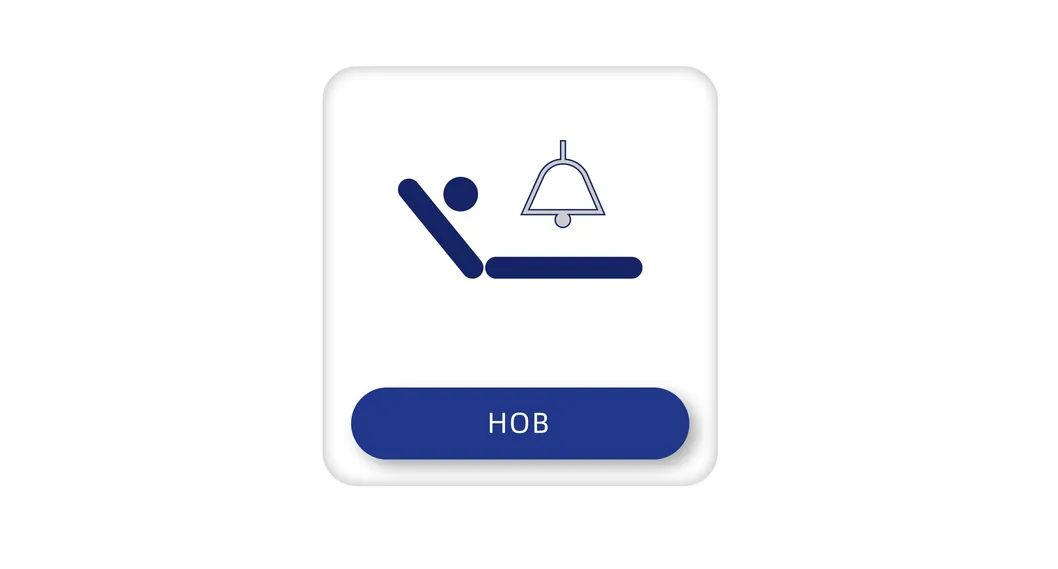

HOB (Head of Bed) Angle Check: Monitors back-board angle between 30-45° and provides voice broadcast reminders.

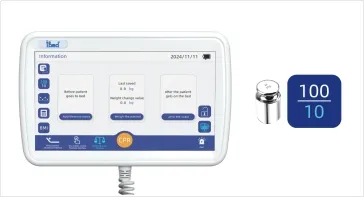

Weighing System: High accuracy (0.01Kg) with storage for 30 measurements and trend chart display.

Auto-Rollback: Reduces patient displacement and shear force during adjustments.

Safety Monitoring

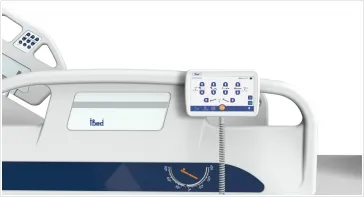

Touch Screen Interface

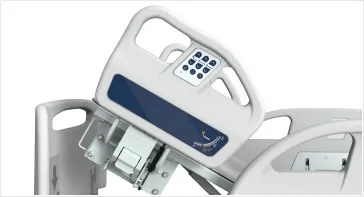

Angle Indicator

Weighing System

📋

Technical Parameters

Parameter	Specification
Overall Size (LWH)	2200 * 1035 * (415-785) mm
Mattress Platform Size	2000 * 811 mm
Backrest Angle	0-70°
Knee Section Angle	0-45°
Trendelenburg / Anti-Trend	0-16°
Motors	Linak Linear Motors (Denmark)
Casters	5" Directional/Central Locking
X-Ray Translucent	Optional Mattress Platform
Bed Extension	200mm (Optional)

✔

Quality & Construction

Denmark Linak motors for stability
Baosteel high-grade steel structure
7-inch touch screen (EN/CN support)
10,000 times uninterrupted brake test
Anti-bacterial epoxy powder coating
360° full smooth robotic welding
IEC60601 Safety Standard compliance
Integrated Patient Restraint Points (12 sites)
Removable HDPE head/foot boards
Dual-sided manual CPR levers with damping

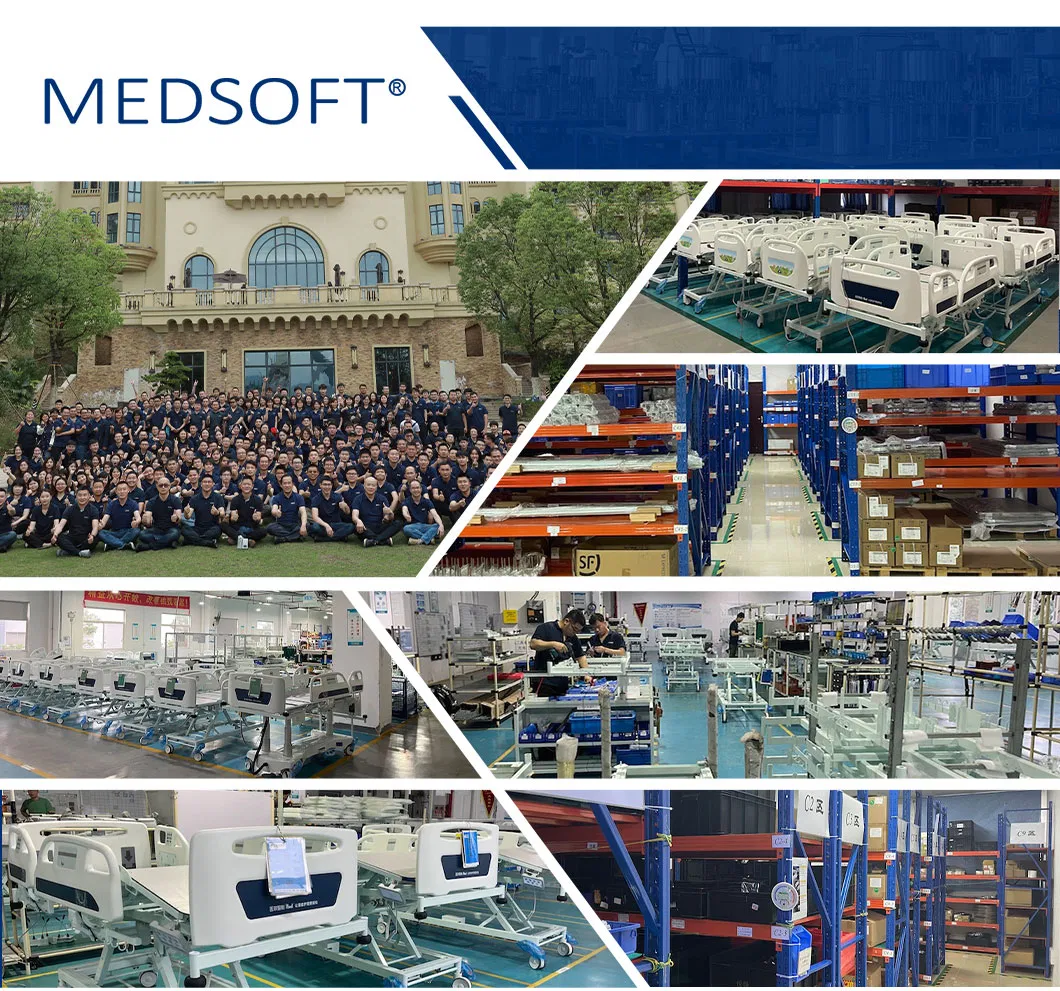

Factory Testing

Product Certificates

Internal Structure

?

Frequently Asked Questions

Can I request a sample of the iBed PLR 3 Pro?

Yes, samples are available for evaluation. Please contact our sales team for details.

Is OEM or custom branding supported?

Yes, we support using your own logo or design on the products to meet your branding requirements.

What motors are used in this electric hospital bed?

We use high-quality Linak motors from Denmark to ensure durable stability and compliance with UL/ROHS/EN standards.

What is the monthly production capacity for these beds?

Our manufacturing facility has a production capacity of approximately 1,000 beds per month.

How long is the typical delivery time?

Most of our standard products are in stock and can be shipped within 7 days of order confirmation.

Does the weighing system record data trends?

Yes, the integrated weighing system has an accuracy of 0.01Kg and can store up to 30 measurements with a trend chart display.
