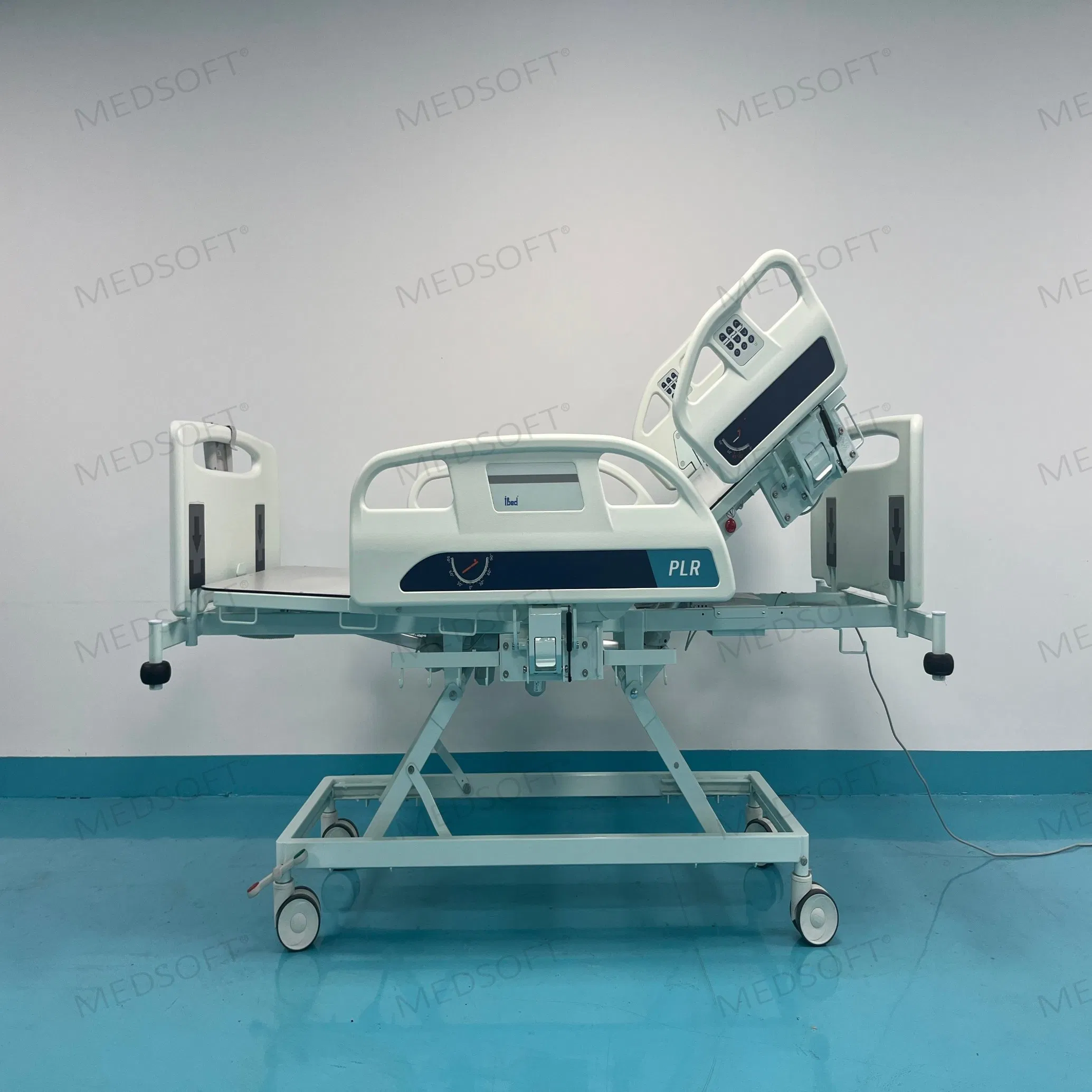

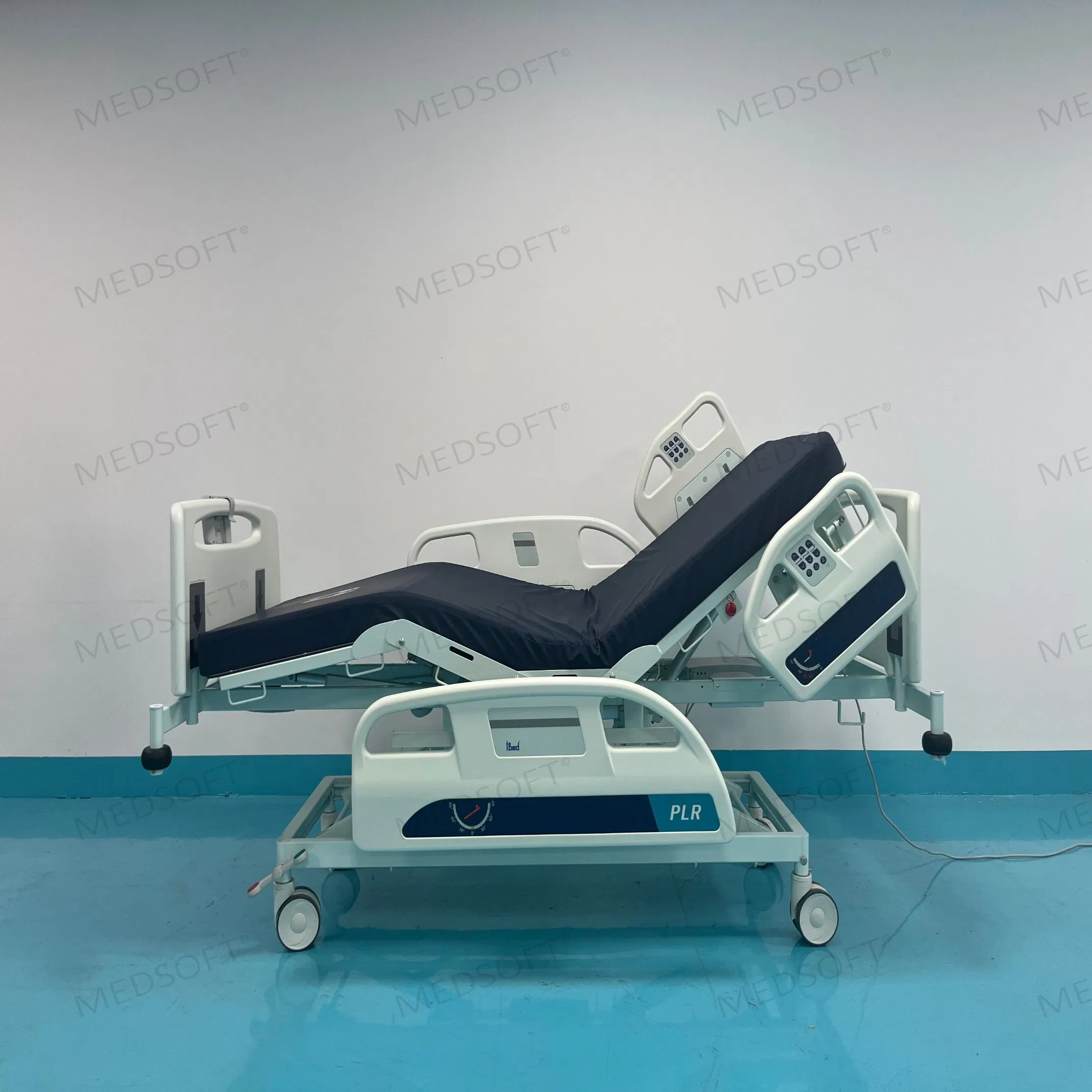

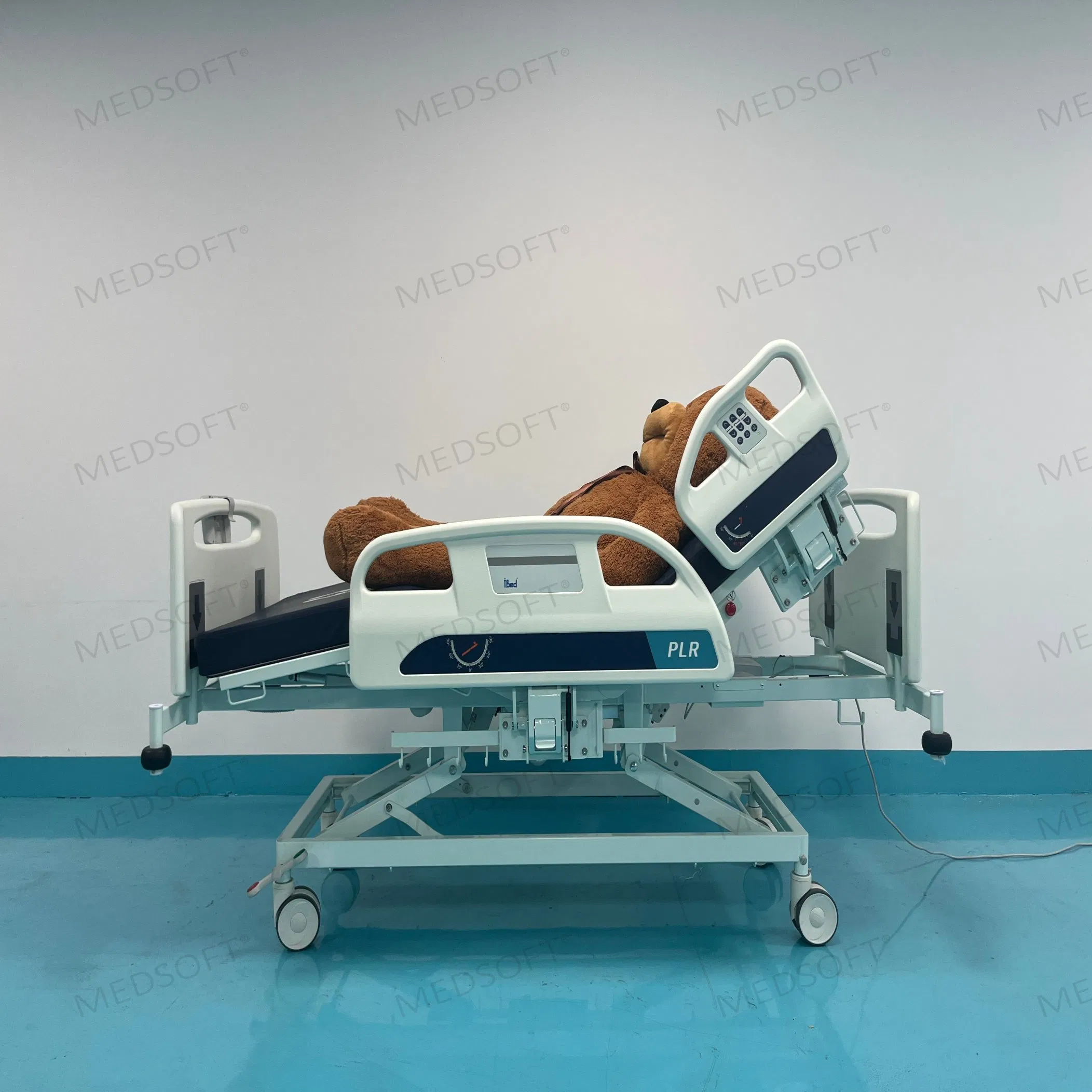

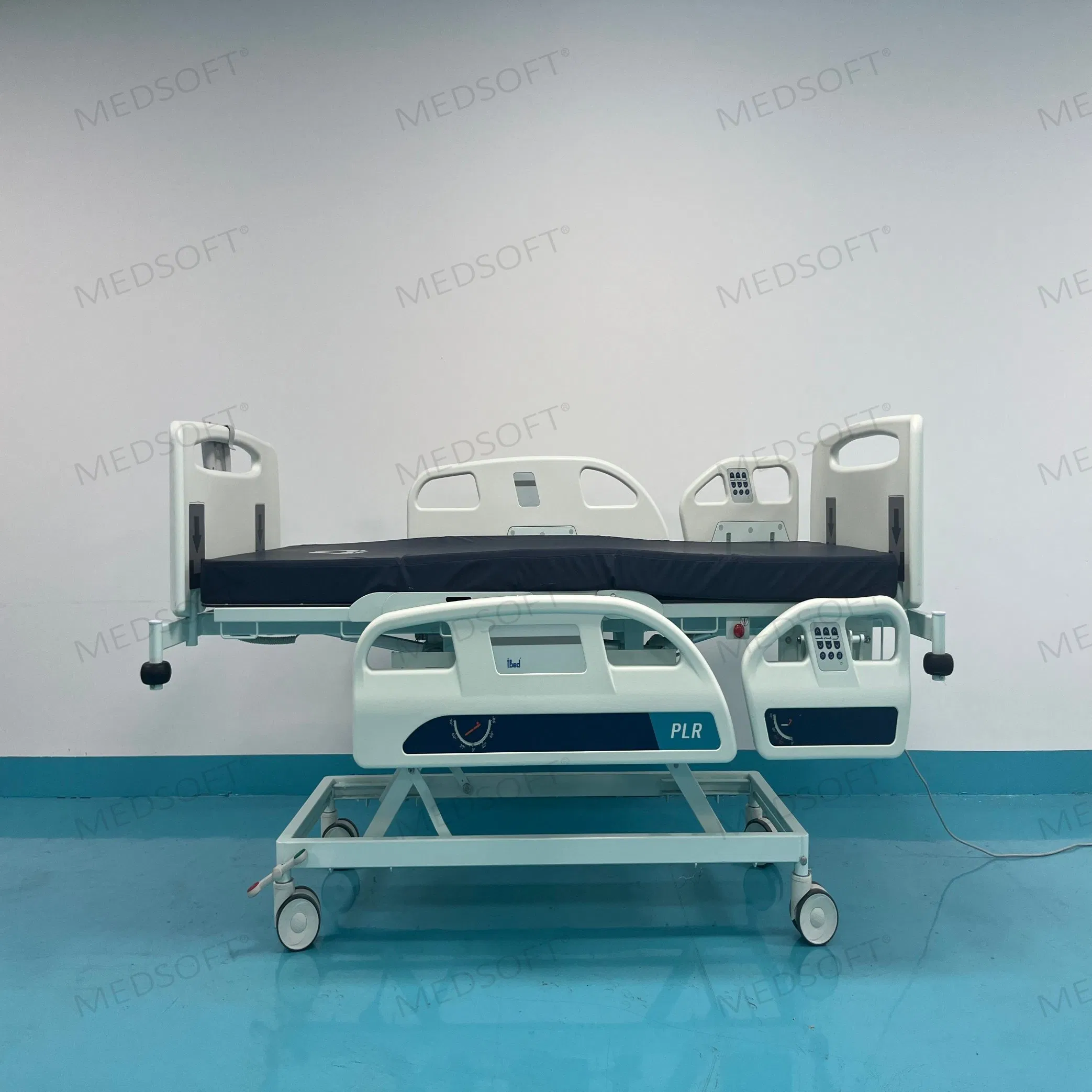

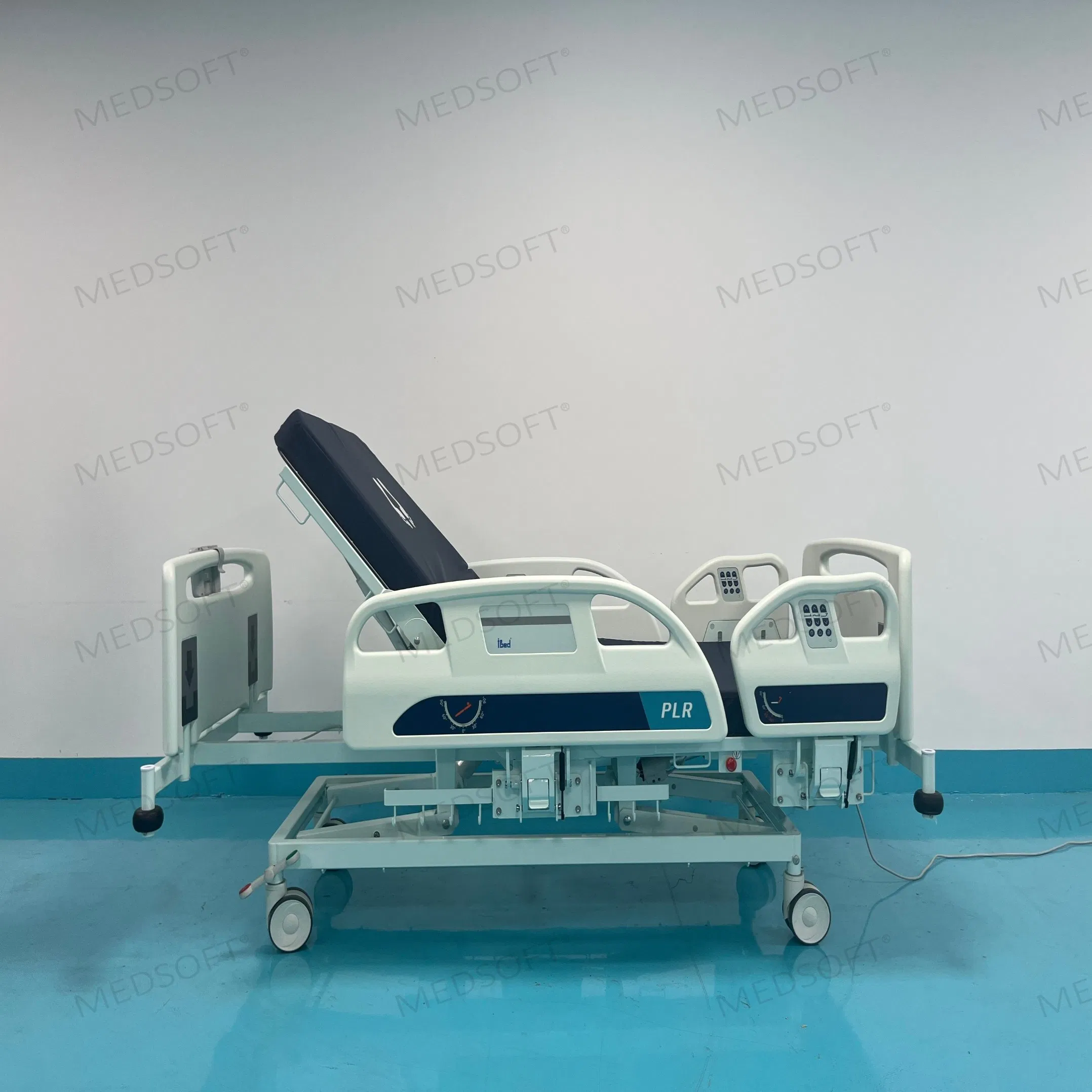

iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
1 / 5
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System
iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System

iBed PLR 3 Pro Hospital Electric Medical Bed with Master Brake System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Model NO. iBed PLR 3 Pro Using Ambient Hospital
Functions Five-function Certification CE, ISO13485
Condition New Dimensions 2.35m * 1.15m * 0.78m
Controller LCD / Touch Screen Castor Silent Casters
Transport Package Carton Production Capacity 12000 PCS/Year
Hospital Electric Medical Bed Overview
Electric Medical Bed Detail

Product Description

Bed Specifications

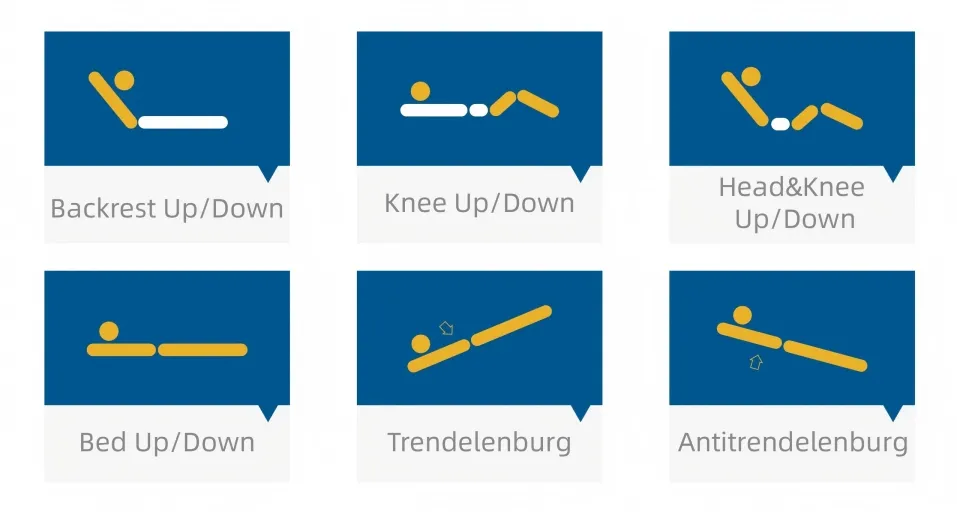

Basic Functions
  • Electric backrest Up/Down
  • Electric Knee Up/Down
  • Electric Bed Up/Down
  • Electric Trendelenburg & Antitrendelenburg

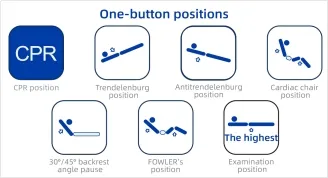

One-button Positions
  • Cardiac chair position
  • Trendelenburg / Antitrendelenburg
  • CPR position
  • Examination & Fowler Position

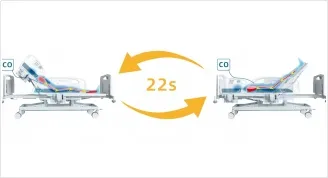

PLR Position

Standard PLR Position
Achieved in 22 seconds for fluid responsive assessments.

HOB Angle Check

HOB Angle Monitoring
Checks back-board angle (30-45°) with voice broadcast alerts.

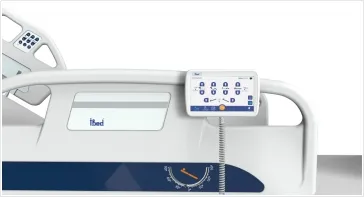

Touch Screen

7-inch Touch Screen
User-friendly operation supporting English & Chinese.

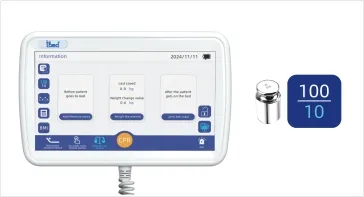

Weighing System

Precision Weighing
0.01Kg accuracy with trend charts for weight change monitoring.

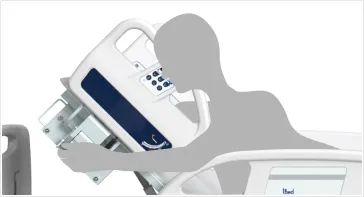

Safety Features

Fall Prevention
High-strength structure and gravity-locked guardrails.

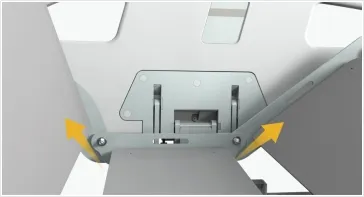

Auto-Rollback

Auto-Rollback
Reduces patient displacement and shear force during adjustment.

Quality Control & Accessories

  • Linak Motor: From Denmark, ensuring durable stability (UL/ROHS/EN).
  • Manual CPR: Dual-sided levers with damping for controlled descent.
  • Bed Extension: Integrated extension for varying heights (Optional).
  • Central Locking: Four-wheel linkage lock control system.
  • Epoxy Painting: Anti-bacterial, resists 50kg impact.
  • Battery Backup: Supports up to 130 movements without bearing.

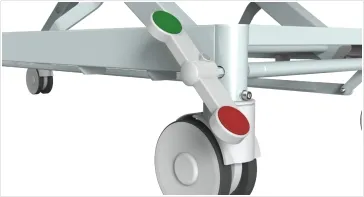

Locking System
Parameter Dimension / Detail
Overall Size2200 * 1035 * (415-785) mm
Mattress Platform2000 * 811 mm
Safe Working Load230 kg
Head Up/Down0-70°
Knee Up/Down0-45°
Trendelenburg0-16°
Linear Motors5 pcs

Frequently Asked Questions

Can I get a sample?
Yes, samples are available upon request.
Can I use my own logo or design on the product?
Yes, we support customization for logos and designs.
Is there a factory for these products?
Yes, we operate a professional manufacturing facility. Visitors are welcome to tour the factory.
What is the production capacity?
Our facility has a production capacity equivalent to 1,000 beds per month.
What is the delivery timeline?
Products currently in stock are typically shipped within 7 days.
What quality standards are followed?
Our beds meet CE, ISO13485, and IEC60601 safety standards.
