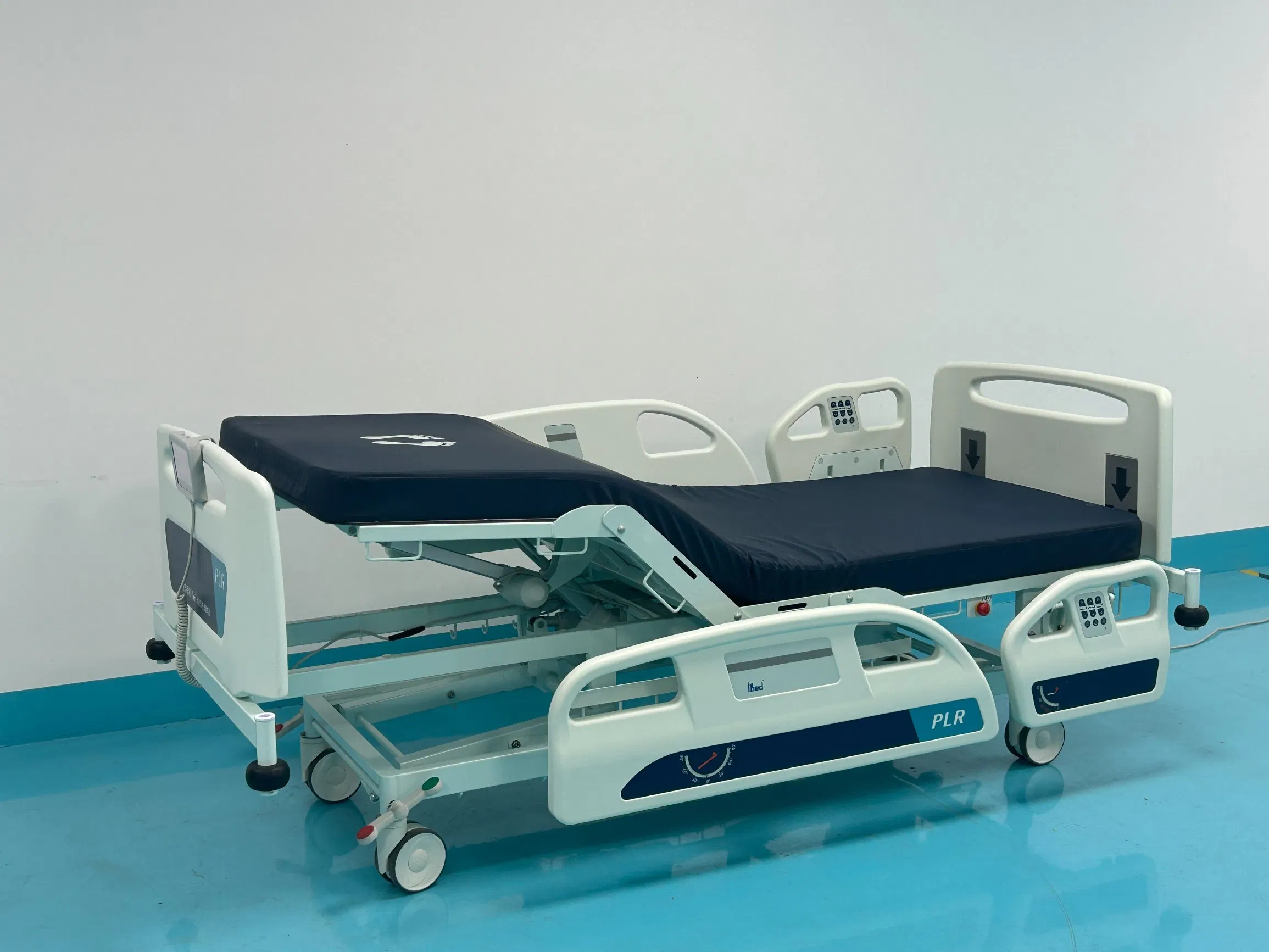

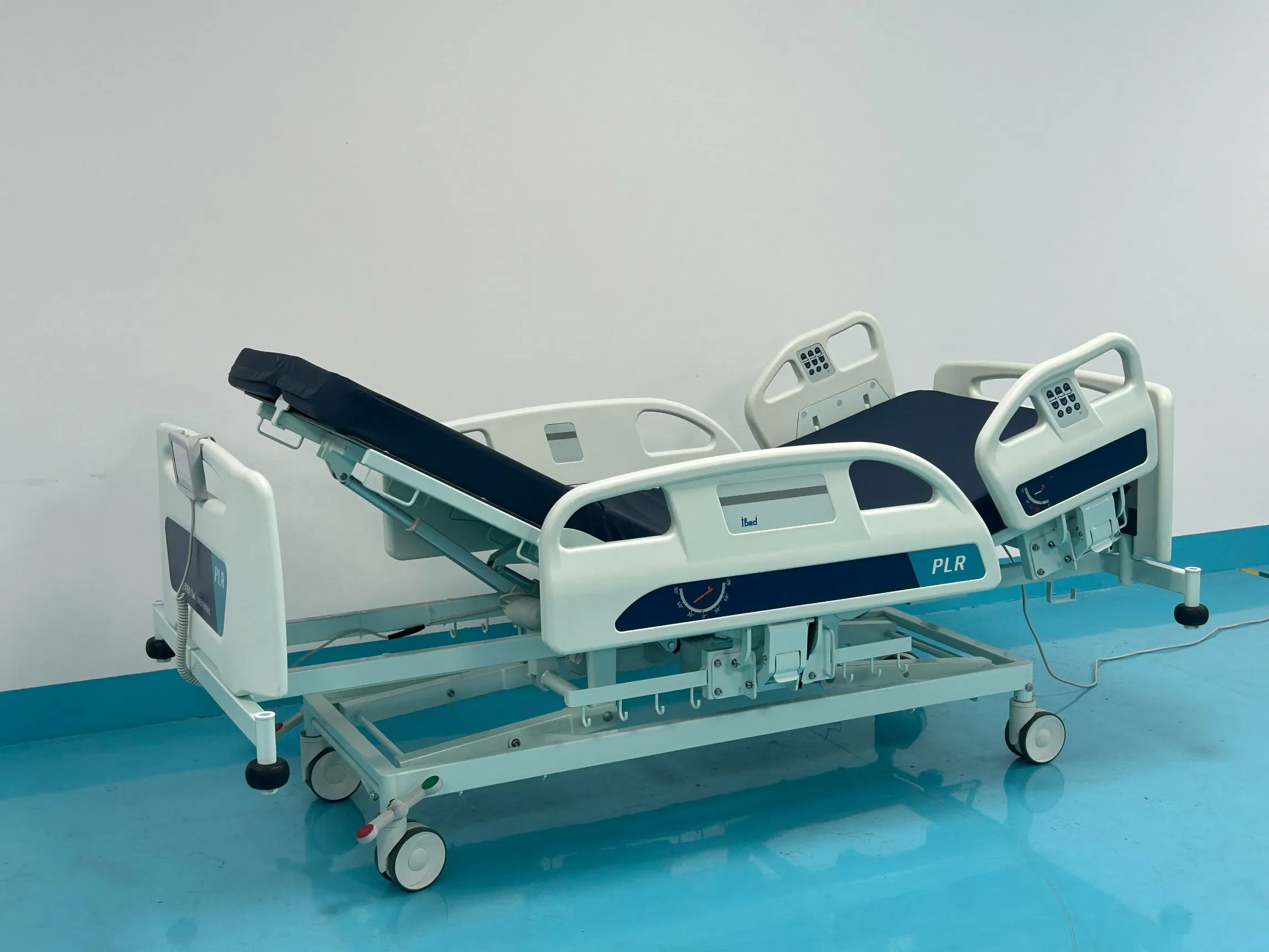

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

1 / 5

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

iBed PLR 3 Pro Weighing Scale Integrated Hospital Bed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	iBed PLR 3 Pro	Numbers of Function	Five-function
Using Ambient	Hospital	Condition	New
Certification	CE, ISO13485	Trademark	MEDSOFT
Overall size	22001035(415-785)mm	Safe Working Load	230kg
Controller	7-inch LCD Touch Screen	Castor	Silent Casters / Central Locking

Product Overview

iBed PLR 3 Pro Overview

Integrated Hospital Bed

iBed PLR 3 Pro Details

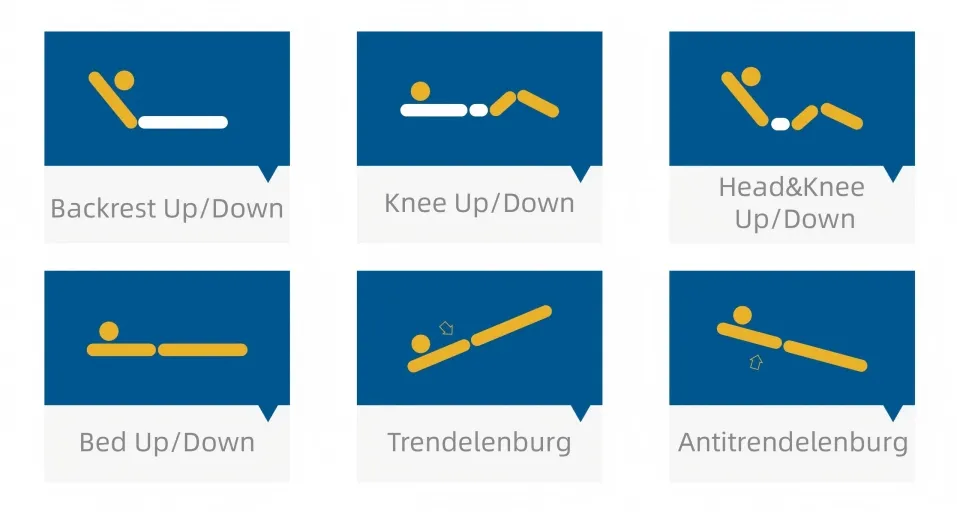

⚙️Basic Functions:

Electric Backrest Up/Down
Electric Knee Up/Down
Electric Backrest & Knee Up/Down
Electric Bed Height Up/Down
Electric Trendelenburg & Anti-trendelenburg

Basic Functions

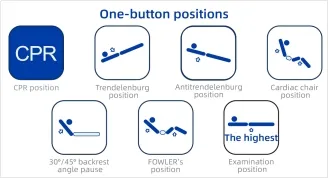

One-button positions

🔘One-button Control Positions:

One-Button Cardiac Chair Position
One-Button Trendelenburg / Antitrendelenburg
One-Button Semi-recumbent / Fowler Position
One-Button Examination Position
One-Button CPR Position

Advanced Integrated Features

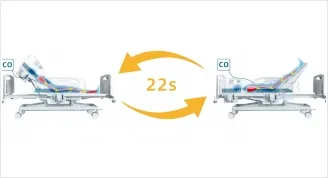

PLR Position

One-button standard PLR position (22 seconds)

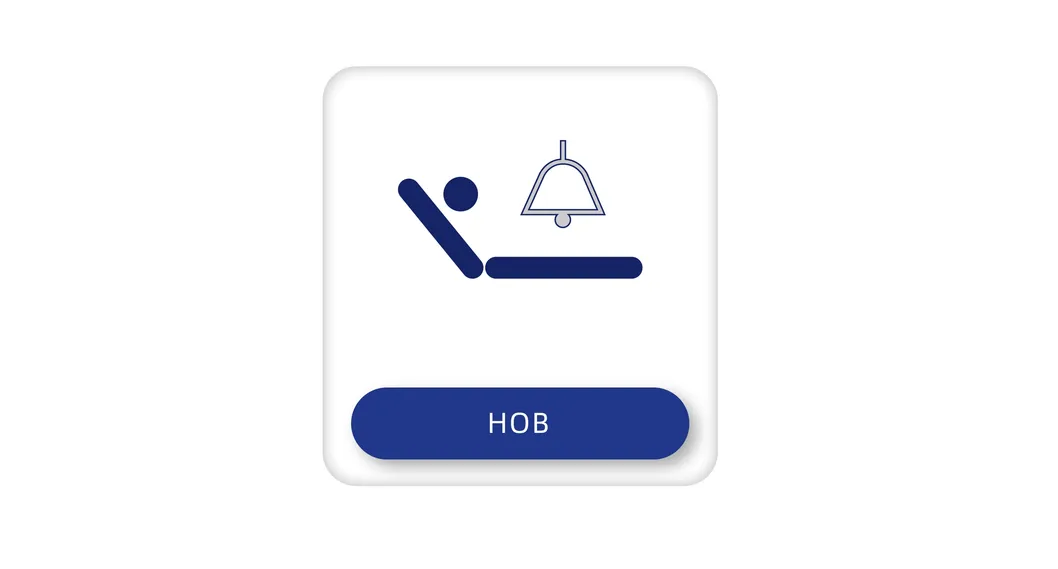

HOB Monitoring

HOB Angle Monitoring (30-45°) with Voice Broadcast

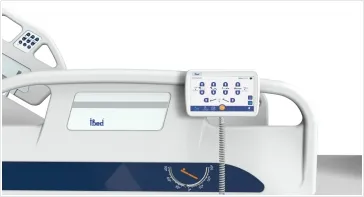

Touch Screen

7-inch Multilingual Touch Screen Control

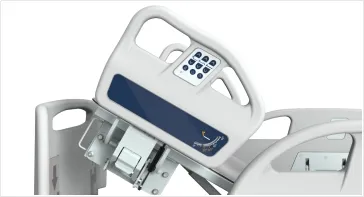

Built-in Controller

Built-in Side Rail Controller & Angle Indicator

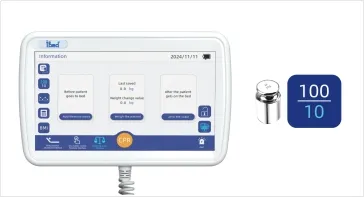

Weighing System

High Accuracy Weighing System (0.01Kg)

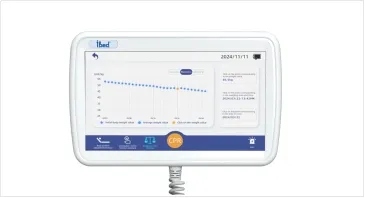

Weight Trend Chart

Data Storage & Weight Trend Charts

Safety & Quality Control

🛡️Patient Safety Systems:

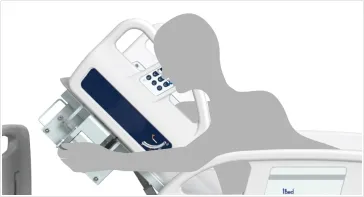

Preventing Falls: High-strength structure with gravity-locked guardrails.

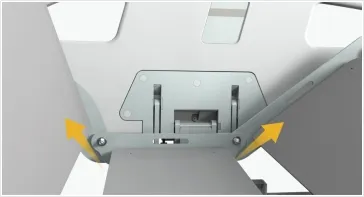

Auto-Rollback: Reduces displacement and shear force during adjustment.

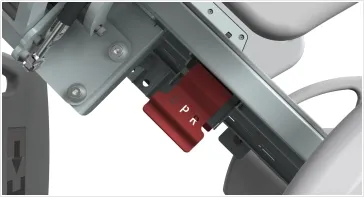

Manual CPR: Dual-sided levers with damping for slow, safe descent.
Patient Restraint: 12 fixation sites for chest, wrist, and ankle.
Central Locking: Four-wheel linkage lock control system.

Safety Guardrail

Auto-Rollback

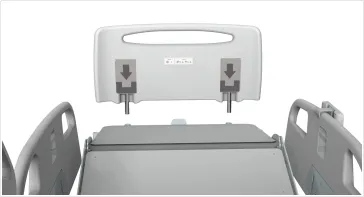

Headboard Removal

Manual CPR Lever

Technical Parameters

Parameter	Specification
Mattress Platform	2000 * 811 mm
Safe Working Load	230 kg
Head Up/Down	0 - 70°
Knee Up/Down	0 - 45°
Trendelenburg / Antitrendelenburg	0 - 16°
Angle Indicator Range	0 - 90°
Linear Motors	5 pcs (Linak, Denmark)
Castors	5" Central Locking (4 pcs)
Bed Extension (Optional)	200 mm
X-Ray Translucent Platform	Available (Optional)

Production Excellence

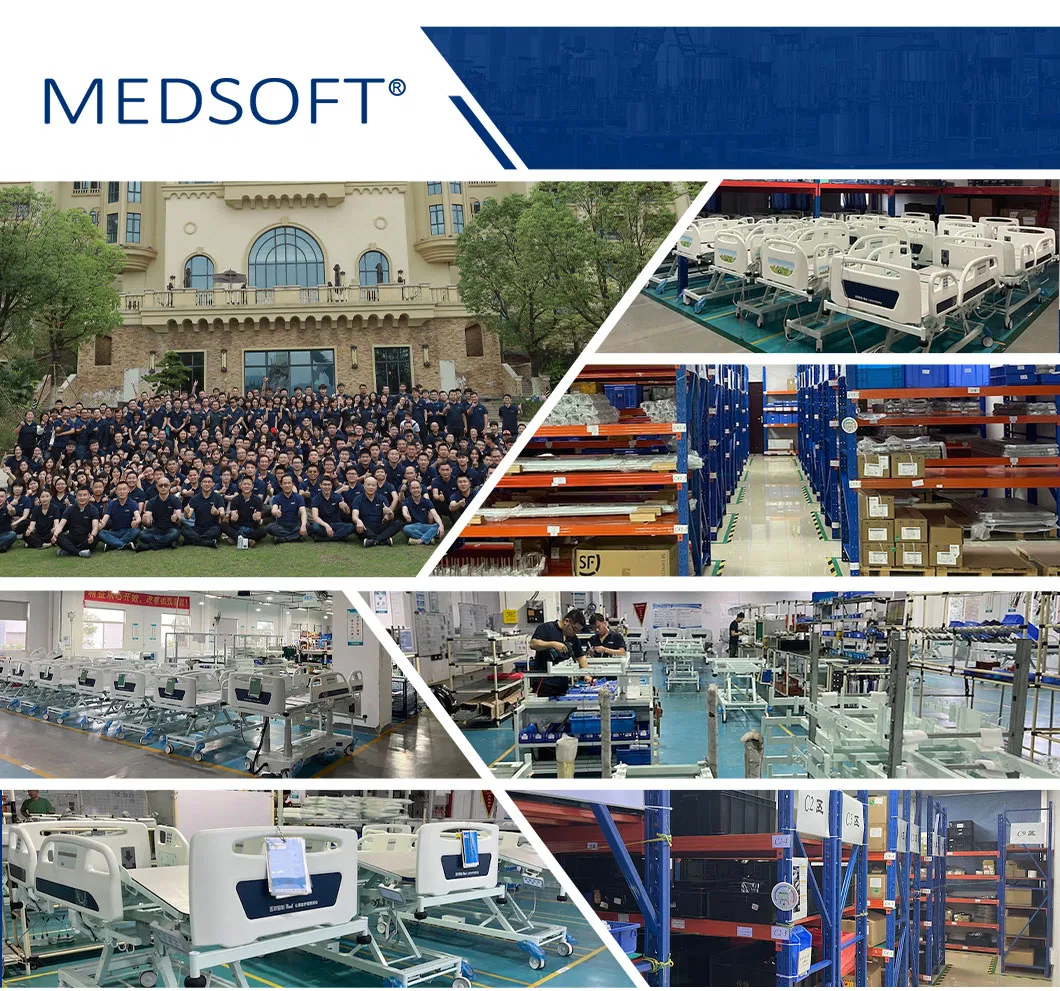

Production Process

Quality Control

Manufacturing

Facility

Testing

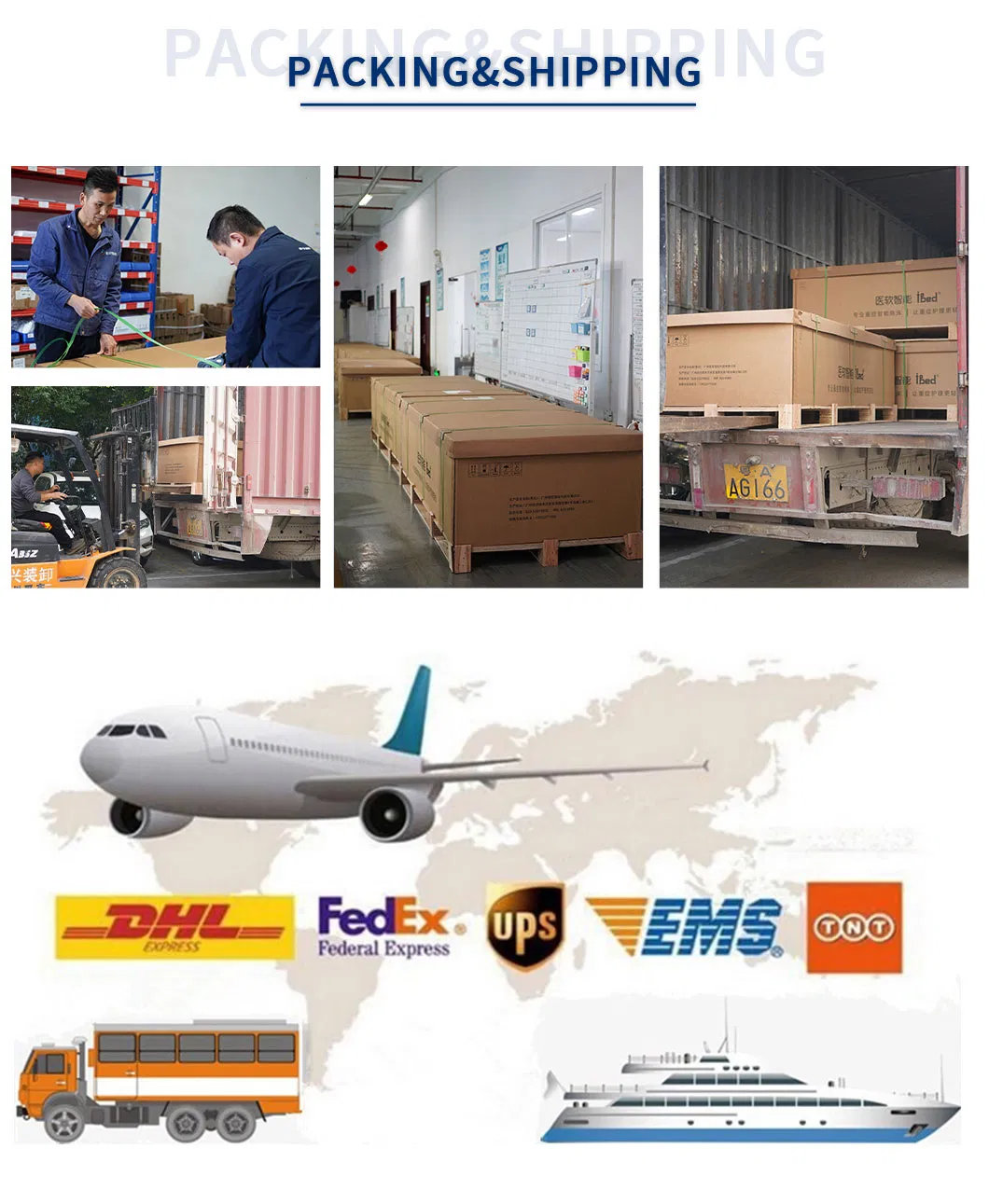

Packaging

Frequently Asked Questions

Q1. Can I get a sample of the iBed PLR 3 Pro?

Yes, samples are available for evaluation.

Q2. Can I use my own logo or design on the bed?

Yes, OEM and ODM services are available to customize the logo or design according to your requirements.

Q3. What is the weighing accuracy of the integrated scale?

The weighing system features high precision with 0.01Kg accuracy and can store up to 30 measurements.

Q4. How does the HOB monitoring system work?

The bed regularly checks if the back-board angle is between 30-45° and provides voice broadcasts to remind medical staff of the status.

Q5. What are the delivery times and production capacity?

Our production capacity is approximately 1,000 units per month. In-stock products are typically shipped within 7 days.

Q6. Does the bed support X-ray imaging?

The bed features an optional X-ray translucent mattress platform, specifically designed to fit C-arm equipment.
