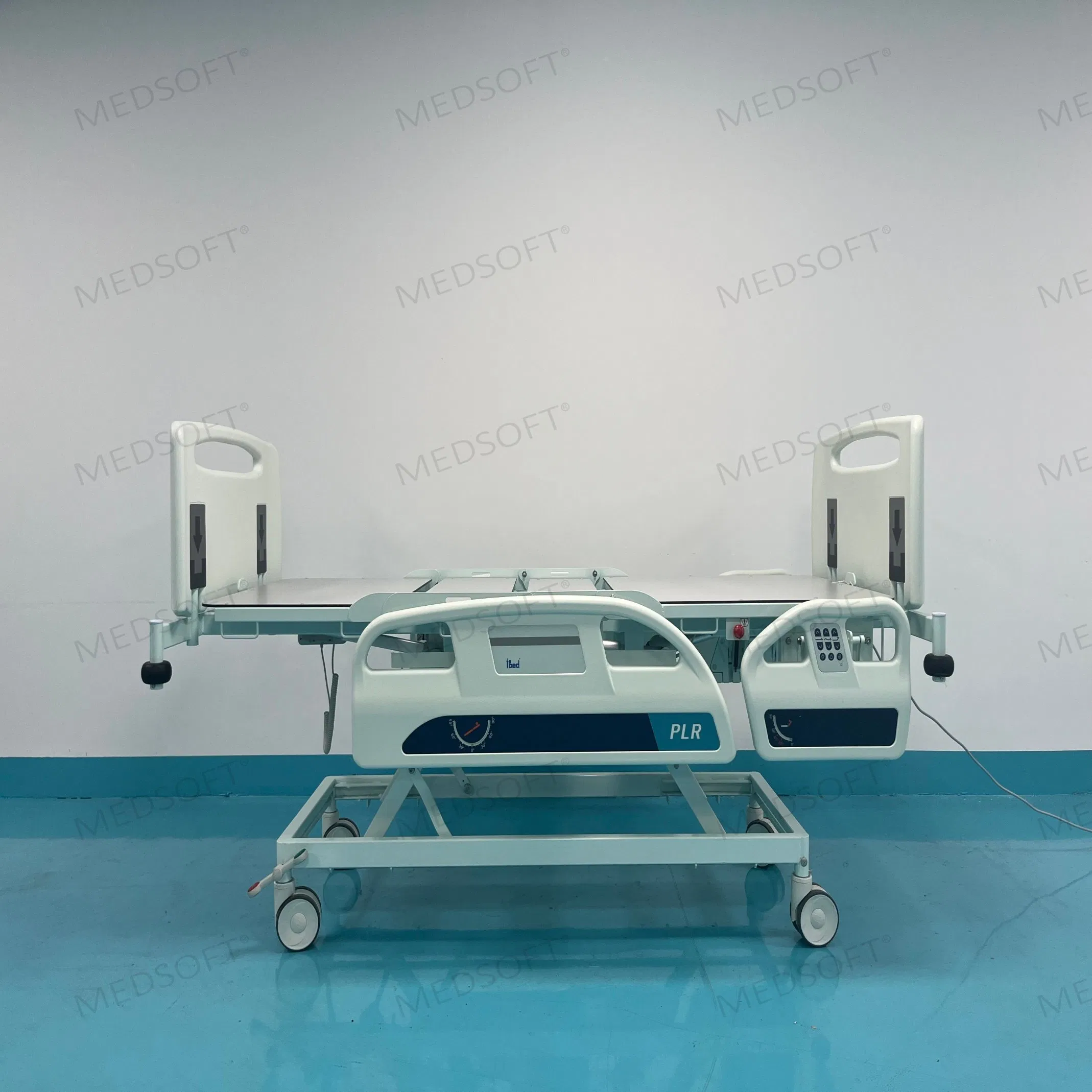

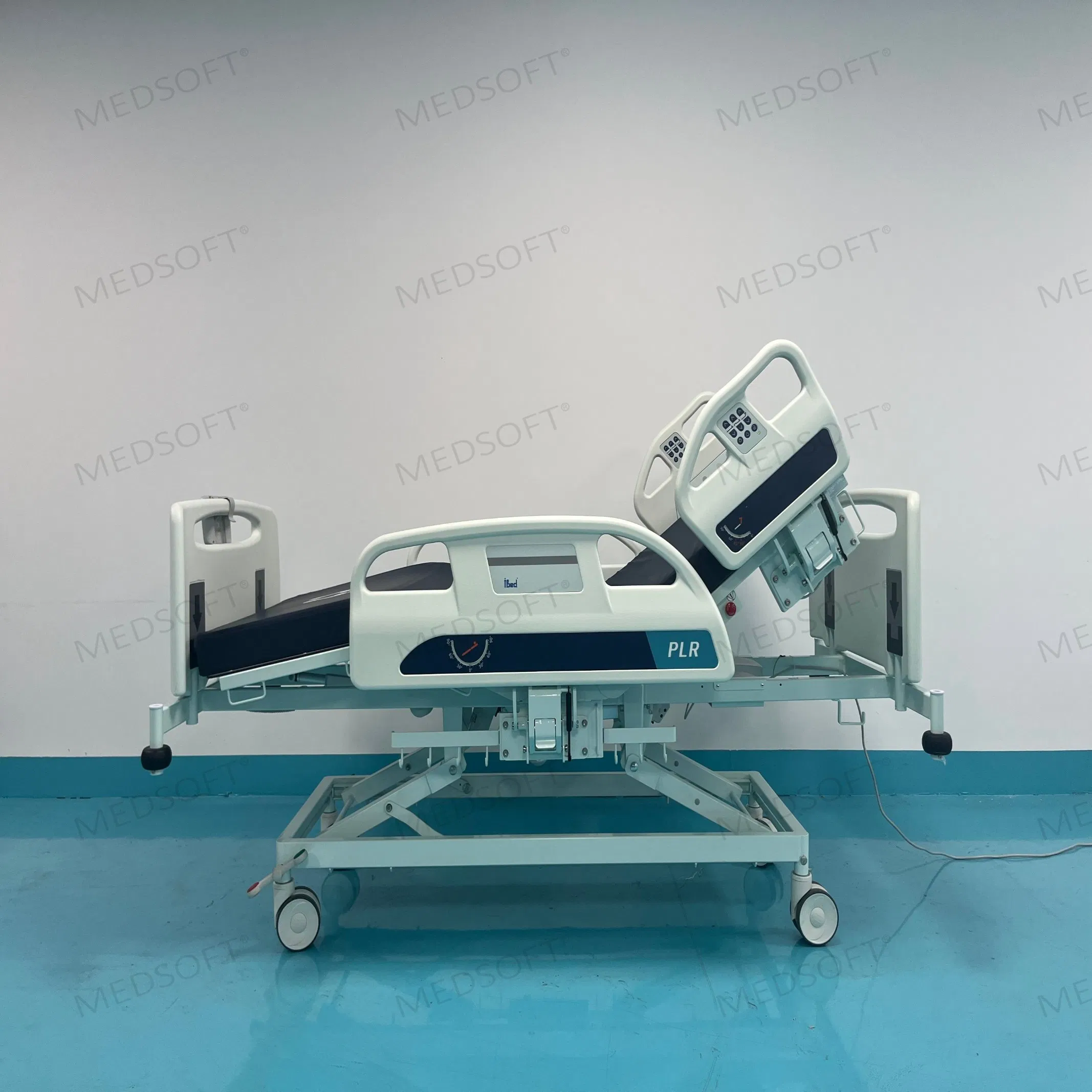

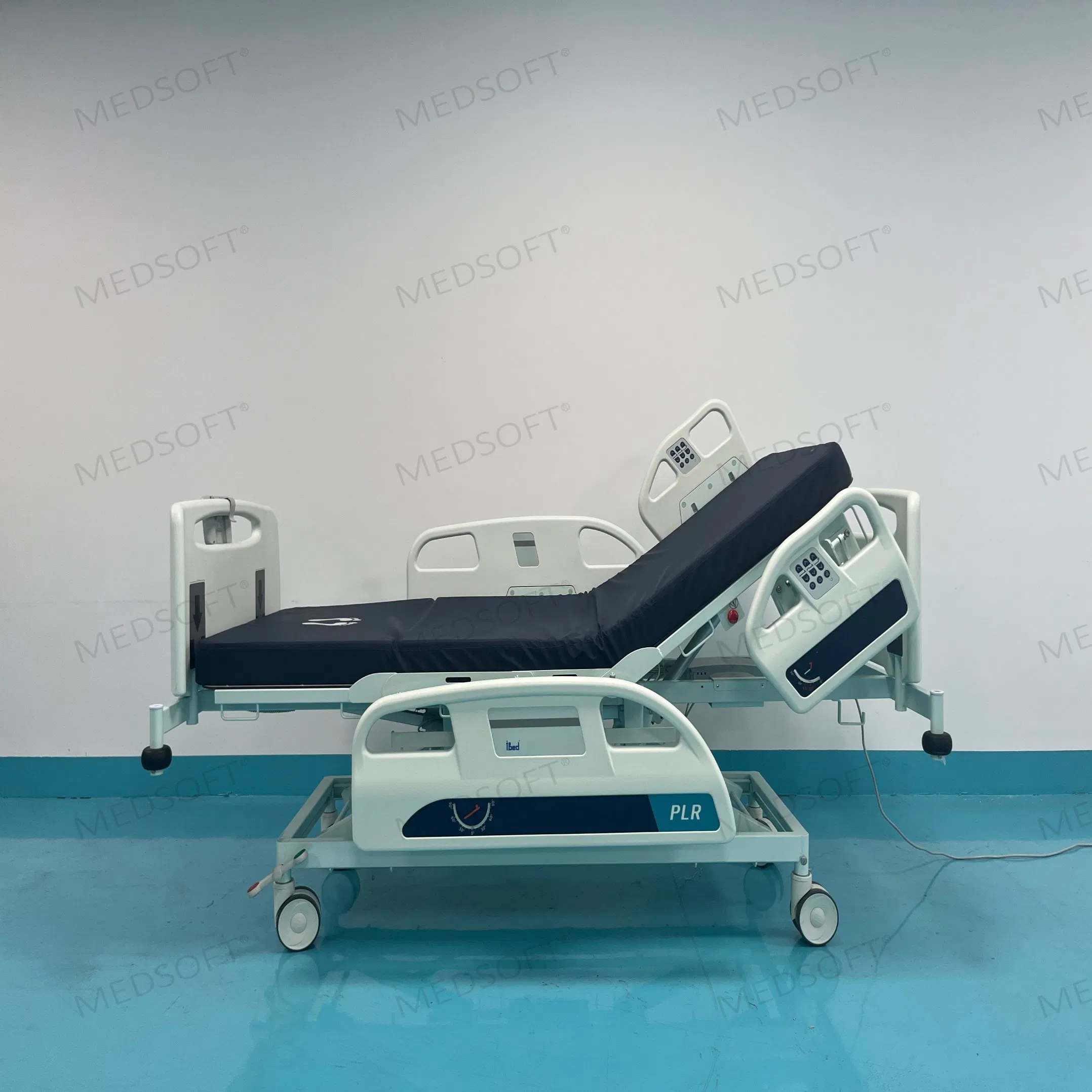

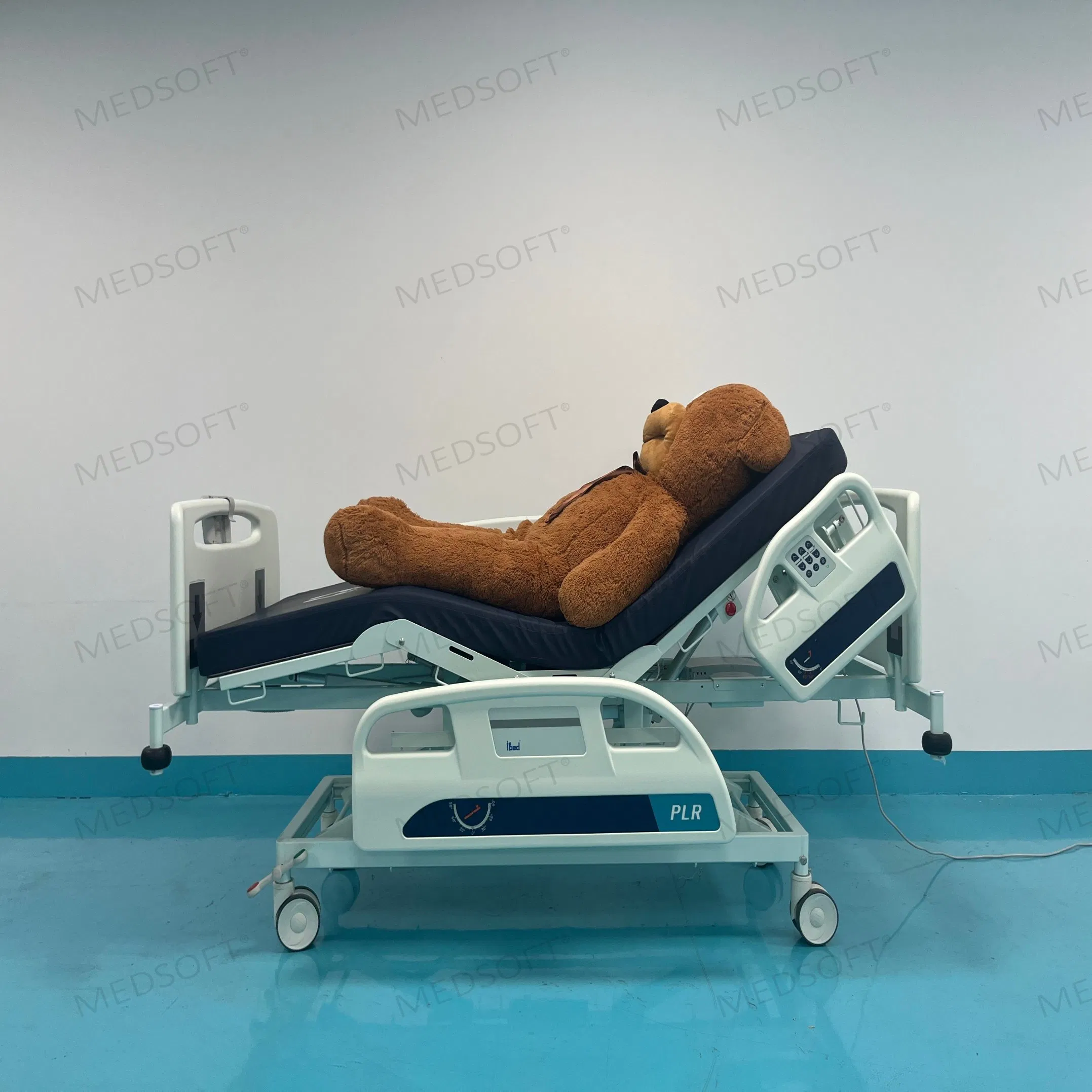

iBed PLR 3 Pro Electric Powered Hospital Bed for ICU

1 / 5

iBed PLR 3 Pro Electric Powered Hospital Bed for ICU

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Numbers of Function

Five-function

Certification

CE, ISO13485

Condition

New

Length* Width *Height

2.35m*1.15m*0.78m

Controller

LCD / Touch Screen

Castor

Silent Casters

HS Code

94029000

Production Capacity

12,000 PCS/Year

💡 Key Product Functions

⚡

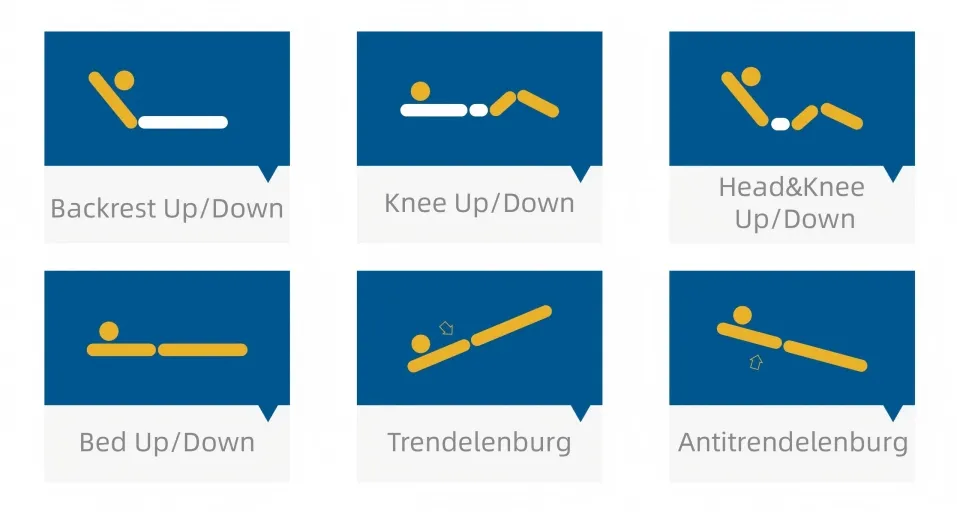

Five Basic Electric Functions

Electric backrest Up/Down, Electric Knee Up/Down, Backrest & Knee combination, Bed height adjustment, Trendelenburg and Antitrendelenburg positions.

🔘

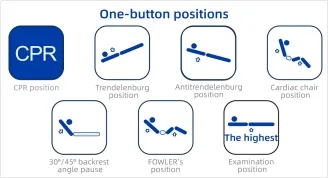

One-Button Control Positions

Quick access to Cardiac chair, Trendelenburg, Antitrendelenburg, Semi-recumbent, Fowler, Examination, and CPR positions.

📏

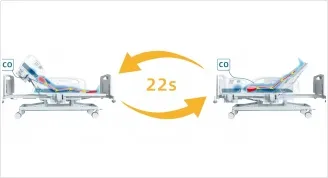

Standard PLR Position

One-button standard Passive Leg Raise (PLR) position achieved in 22 seconds for easy fluid responsive assessments.

⚖️

Advanced Weighing System

Built-in system with 0.01Kg accuracy. Stores up to 30 measurements and displays trend charts for caregiver monitoring.

🛡️ Safety and Nursing Efficiency

HOB Angle Alert: Regularly checks back-board angle (30-45°) and alerts staff via voice broadcast.

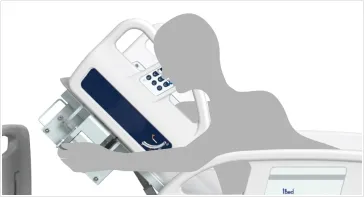

Fall Prevention: High-strength support structure with guardrails that cannot be unlocked by patient force.
Auto-Rollback: Reduces displacement and shear force when adjusting positions to protect patient skin.
Dual-sided Manual CPR: Levers equipped with damping devices for a slow, safe descent of the backrest.
Night Light: Under-bed lighting helps patients navigate safely at night.
Patient Restraint: 12 fixation sites for chest, wrist, and ankle support.

📊 Technical Parameters

Parameter	Specification
Overall size (LWH)	22001035(415-785) mm
Mattress Platform	2000*811 mm
Safe Working Load	230 kg
Head Up/Down	0-70°
Knee Up/Down	0-45°

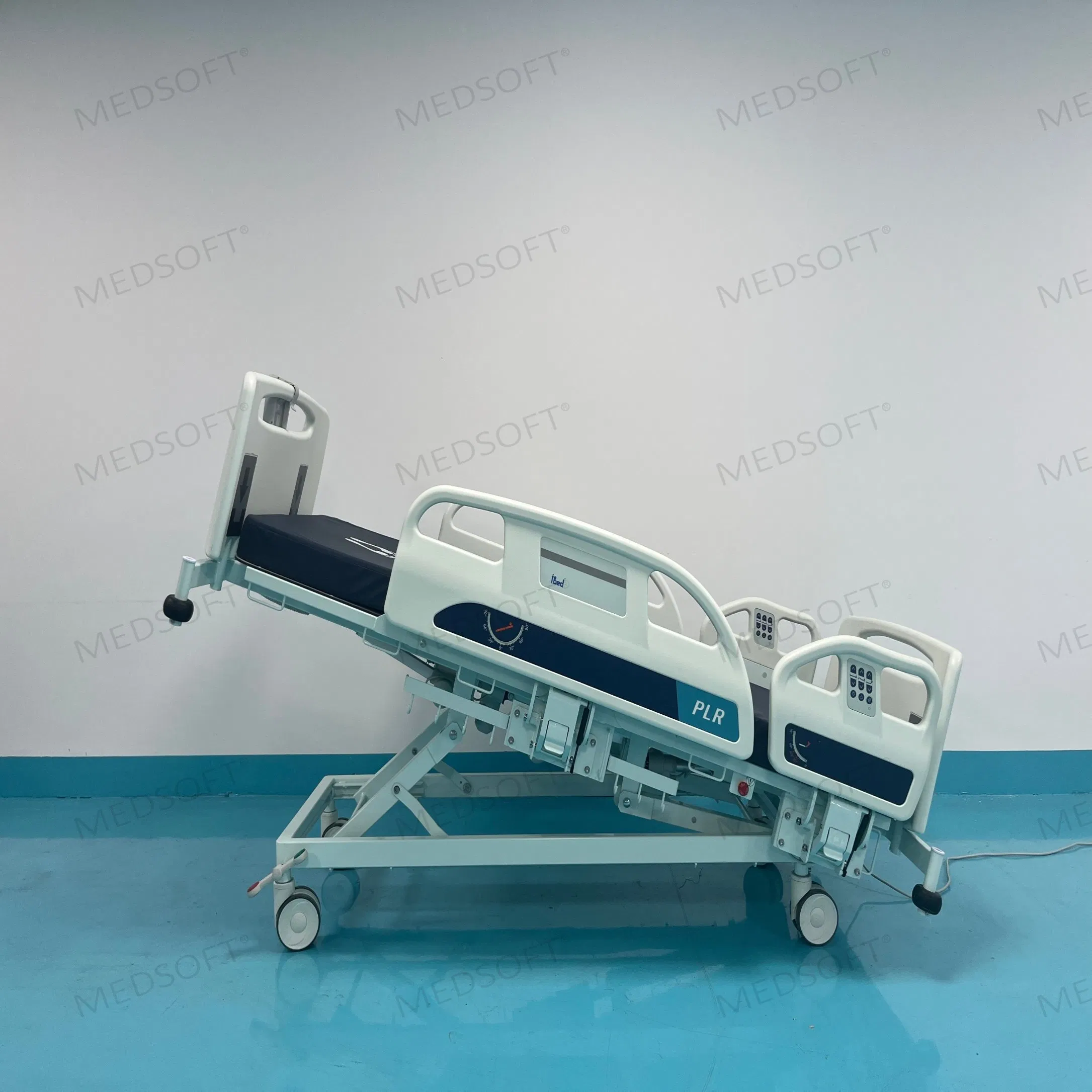

Trendelenburg / Antitrendelenburg	0-16°
Linear Motors	5 pcs
Castors	5" Central Locking (4pcs)
Bed Extension (Optional)	200 mm

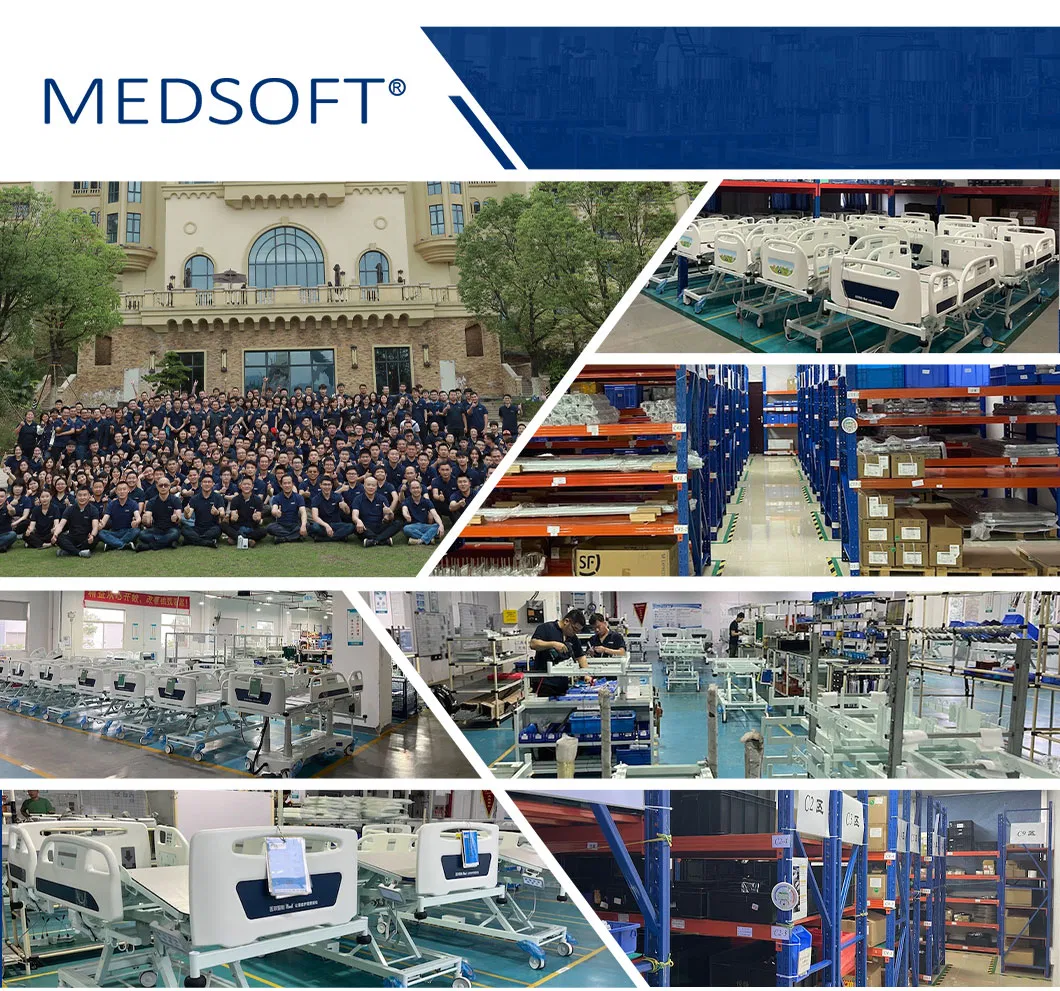

🏅 Premium Quality Control

High-End Motors: Ensures durable stability with international safety standards.

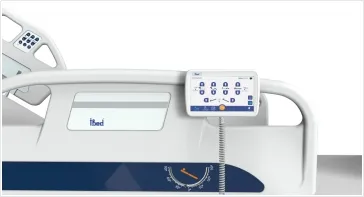

Smart Interface: 7-inch touch screen replacing traditional buttons; supports English and Chinese.
Durability: Brake system tested for 10,000 uninterrupted uses.
Anti-Bacterial Coating: Epoxy painting process with anti-bacterial testing; impact resistant up to 50kg.
Structural Integrity: 360° full smooth welding and high-quality raw materials for ICU environments.

❓ Frequently Asked Questions

Q1. Are samples available for this medical bed? Yes, samples are available for quality evaluation and testing.

Q2. Is OEM or ODM customization supported? Yes, we support using your own logo or design on the product to meet your specific requirements.

Q3. What is your manufacturing capacity for this model? Our current production capacity is approximately 1,000 hospital beds per month.

Q4. How long is the typical delivery time? For products in stock, the delivery is typically processed within 7 days.

Q5. Does the bed come with specialized nursing functions like weighing? Yes, it includes a weighing system with 0.01Kg accuracy and historical data storage for patient trend analysis.

Q6. Is the mattress platform compatible with X-ray imaging? The bed features an X-ray Translucent Mattress Platform as an option to facilitate bedside imaging.
