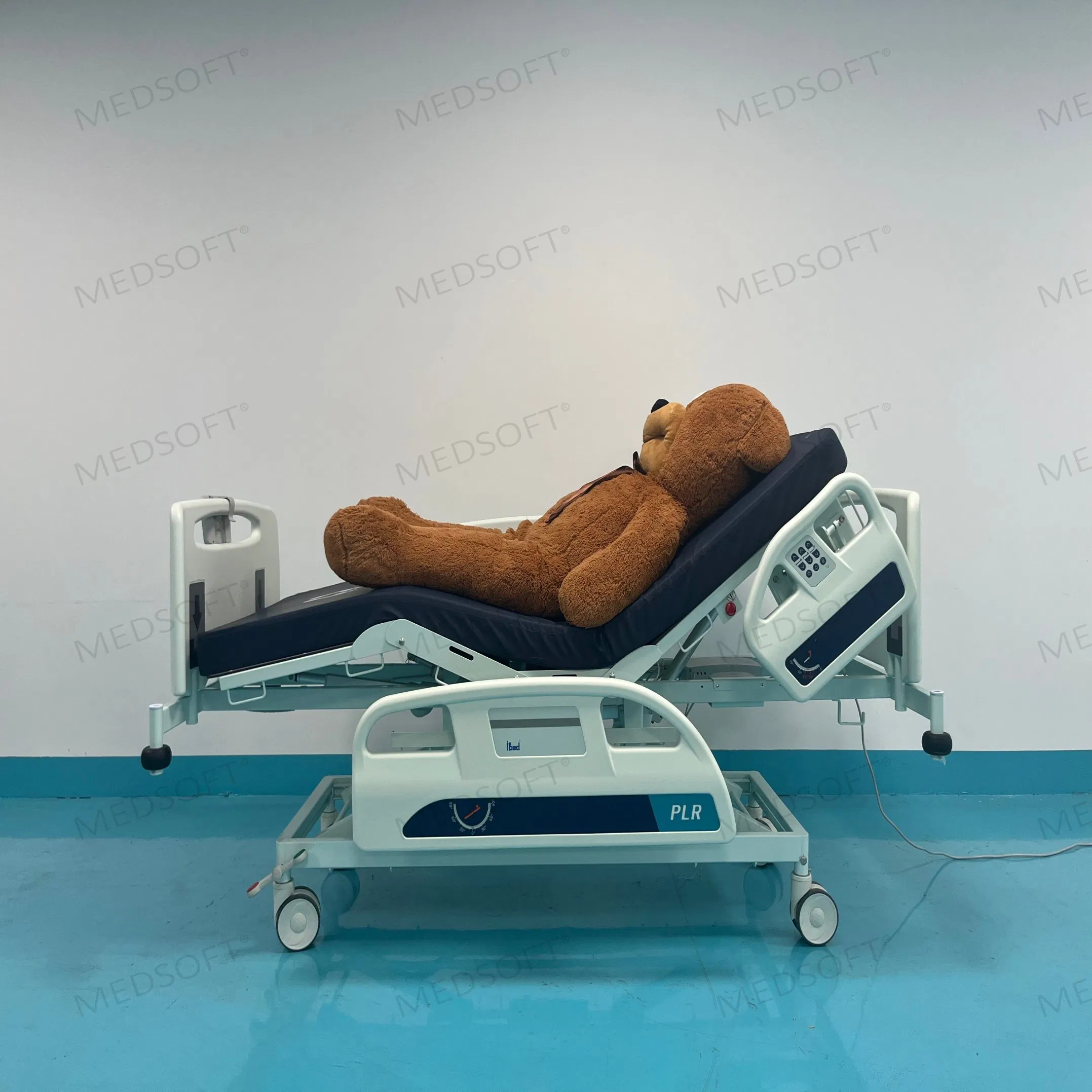

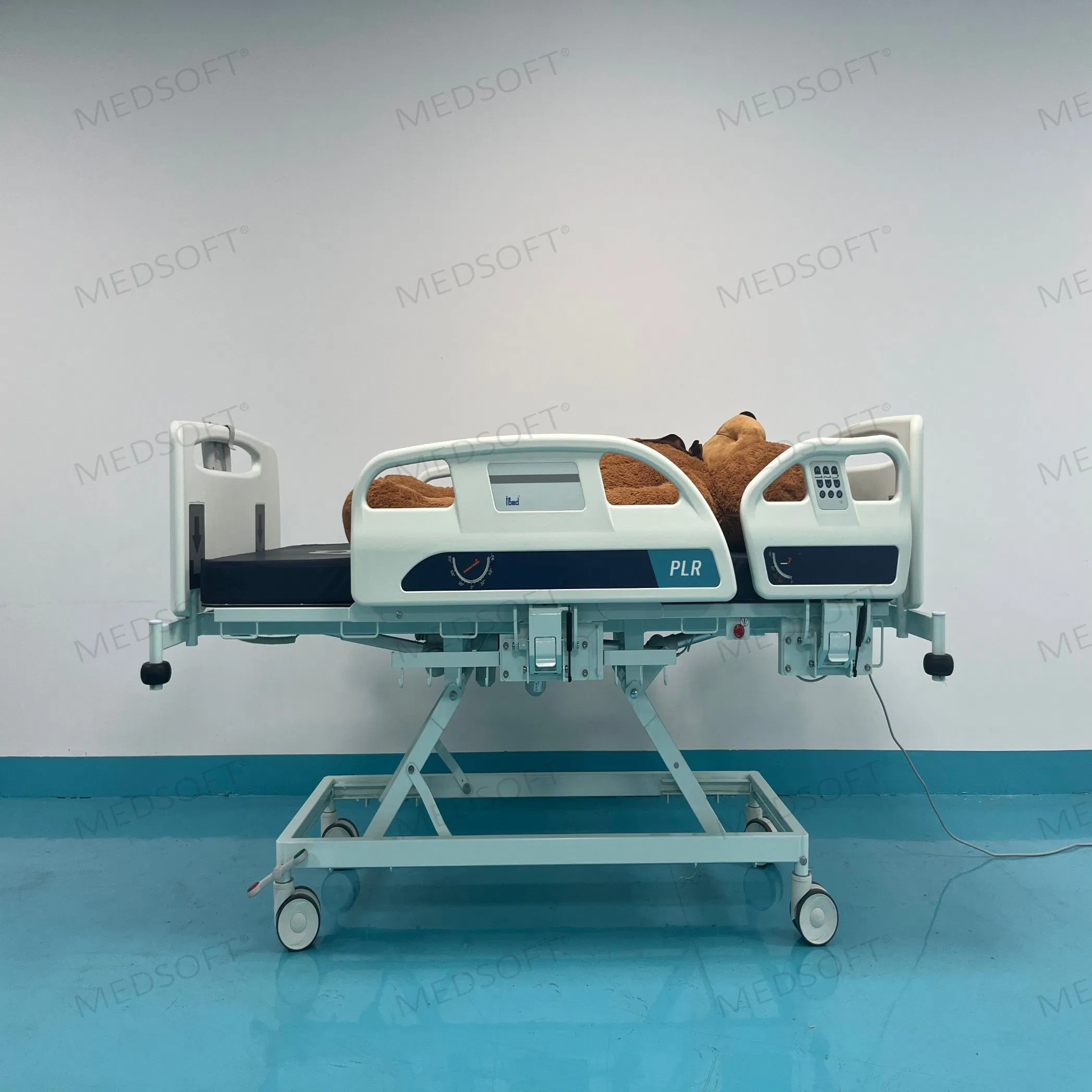

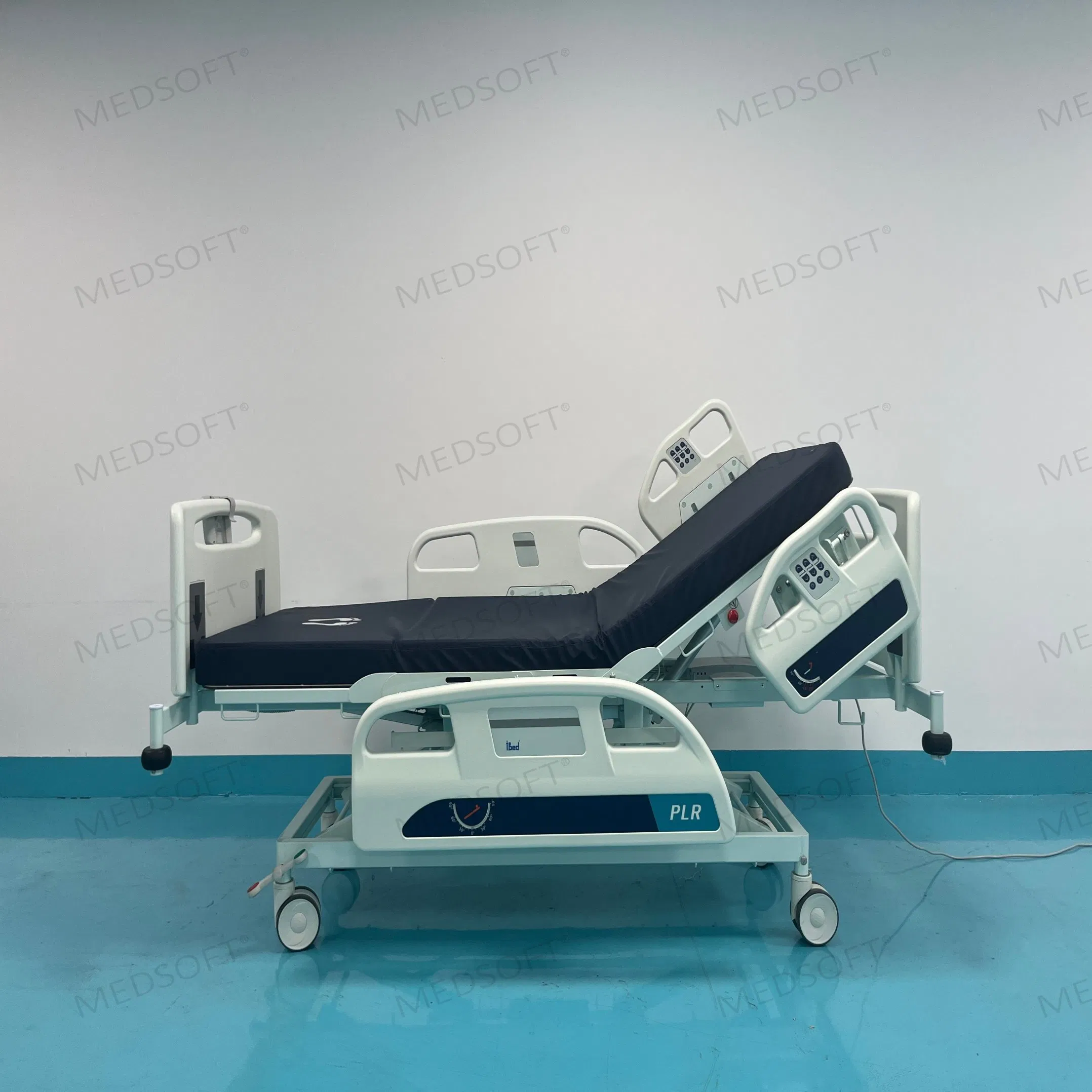

iBed PLR 3 Pro for Passive Leg Raising Test Hospital Medical Bed

1 / 5

iBed PLR 3 Pro for Passive Leg Raising Test Hospital Medical Bed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.iBed PLR 3 Pro

Using AmbientHospital / ICU

Numbers of FunctionFive-function

CertificationCE, ISO13485

Length* Width *Height2.35m * 1.15m * 0.78m

Controller7-inch LCD Touch Screen

Safe Working Load230kg

Production Capacity12,000 PCS/Year

Product Features & Functions

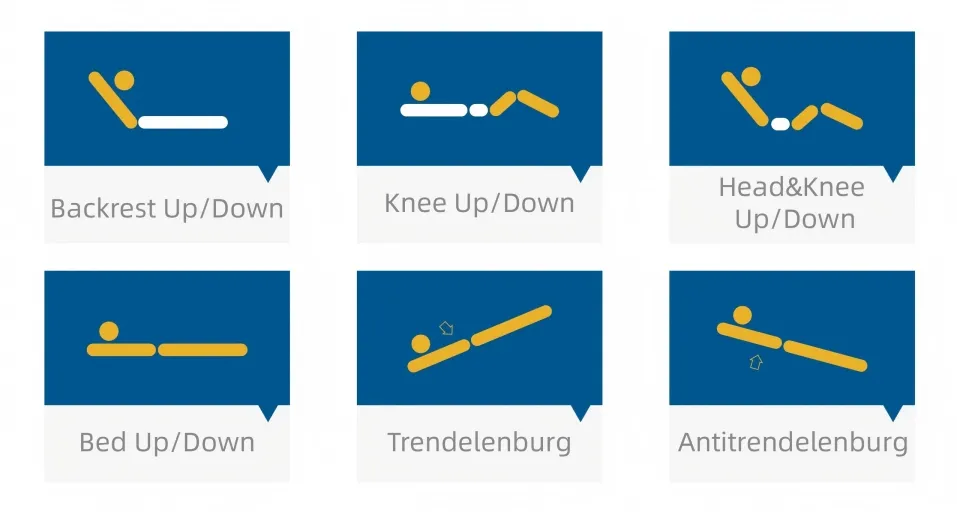

⭐ Basic Functions

Electric Backrest Up/Down
Electric Knee Up/Down
Electric Bed Height Up/Down
Electric Trendelenburg & Antitrendelenburg

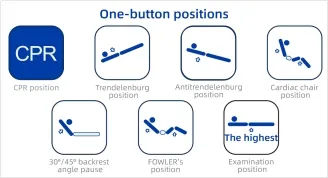

⭐ One-Button Control Positions

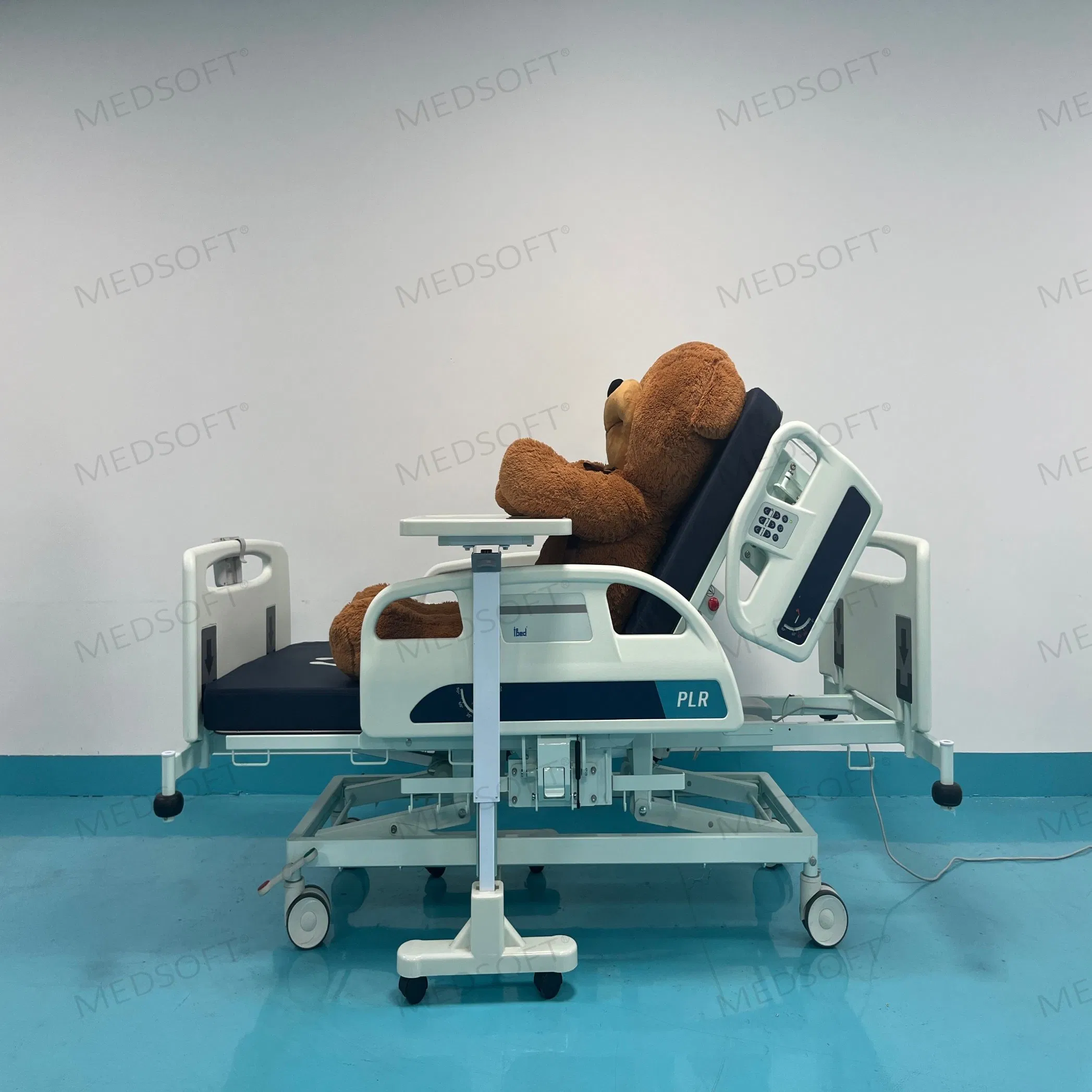

One-Button Cardiac Chair Position
One-Button Semi-recumbent & Fowler Position
One-Button CPR & Examination Position

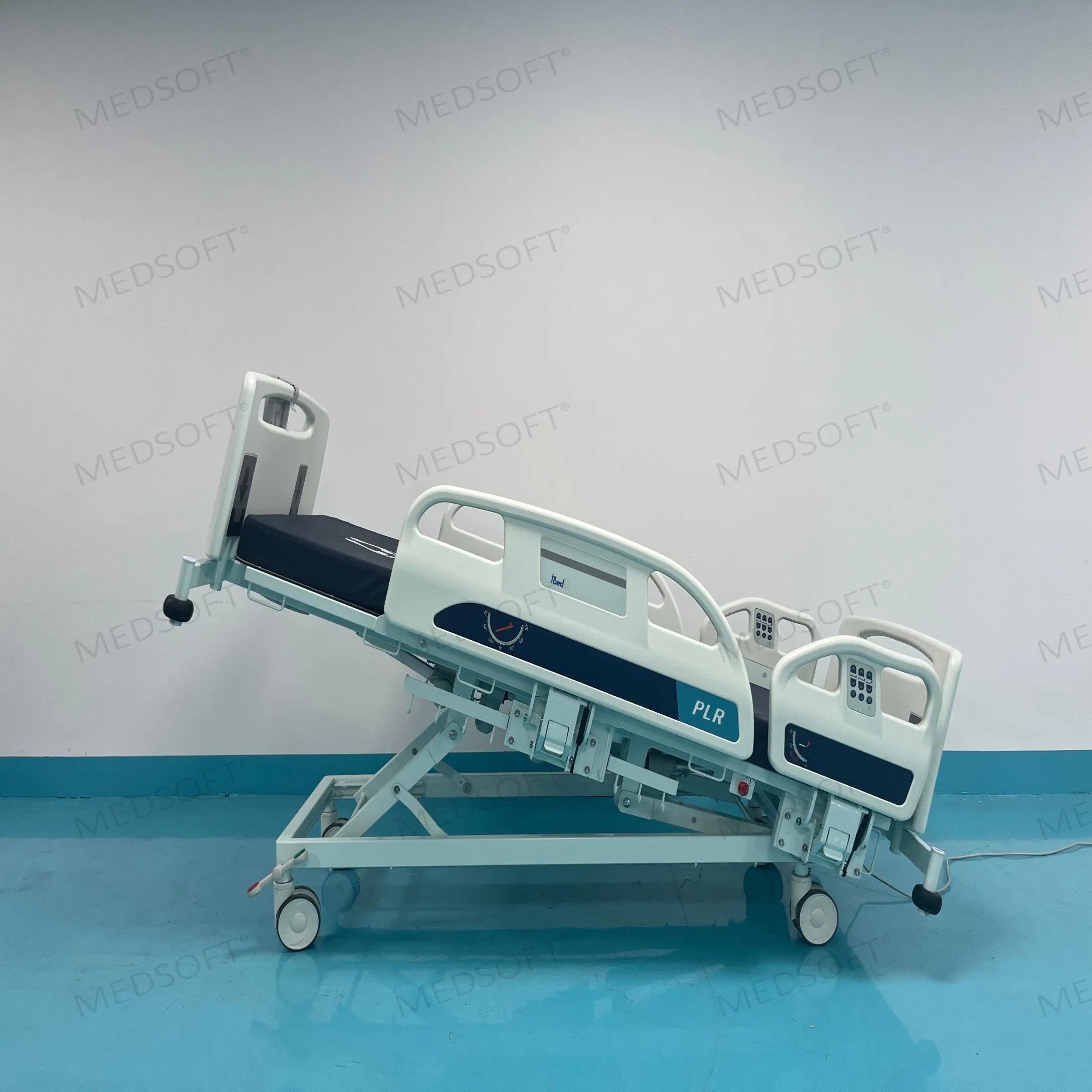

One-Button Passive Leg Raising (PLR) position achieved in 22 seconds

⭐ HOB Angle Monitoring

The bed regularly checks whether the back-board angle is between 30-45°, providing voice broadcast reminders to medical staff to maintain optimal patient positioning.

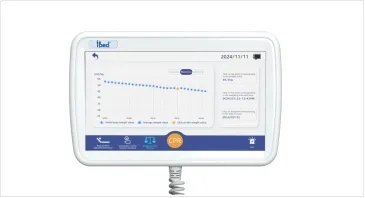

⭐ Intelligent Weighing System

High-accuracy system (0.01Kg) capable of storing up to 30 measurements. Displays trend charts to monitor patient weight changes directly.

⭐ Safety & Quality Control

Auto-Rollback: Reduces patient displacement and shear force.

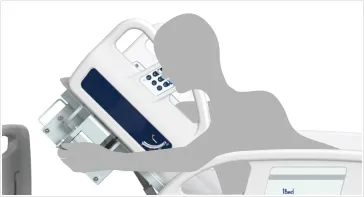

Manual CPR: Dual-sided levers with damping for controlled descent.
Fall Prevention: High-strength structure with gravity-locked guardrails.
Denmark Linak Motor: Ensures durable stability and smooth operation.

Detailed Parameters

Parameter	Dimension/Detail
Overall Size (LWH)	2200 * 1035 * (415-785) mm
Mattress Platform	2000 * 811 mm
Head Up/Down	0 - 70°
Knee Up/Down	0 - 45°
Trendelenburg / Antitrendelenburg	0 - 16°
Linear Motor	5 Pieces (Linak)
Castors	5" Silent Central Locking Casters
Bed Extension (Optional)	Integrated 200mm extension

Clinical Applications

Frequently Asked Questions

What are the primary functions of the iBed PLR 3 Pro?

The bed features 5 electric functions, including backrest up/down, knee up/down, height adjustment, Trendelenburg, and Antitrendelenburg positions.

How does the Passive Leg Raising (PLR) feature work?

The bed supports a one-button standard PLR position that is achieved in just 22 seconds, allowing for quick and easy fluid responsive assessments in critical care.

What is the accuracy of the built-in weighing system?

The integrated weighing system provides 0.01Kg accuracy and can store up to 30 history measurements with trend chart displays.

Is the bed suitable for X-ray examinations?

Yes, the bed can be equipped with an optional X-ray translucent mattress platform and the height range (480mm-850mm) is designed to fit C-arm equipment.

What safety mechanisms are included for emergencies?

It includes dual-sided manual CPR levers with damping for safe backrest descent, an electric one-key CPR button, and an alert system for patient movement monitoring.

Can the bed length be adjusted for taller patients?

Yes, the iBed PLR 3 Pro features an optional integrated bed extension that adds 200mm to the mattress platform length.
