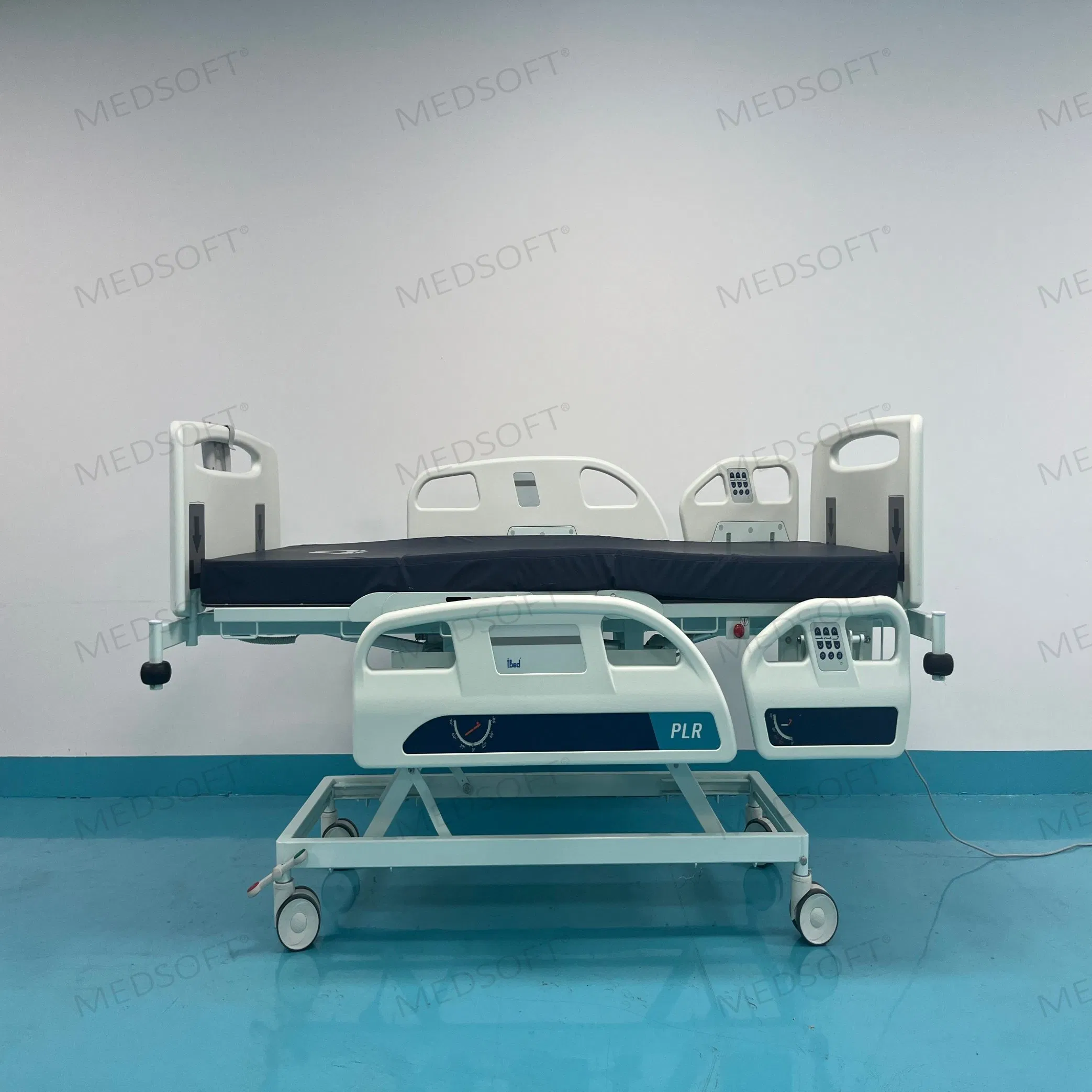

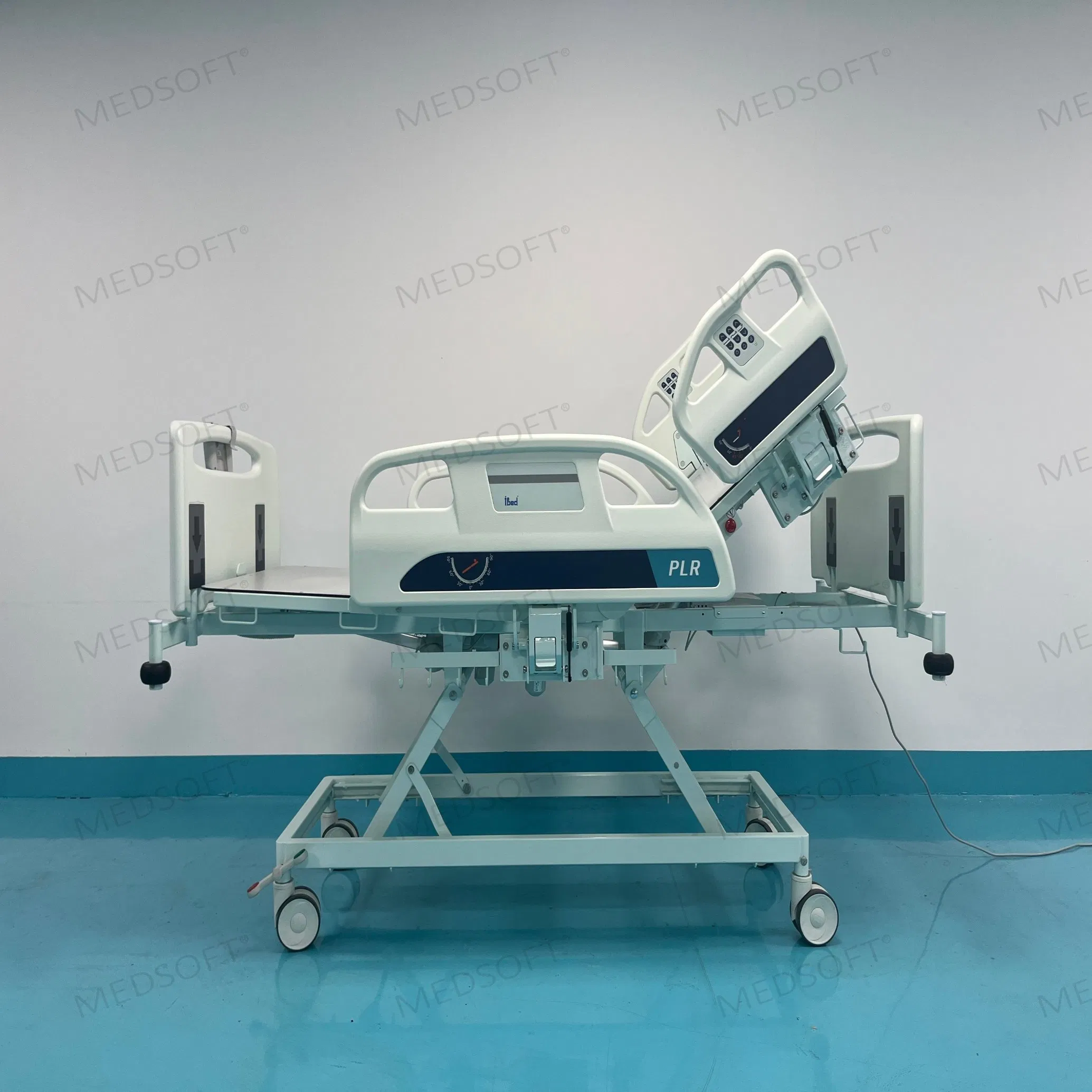

iBed PLR 3 Pro Advanced LCD Control Hospital Bed

1 / 5

iBed PLR 3 Pro Advanced LCD Control Hospital Bed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Function Number

Five-function

Certification

CE, ISO13485

Condition

New

Dimensions

2.35m * 1.15m * 0.78m

Controller

LCD Touch Screen

Castor

Silent Casters

HS Code

94029000

Capacity

12000 PCS/Year

Key Features & Functions

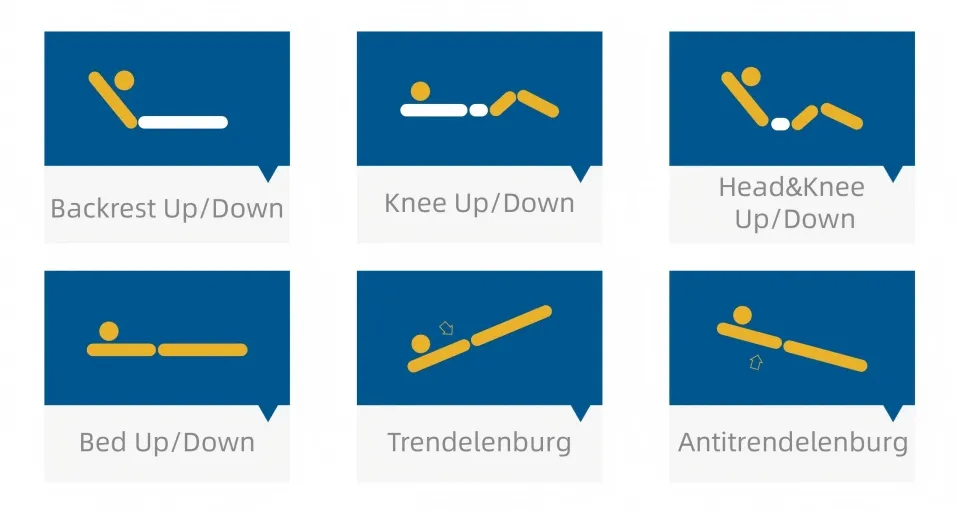

Basic Electric Functions

• Electric backrest Up/Down
• Electric Knee Up/Down
• Electric Bed Up/Down
• Electric Trendelenburg & Antitrendelenburg

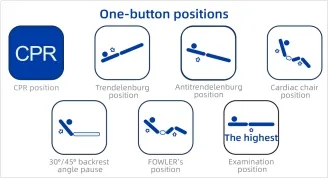

One-Button Positioning

Achieve critical positions instantly: Cardiac chair, Trendelenburg, Fowler, CPR, and Examination positions with a single touch.

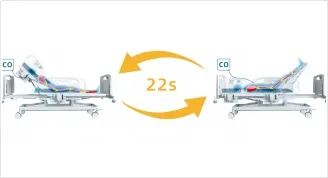

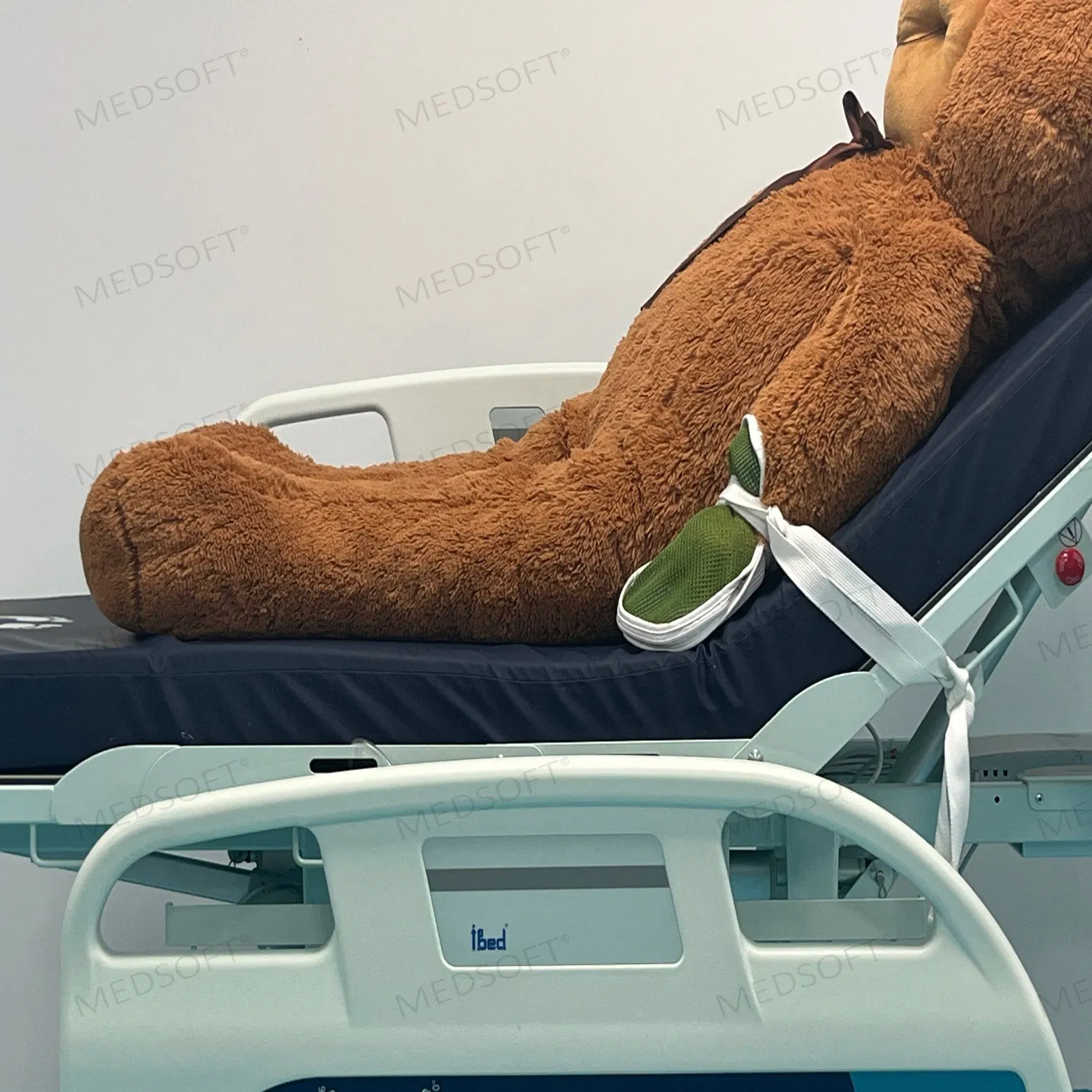

Standard PLR Position

One-button standard Passive Leg Raise (PLR) position achieved in 22 seconds for efficient fluid responsive assessments.

Advanced Monitoring & Safety

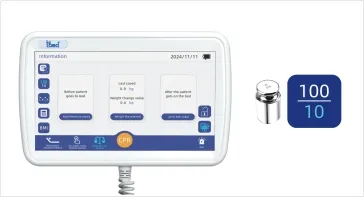

Intelligent Weighing System

High-accuracy weighing (0.01Kg) with trend charts and storage for up to 30 measurements to monitor patient weight changes directly.

Technical Parameters

Parameter	Specification
Overall Size (LWH)	2200 * 1035 * (415-785) mm
Mattress Platform	2000 * 811 mm
Safe Working Load	230 kg
Backrest Adjustment	0 - 70°
Knee Adjustment	0 - 45°
Trendelenburg / Antitrendelenburg	0 - 16°
Motor Type	Linak Motor (Denmark)

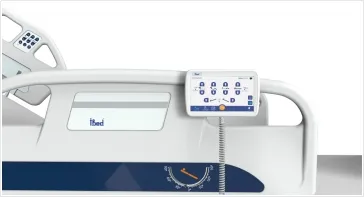

Control Panel	7-inch LCD Touch Screen
Casters	5" Central Locking Silent Castors

Quality & Security

Dual-sided CPR Manual and electric CPR options for emergency situations.

X-Ray Translucent Optional X-ray translucent mattress platform for Lung examinations.

Bumper System φ74mm bumper wheels to protect bed and patient during transport.

Frequently Asked Questions

Q1: What are the main electric functions of the iBed PLR 3 Pro? It features 5 main functions including electric backrest adjustment, knee adjustment, height adjustment, and Trendelenburg/Antitrendelenburg positioning.

Q2: How accurate is the integrated weighing system? The weighing system provides a high accuracy of 0.01Kg and can store up to 30 measurement records with trend charts for clinical monitoring.

Q3: What kind of motors are used in this hospital bed? The bed uses high-quality Linak motors from Denmark, ensuring durable stability and compliance with UL/ROHS/EN standards.

Q4: Does the bed have emergency CPR features? Yes, it is equipped with both electric one-key CPR and dual-sided manual CPR levers for fast backrest release during emergencies.

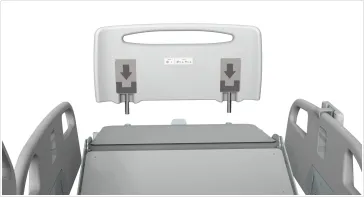

Q5: Is the bed suitable for ICU or high-end wards? Absolutely. Features like the 7-inch touch screen, one-step removable HDPE ends, and intelligent alarm systems meet the highest requirements for ICU and critical care environments.

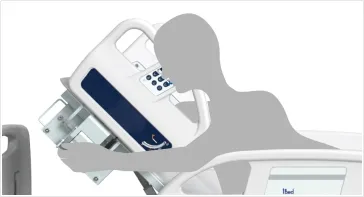

Q6: What safety measures are included to prevent patient falls? The bed combines a high-strength support structure with gravity-locked guardrails that cannot be accidentally unlocked by the patient.
