Advanced Intensive Care Bed with Integrated Siderail Control and Scale

1 / 5

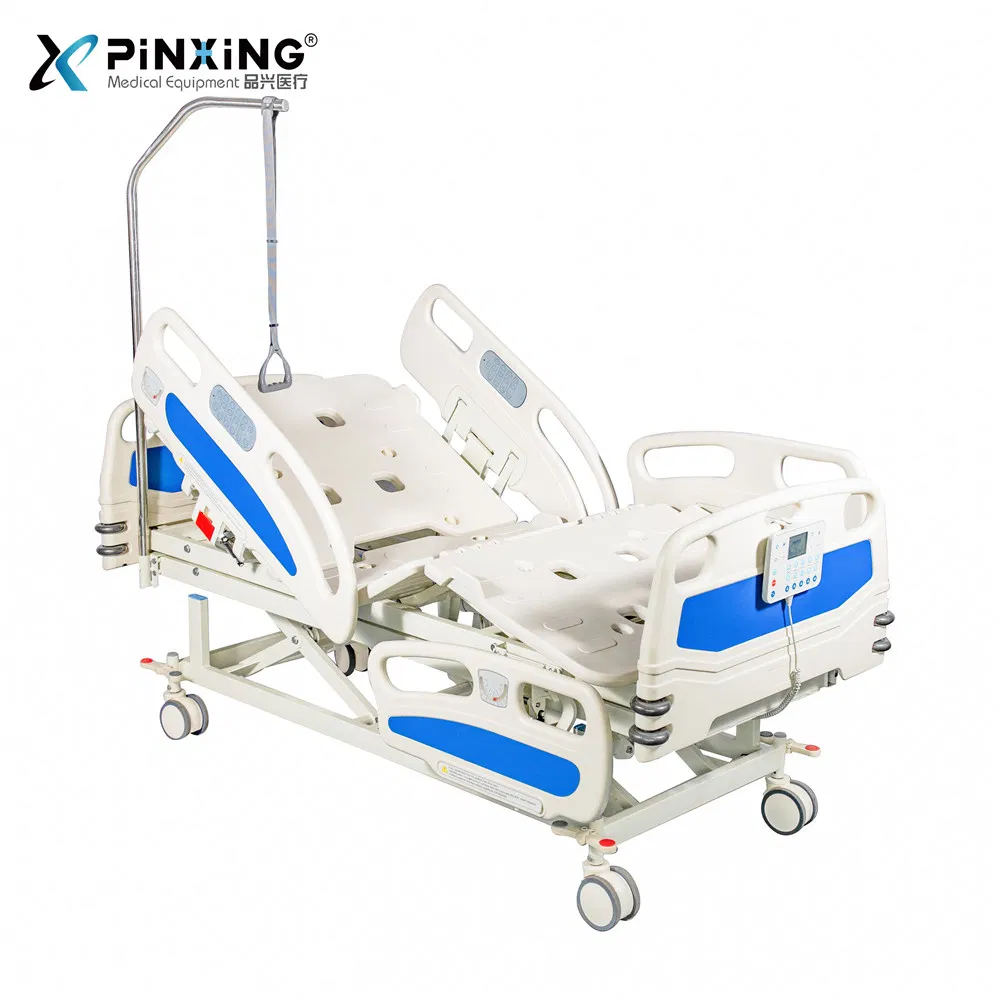

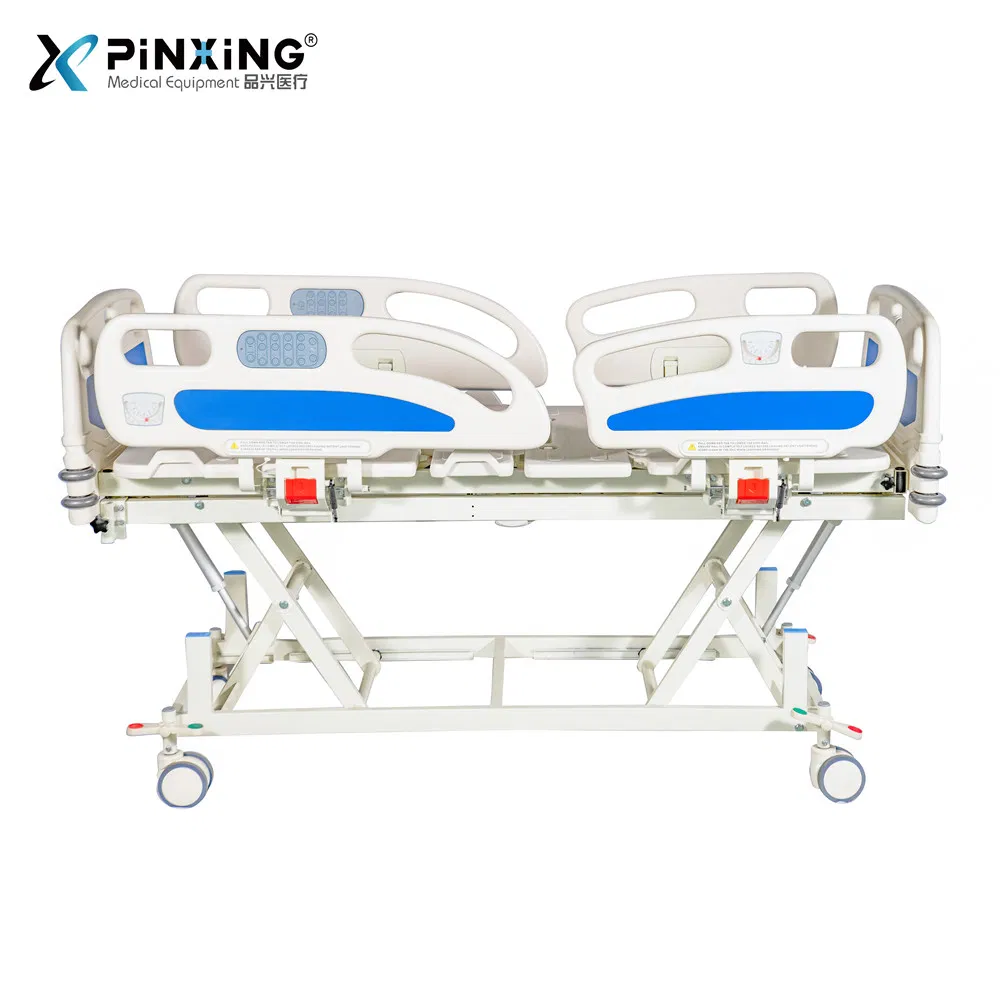

Advanced Intensive Care Bed with Integrated Siderail Control and Scale

Customization:	Available
Material:	PP, Power Coated Steel
Type:	Electric Bed

Send Inquiry

Product Description

Basic Specifications

Model NO.	DY5895EW
Numbers of Function	Five-function
Certification	CE, ISO13485, SGS, ISO14001
Height Adjustment	420~820mm
Max User Weight	300kg

Backrest Angle	0~75 Degree
Footrest Angle	0~35 Degree
Trendelenburg	0~12 Degree
Dimensions	21801060420~820mm
Condition	New

Intensive Care Bed Details

Advanced Intensive Care Bed equipped with a built-in siderail control panel and high-precision weighing scale system, designed for critical patient monitoring and comfort.

Electronic Adjustments

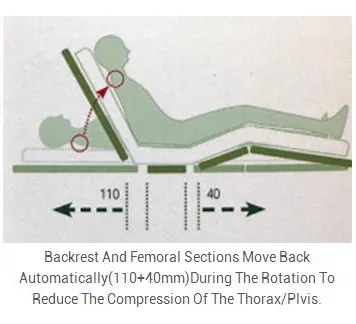

📐 Backrest
0° ~ 75°

🦵 Footrest
0° ~ 35°

↕️ Trendelenburg
0° ~ 12°

↔️ Height
450mm - 950mm

Physical Characteristics

Bed Dimensions: 2100×1000 mm (+-3%)
Bed Weight: 155KG~170KG (with weighing scale system)
Max Static Load: 400 KG
Dynamic Load: 200 KG

Core Specifications & Functions

Durable Frame: Made of 30*60mm powdered coating cold rolled tube.
Smart Control: External wired nurse control and patient control; optional remote control.

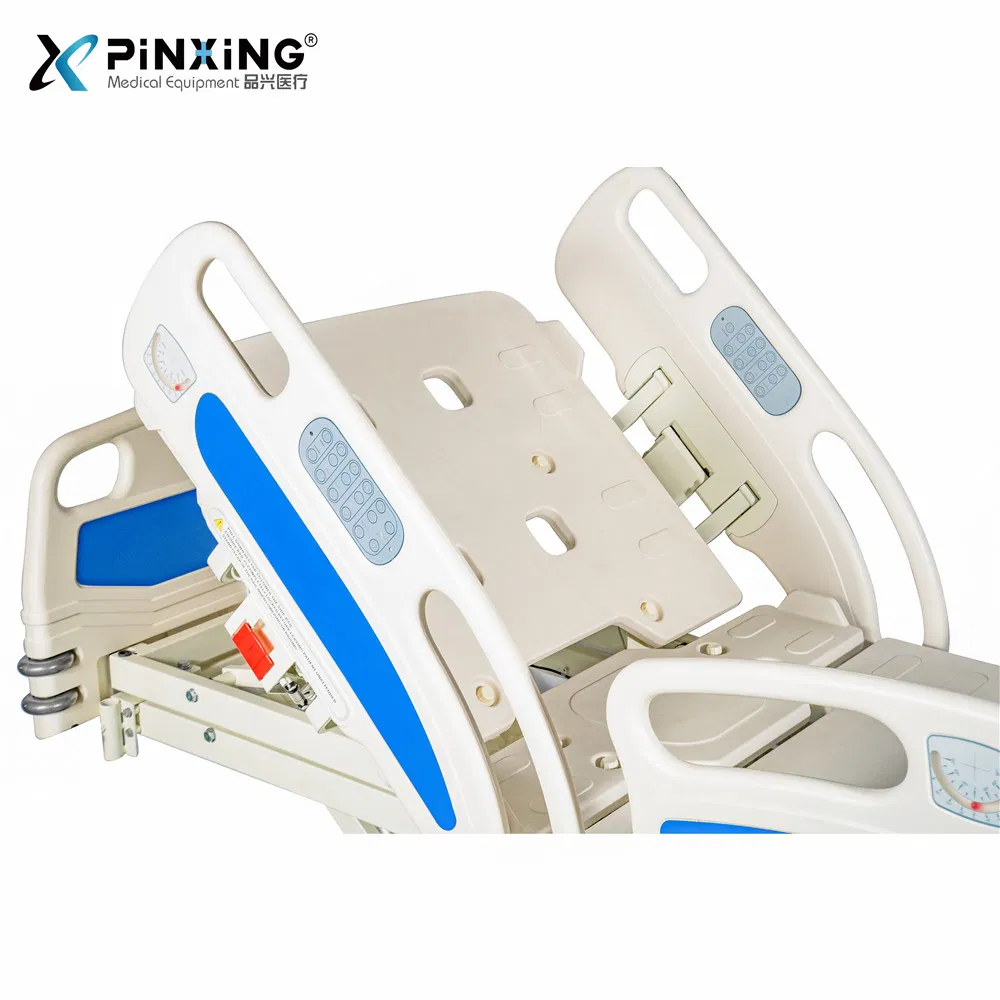

Safety Rails: Detachable PP head/foot boards with bumpers and integrated angle indicators.

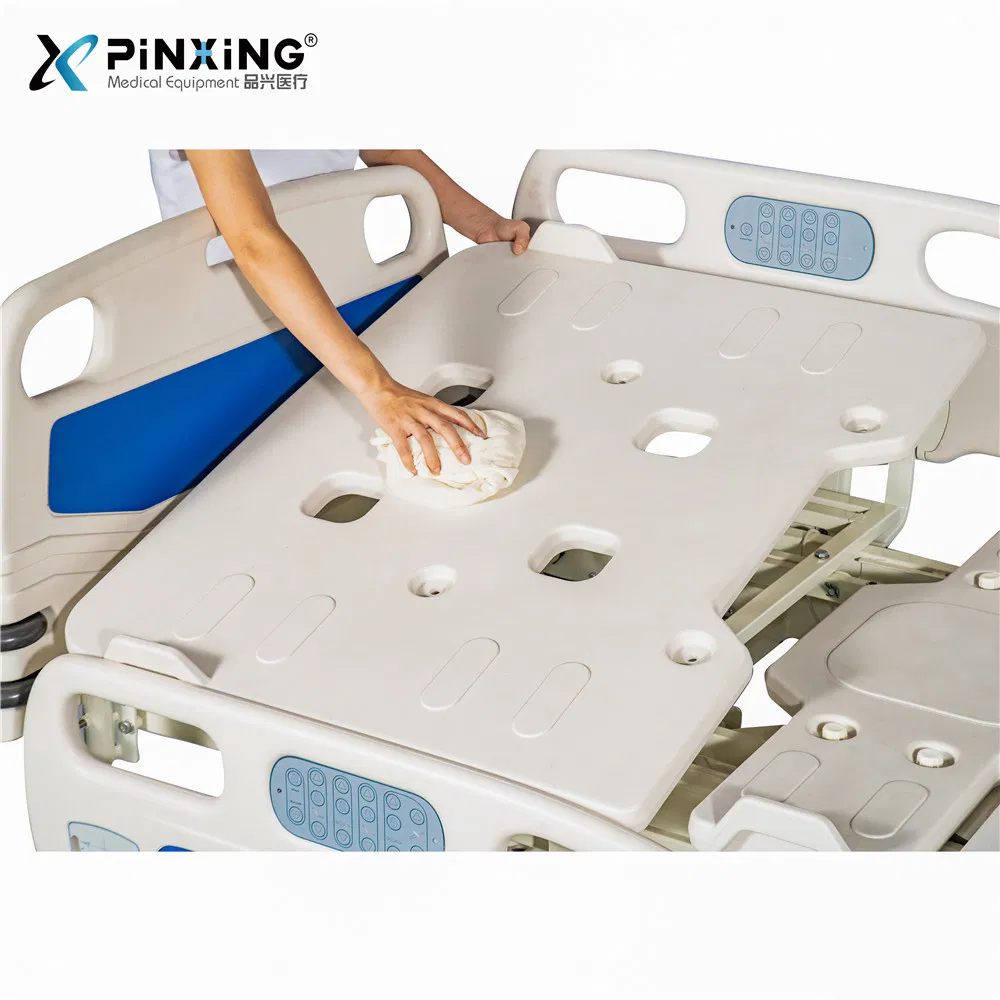

Hygiene Design: 4-section PP mattress-support board is waterproof, rustproof, and easy to clean.
Emergency Ready: Manual & Electrical CPR buttons for immediate response.
Mobility: Four 360° swivel, central lockable castors with 150mm diameter.
Additional Features: Drainage bag hooks, IV pole sockets at four corners, and protective corner bumpers.

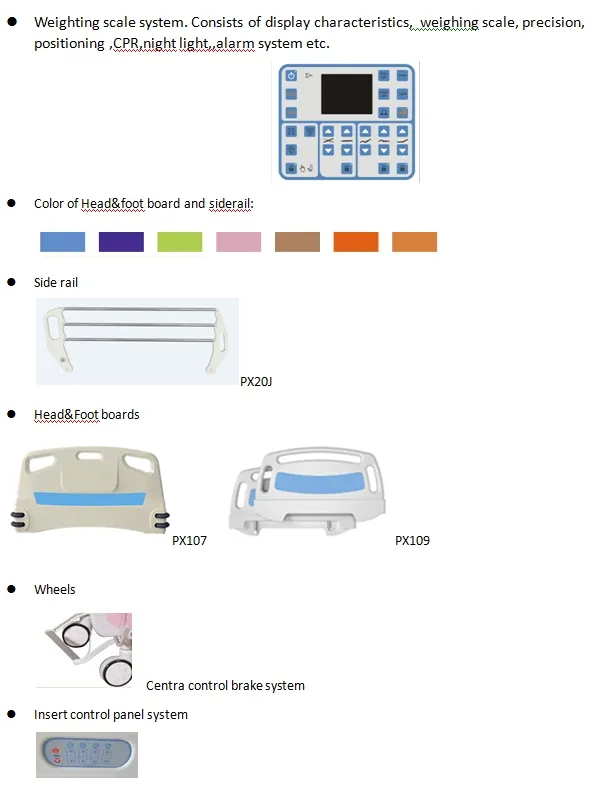

Visual Overview & Accessories

Compliance & Quality

Frequently Asked Questions

How long is the delivery time?

Normally around 15~30 days for accessories and 35~45 days for hospital beds after deposit and order confirmation.

What is the payment term?

We accept TT (Telegraphic Transfer) and L/C (Letter of Credit).

Do you provide OEM services?

Yes, we provide professional OEM services and can place your logo on the products.

What are your research and development capabilities?

We have strong R&D capabilities that allow us to customize and produce equipment according to your specific requirements.

What about the after-sale service and warranty?

We offer a 2-year limited warranty for the motors and a 1-year warranty for the bed frame. During this period, we provide replacement parts or refunds for broken components.
