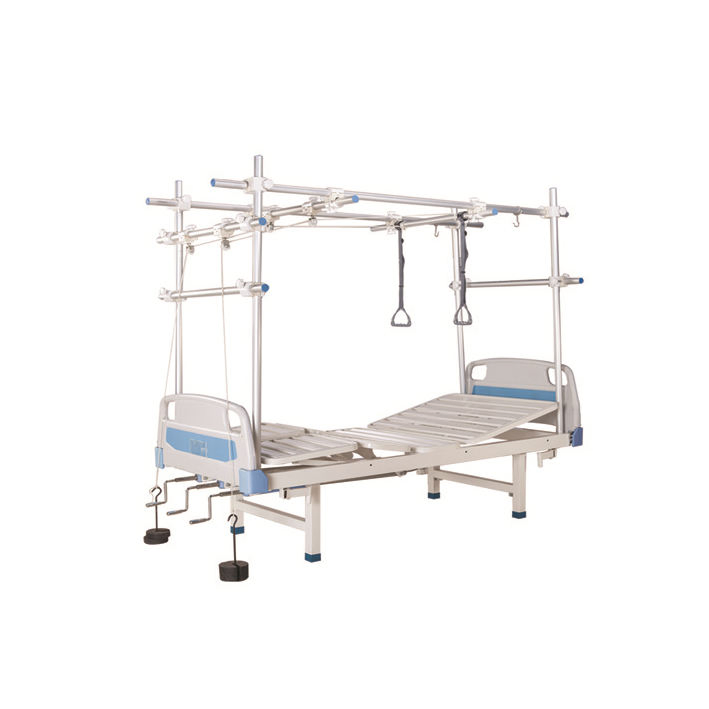

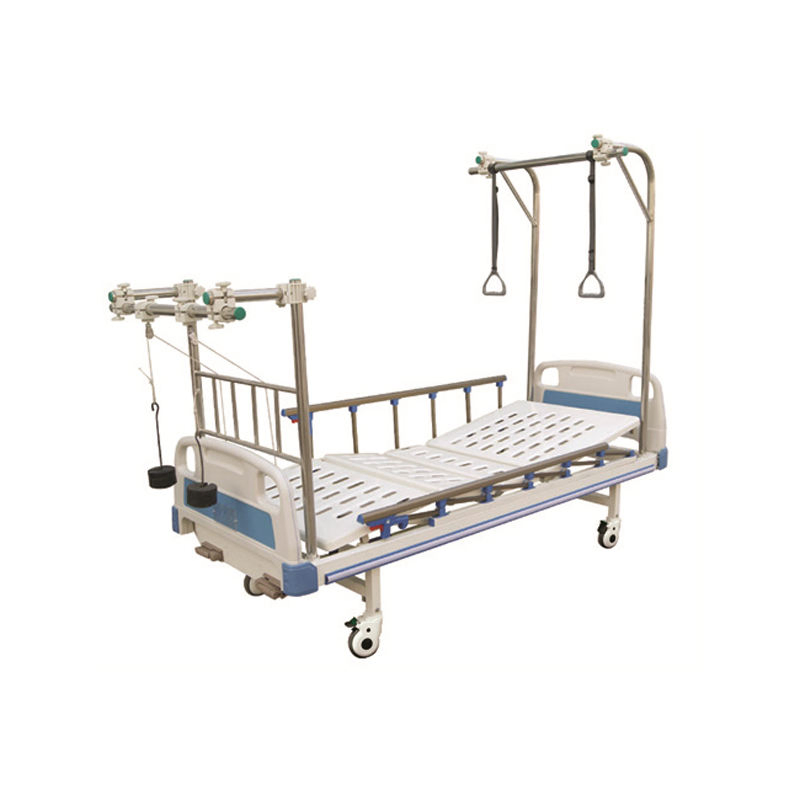

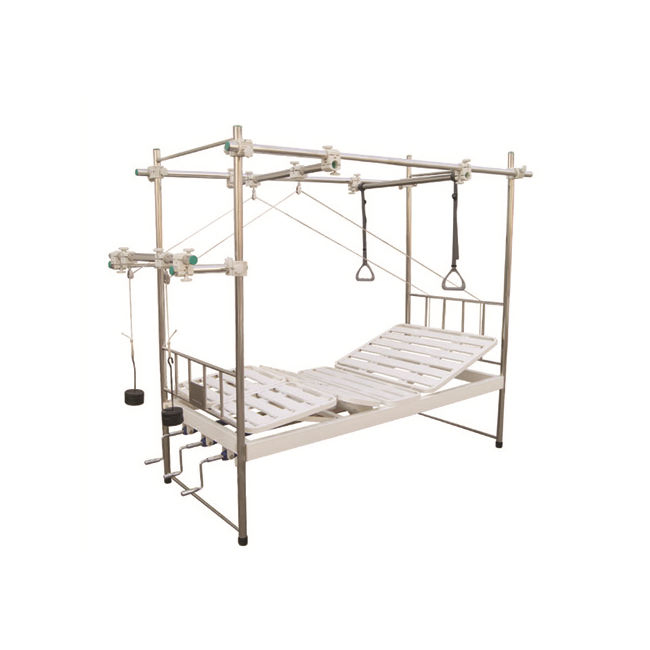

Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation
Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation
Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation
1 / 3
Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation
Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation
Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation

Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation

Warranty: 2 Years
After-Sale Service: Free Spare Parts
Transport Package: Wooden Box
Send Inquiry

Product Description

Basic Info.
Model NO. YH-A29
Origin Jiangsu, China
Production Capacity 25 Piece/Pieces Per Month

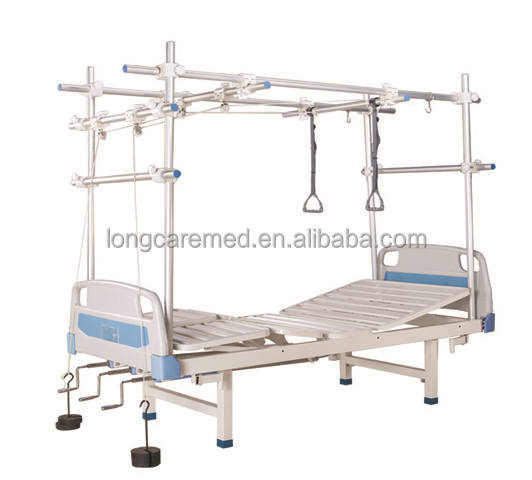

Manual Adjustable Orthopedic Traction Bed
Product Description & Features
Durable Construction: The bed head and end are blow-molded using ABS high-class engineering plastics, offering impact resistance, heat resistance, and easy installation.
Ergonomic Bed Top: Formed by one-time impact molding of cold-rolled steel strips (1.2mm thickness). The M-shaped design facilitates air permeability and slip resistance.
Sturdy Frame: Welded using 40*80*1.5mm shaped square tubes with a load capacity of ≥240kg.
Advanced Coating: Treated with acid washing, phosphating, and Akzo powder electrostatic spraying for firm paint attachment and bright color.
Safety Guardrails: Foldable high-quality aluminum alloy guardrails with hand-pinching prevention design.
Silent Mobility: Equipped with 125mm luxury silent casters for flexible, noise-free rotation and stability.
Hidden Crank System: Stainless steel hidden crank avoids unnecessary injuries and features a dual-direction limit protection setting.
Professional Traction Rack: Φ32×2mm stainless steel tubes ensure a stable and sturdy traction frame with high load-bearing capacity.
Technical Specifications
Parameter Details
Dimensions L2300 × W900 × H500mm
Material ABS & Cold-rolled Steel
Backrest Adjustment 0 - 80 ± 5º
Split Leg Part Adjustment 0 - 40 ± 5º
Weight Capacity (Frame) ≥ 240kg
Uniform Load Capacity Above 150kg
Warranty 2 years
After-sale Service Free spare parts
Model Number YH-A8 / YH-A29
Detailed View
Traction Bed Detail 1
Traction Bed Detail 2
Traction Bed Detail 3

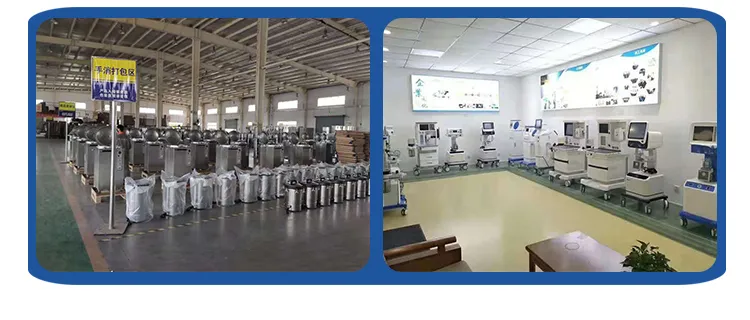

Traction Bed Detail 4
Traction Bed Detail 5
Traction Bed Detail 6
Traction Bed Detail 7
Traction Bed Detail 8
Frequently Asked Questions
What is the main material of the traction bed?
The bed is primarily constructed from high-quality cold-rolled steel with ABS engineering plastics for the head and foot boards, ensuring durability and ease of cleaning.
What is the maximum weight capacity?
The bed frame is designed to support a load of ≥240kg, while the uniform load-bearing capacity for the whole bed during operation is rated above 150kg.
Can the backrest and leg parts be adjusted?
Yes, the backrest can be adjusted from 0 to 80 ± 5º, and the split leg part can be adjusted from 0 to 40 ± 5º to accommodate various orthopedic rehabilitation needs.
Are the wheels noisy when moving the bed?
No, the bed is equipped with 125mm luxury silent casters that provide smooth and quiet movement, making it ideal for hospital environments.
Does the bed come with a warranty?
Yes, the product includes a 2-year warranty and we provide free spare parts as part of our after-sales service.
What safety features are included?
Key safety features include high-quality foldable aluminum alloy guardrails with hand-pinching prevention and hidden stainless steel cranks to prevent accidental contact injuries.
