Basic Information
Sleeping Surface
1960*830mm
Product Description

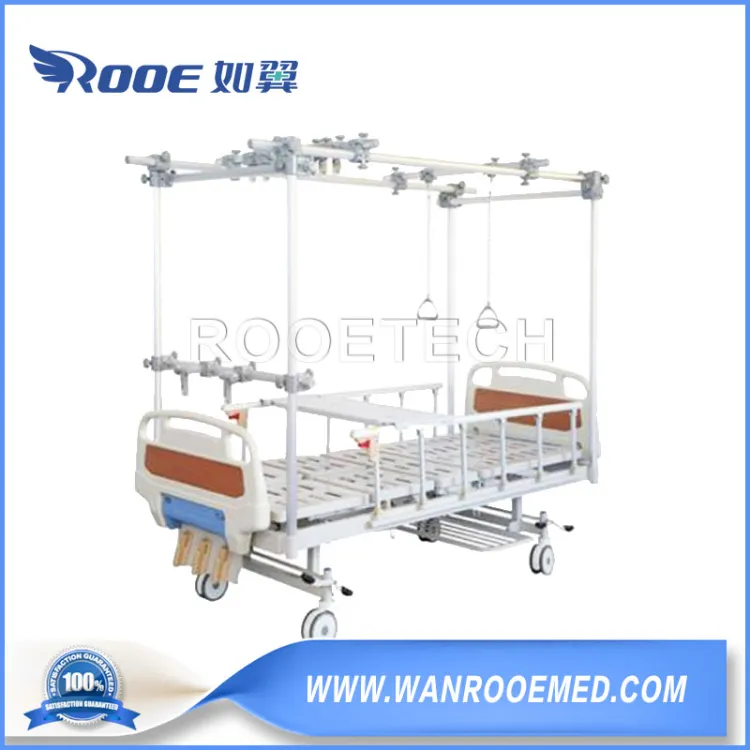

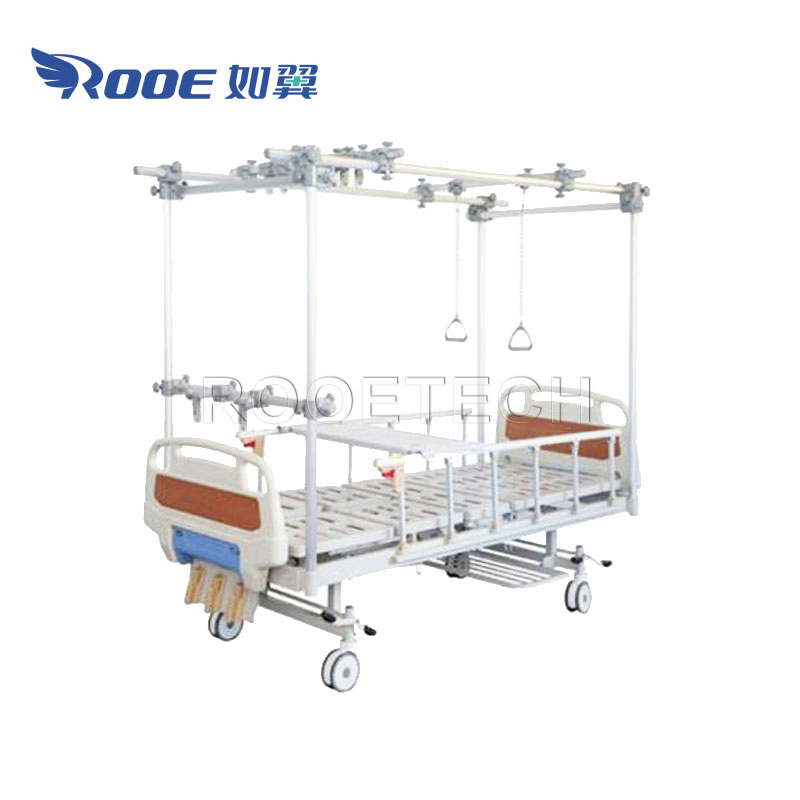

Specifically designed for Orthopedic surgeries and traumatic treatment, this fracture bed is impeccable on counts of quality, durability and performance. It encompasses backrest and leg rest adjustment facilities with a folding bed surface, ensuring smooth operation without moving the patient's body.
Made of cold rolled steel plate with electrophoresis and powder coating treatment.
Equipped with separate foot sections for independent leg traction.
Side hole installation and six-point support anti-clip mode for enhanced safety.
Headboard and footboard made of high-quality ABS material.
Hidden shelving designed under the bed for dinner plates.
Stainless steel gantry traction frame with pulley and traction hook.
Three hand-adjusted cranks with foldable handles at the foot of the bed.
Four independent casters equipped with two brakes for stability.
Product Parameters
| Technical Specifications |
| Model | BAM304G |
| Length | 2130mm |
| Width | 990mm |
| Bed Base Height | 490mm |
| Backrest upward angle | 0-75° |
| Knee section(left) up | 0-40° |
| Knee section(right) up | 0-40° |
| Loading Capacity | 250kg |
| Optional Accessories | Mattress, Weighing system, Extended bed frame, IV Pole, X-ray bed board, Oxygen cylinder holder |
Manufacturing Overview
Frequently Asked Questions
What is the primary application for the BAM304G bed?
The BAM304G is specifically designed for orthopedic surgeries and traumatic treatments, providing necessary traction and positioning for recovery.
Can the leg sections be adjusted independently?
Yes, the bed features separate foot sections to allow for independent leg traction, which is essential for various orthopedic needs.
What is the maximum weight capacity of this bed?
The bed is built to support a maximum loading capacity of up to 250kg (approx. 550 lbs).
What materials are used in its construction?
The bed frame is made of cold rolled steel with electrophoresis and powder coating for durability, while the head and foot boards are made of ABS material.
How is the traction frame configured?
It features a stainless steel gantry traction frame equipped with pulleys and traction hooks, specifically designed for effective leg traction.
Are there any built-in storage features?
Yes, there is a hidden shelving unit designed under the bed specifically for placing dinner plates or other patient items.
