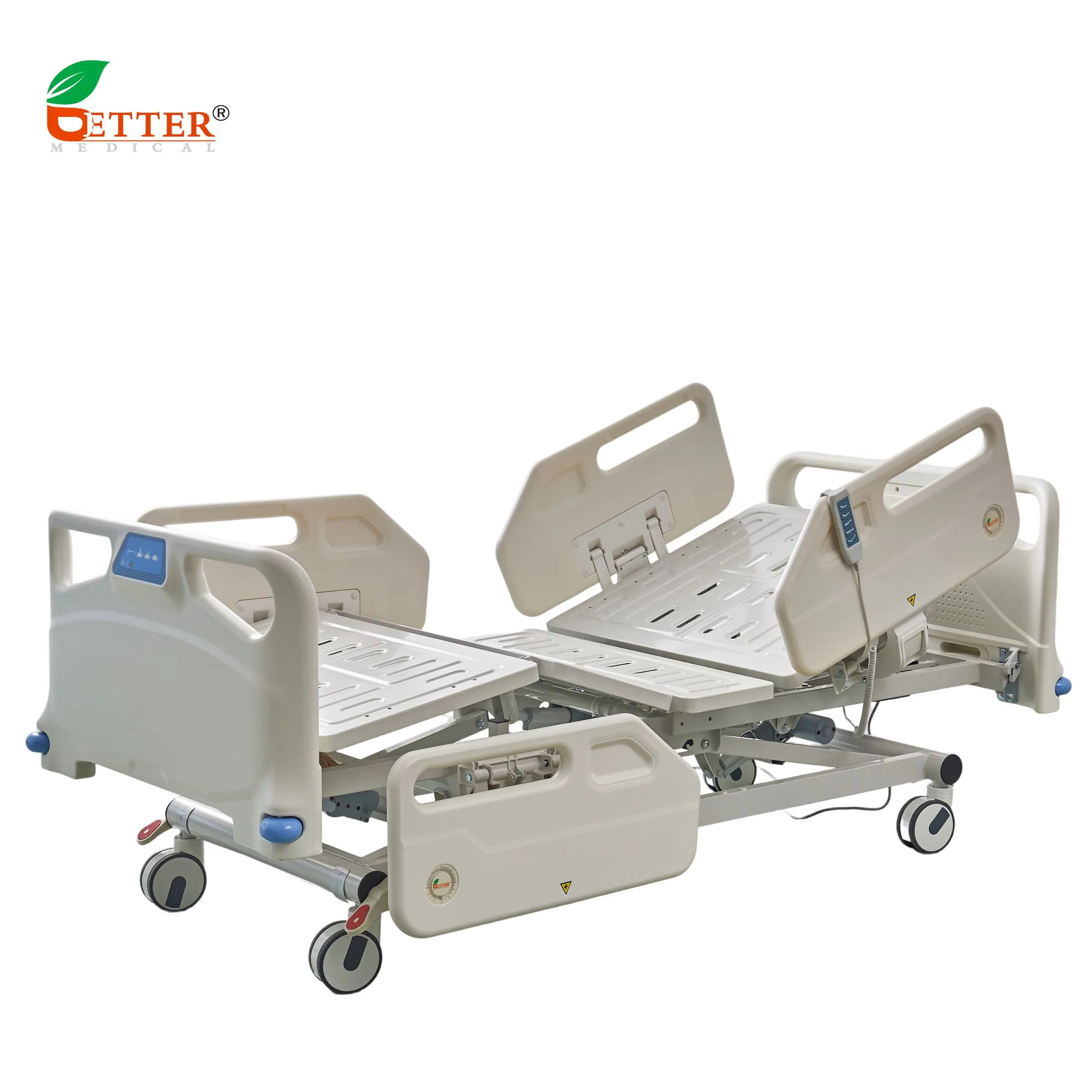

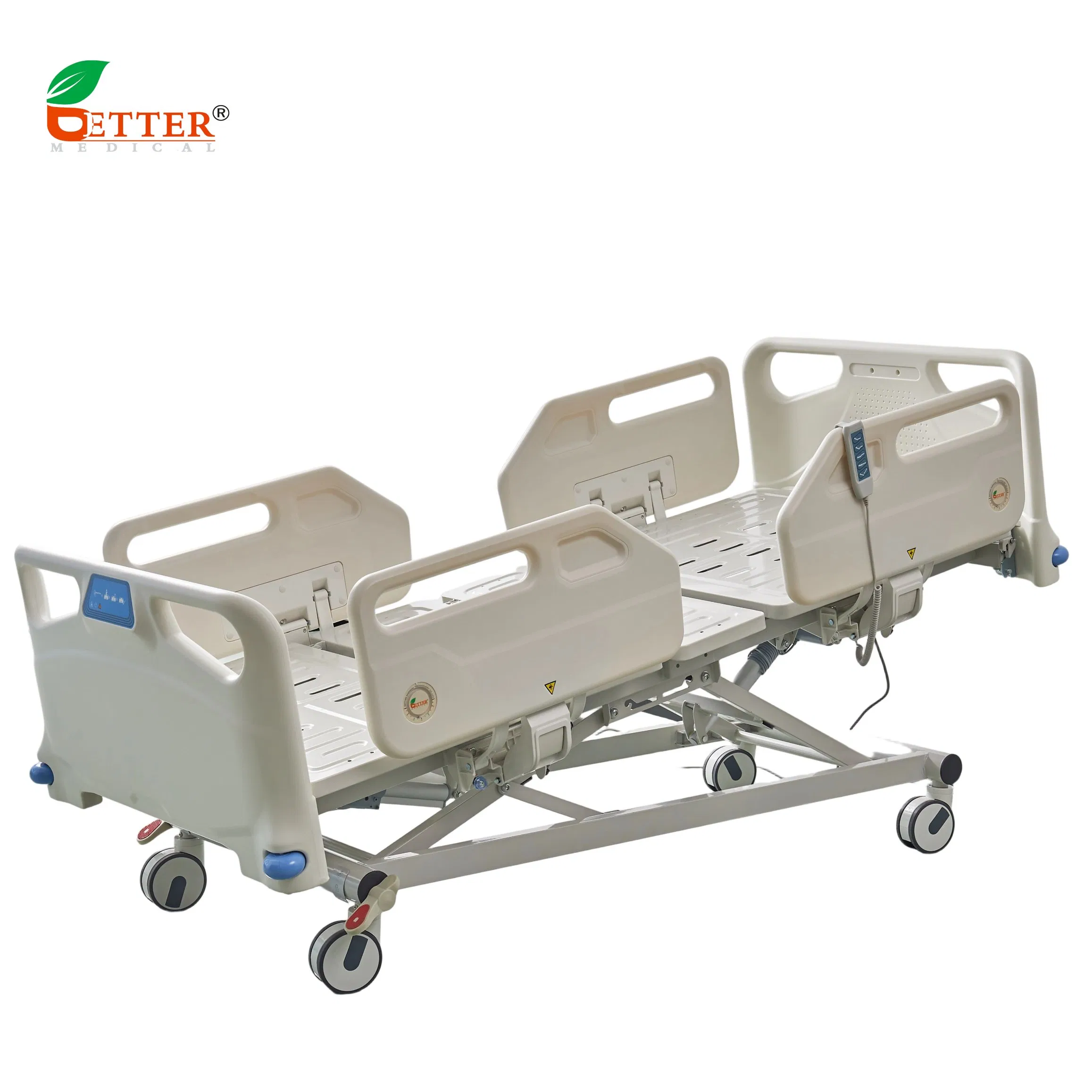

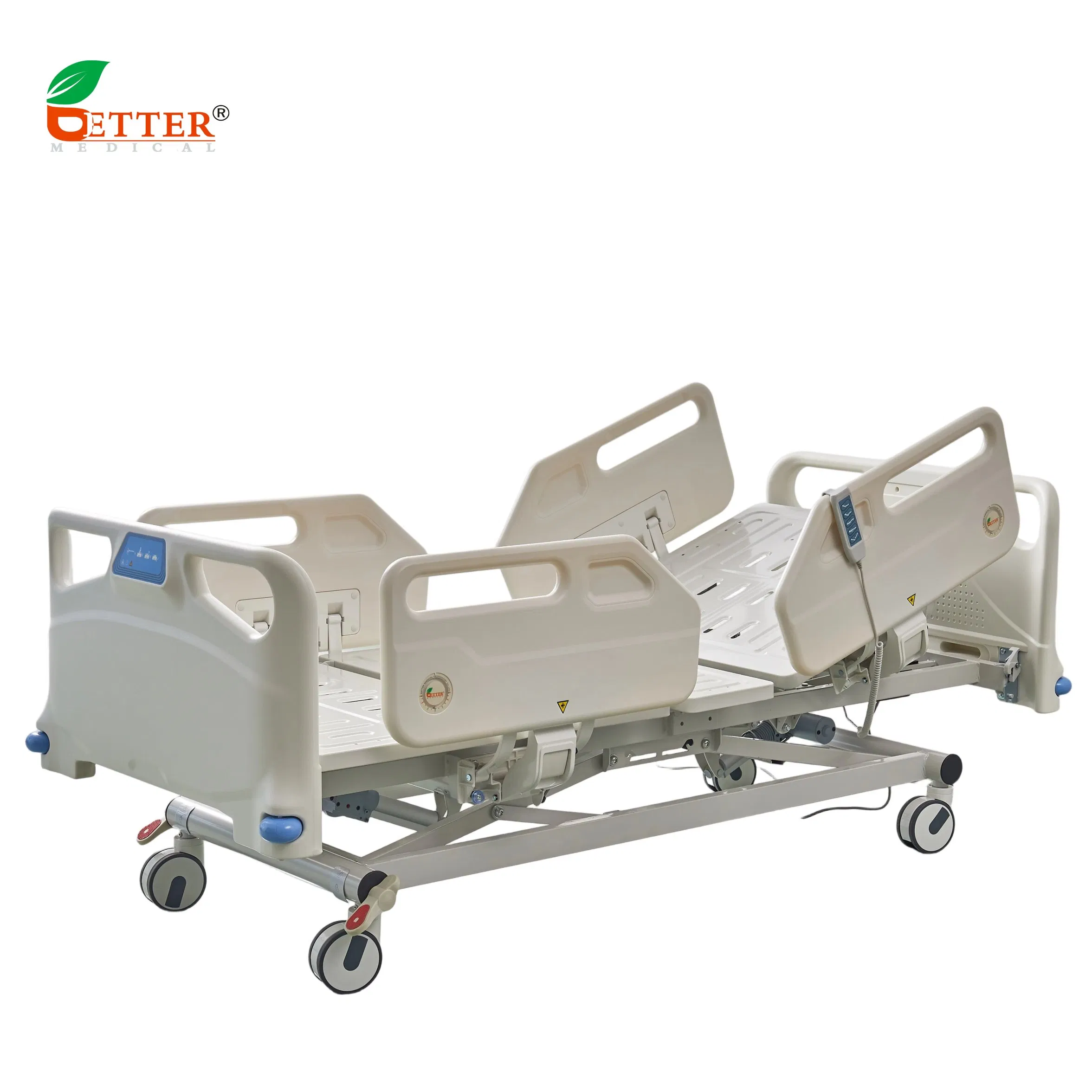

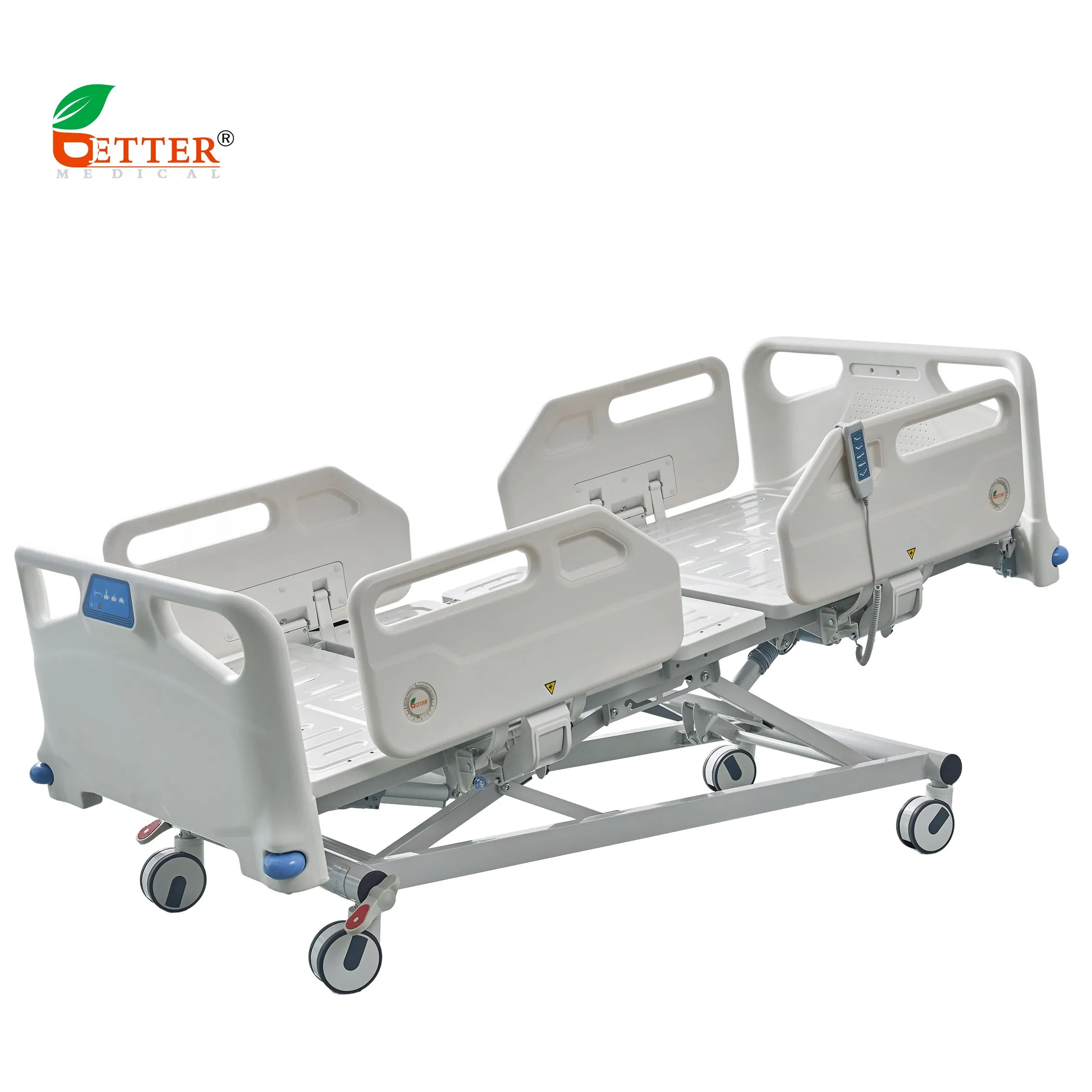

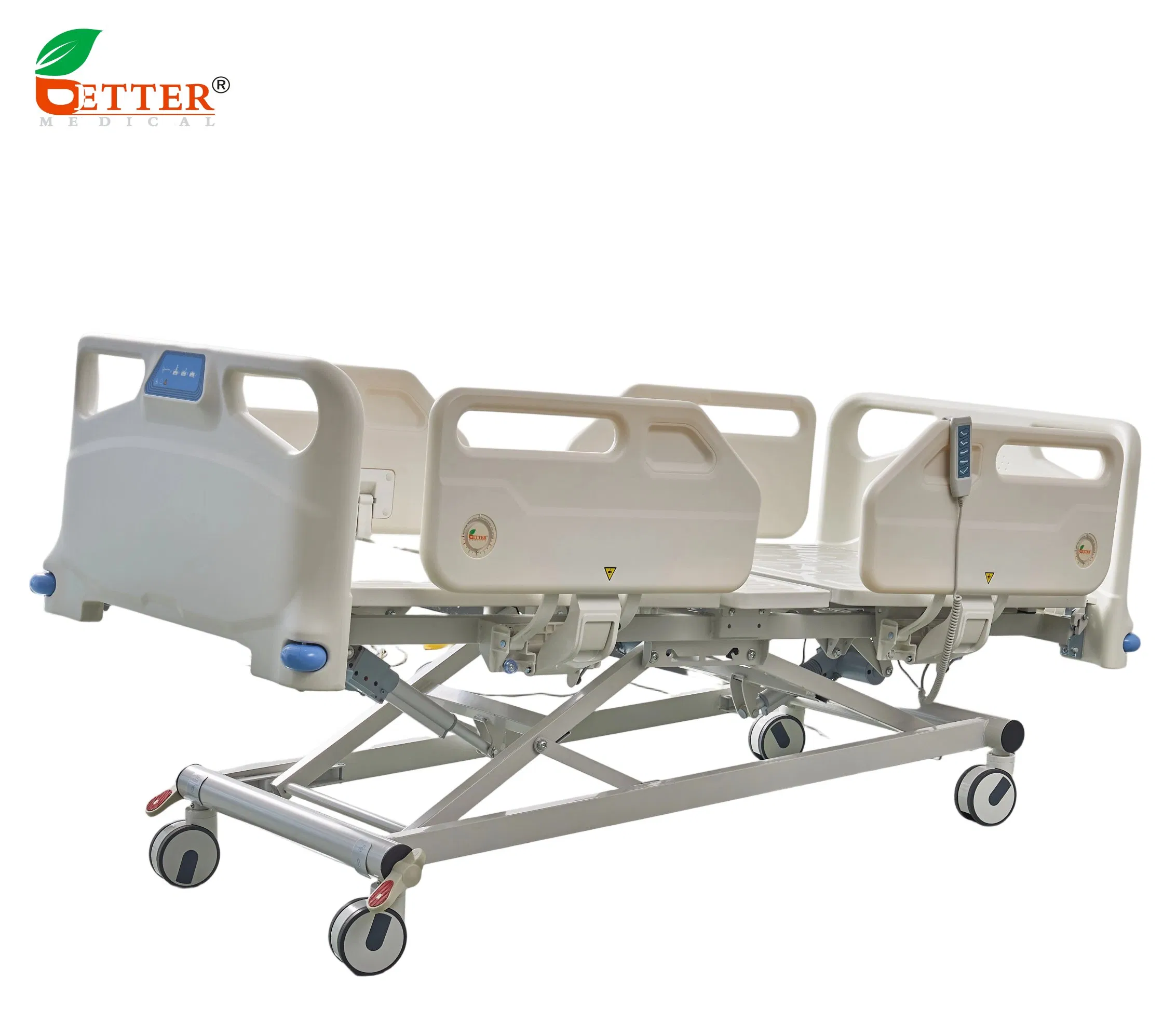

Medical Equipment PP Wings 5 Function Electric Adjustable Bed for ICU

Still deciding? Get samples of $ !
Request Sample

Product Description

Electric Hospital Bed
Basic Specifications
Model NO.BT611EPZ-5C
Numbers of FunctionFive-function
Using AmbientHospital
CertificationCE, FDA, ISO13485, Cfs
Side RailsPP Plastic
Head/Foot BoardABS
Castors4PCS 5-Inch Central-Brake Wheels
Warranty1 Year
Specification2140x1000x430-750mm
Weight Capacity250kgs
Product Overview

Hospital beds are designed to provide stable, safe, and comfortable environments for rest, healing, and recovery. Unlike traditional beds, this full electric hospital bed offers greater security and positional versatility, allowing the head, foot, and overall height to be adjusted independently.

Full Electric Adjustment

Patients can easily make adjustments with the touch of a button, ideal for those needing frequent position changes or for caregivers with limited physical strength.

Function Bar
Key Functional Positions
Backrest & Footrest Adjustable

Backrest tilting: 0~75°±5°. Footrest tilting: 0~45°±5°. Ensures optimal ergonomic support.

Hi-Lo Adjustment

Adjusts from 450mm to 790mm, meeting the ideal height for both patient comfort and caregiver accessibility.

Trendelenburg & Reverse

Allows tilted positions (0~15°) for surgical needs, respiratory relief, and heart condition management.

Sit Position (Fowler's)

Places users in a semi-upright posture (45-60 degrees) to assist with respiratory function.

Technical Details (Model: BT605EPZ)
  • Material: Steel + ABS + PP
  • Frame: Electrostatic spraying steel
  • Head/Foot Board: Detachable High-density ABS
  • Side Rails: 4pcs High-density PP wings
  • Power: 220~240V, 50~60Hz
  • Bed Board: 4 sections, 1950x840mm
  • Castors: 5" Central brake system
  • I.V Pole: Stainless steel, height adjustable
  • Mattress: 12cm memory foam included
  • Additional: Angle displays, Bumper corners, X-ray translucent backrest
Product Gallery
Details 1 Details 2 Details 3

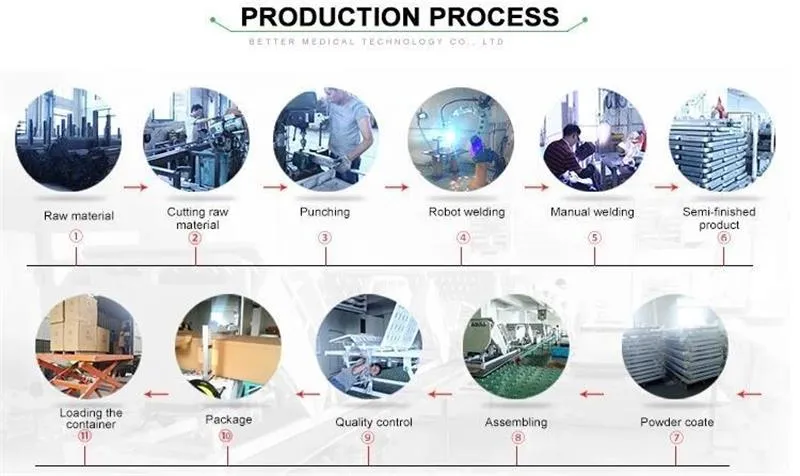

Details 4 Details 5
Frequently Asked Questions
Q: What are the primary five functions of this electric bed?
A: The bed features electric adjustment for backrest tilting, footrest tilting, Hi-Lo height adjustment, Trendelenburg position, and Reverse Trendelenburg position.
Q: What is the maximum patient weight capacity?
A: This medical nursing bed is designed to safely support a capacity weight of up to 250kgs.
Q: Are the head and foot boards easy to remove?
A: Yes, the high-density ABS head and foot boards are designed to be detachable for easy medical access and cleaning.
Q: Does the bed come with a mattress?
A: Yes, the standard configuration includes a 12cm memory foam mattress for immediate use.
Q: Can X-ray procedures be performed while the patient is in bed?
A: Yes, the bed features an X-ray translucent backrest and an X-ray cassette holder underneath the backrest section.
Q: How does the braking system work?
A: The bed is equipped with 5-inch castors and a central braking system controlled by pedals for secure and easy positioning.
