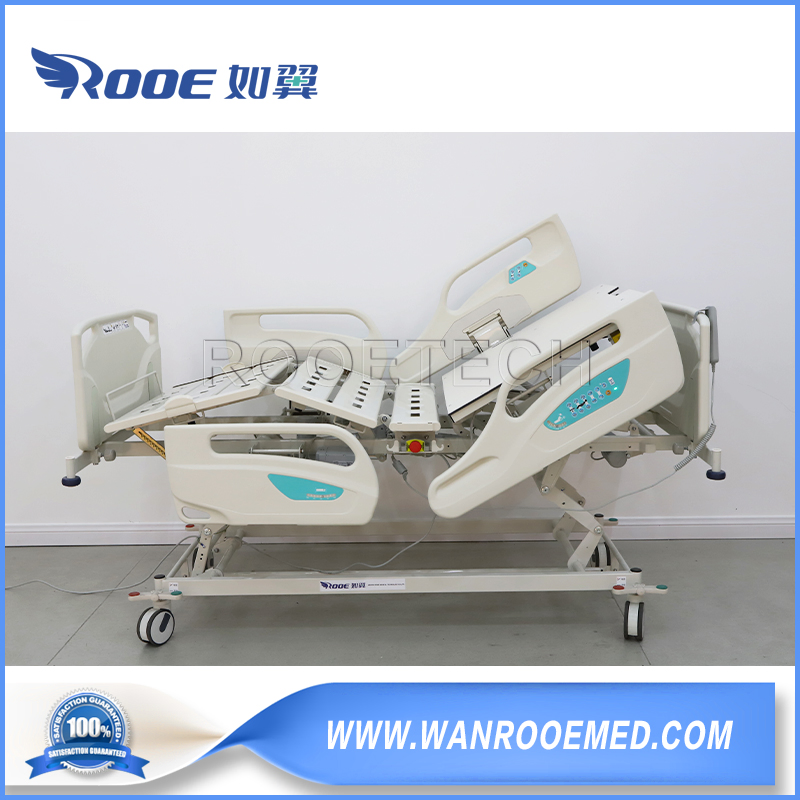

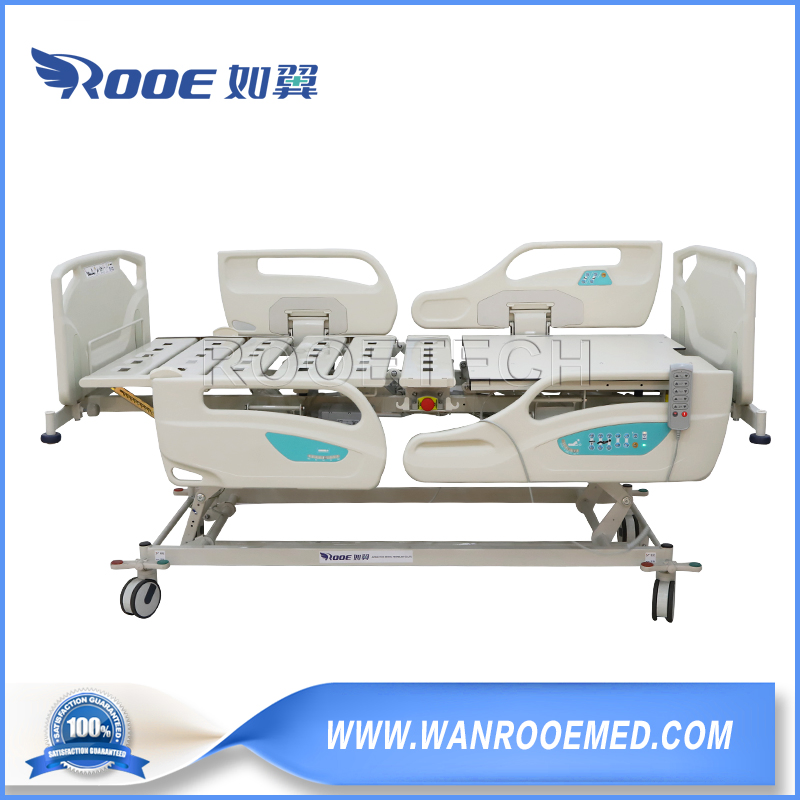

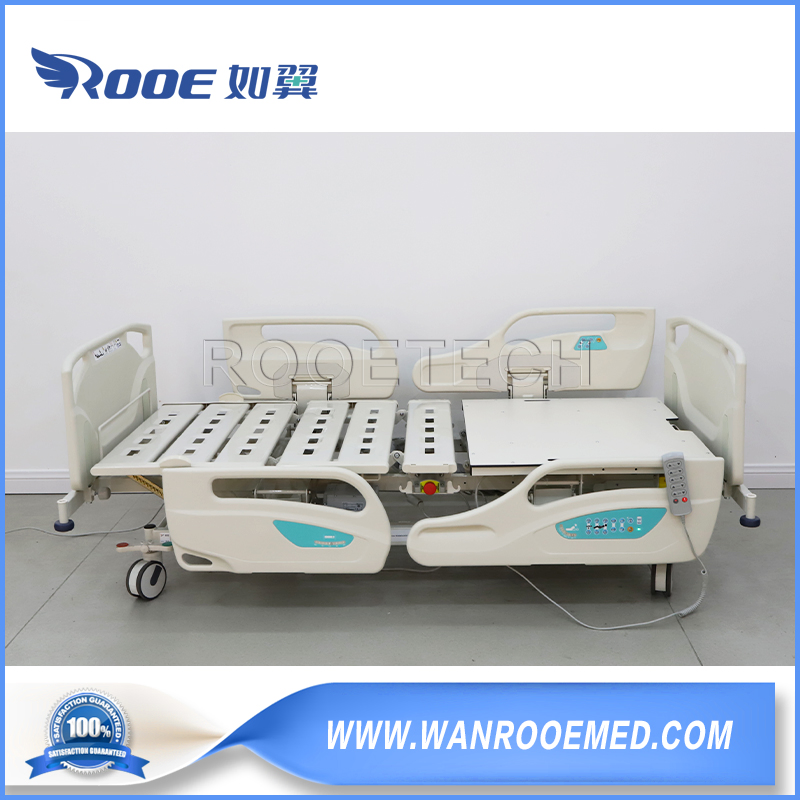

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
1 / 5
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR
420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

Customization: Available
Material: Metal
Type: Electric Bed
Send Inquiry

Product Description

📋

Basic Information

Model NO.
BAE503
Folded
Unfolded
Using Ambient
Hospital / ICU / Ward
Function
Five-function / Multifunction
Certification
CE, FDA, ISO13485
Condition
New
Warranty
1 Year
Color
White
Materials
ABS Plastic Head/Footboards & Handrails
Power Supply
220VAC or 110VAC
Load Capacity
250kg
Specification
2140*1050*420-790mm

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

Electric Patient Bed
✨

Product Features & Description

  • 1
    Durable Cold-Rolled Steel Frame Made from premium cold-rolled steel, molded in one piece for enhanced strength. Multiple ventilation holes ensure excellent airflow.
  • 2
    Movable Protective Side Rails Rails move with the bed to protect patients. Includes angle display devices and dual control panels (External for staff, Internal for patient).
  • 3
    Removable Head and Foot Boards Quickly detachable for emergency access and treatment; securely lockable for safe patient transfers.
  • 4
    Silent Medical Casters 125mm dual-direction silent casters with three modes: locked, free, and directional for smooth control.
  • 5

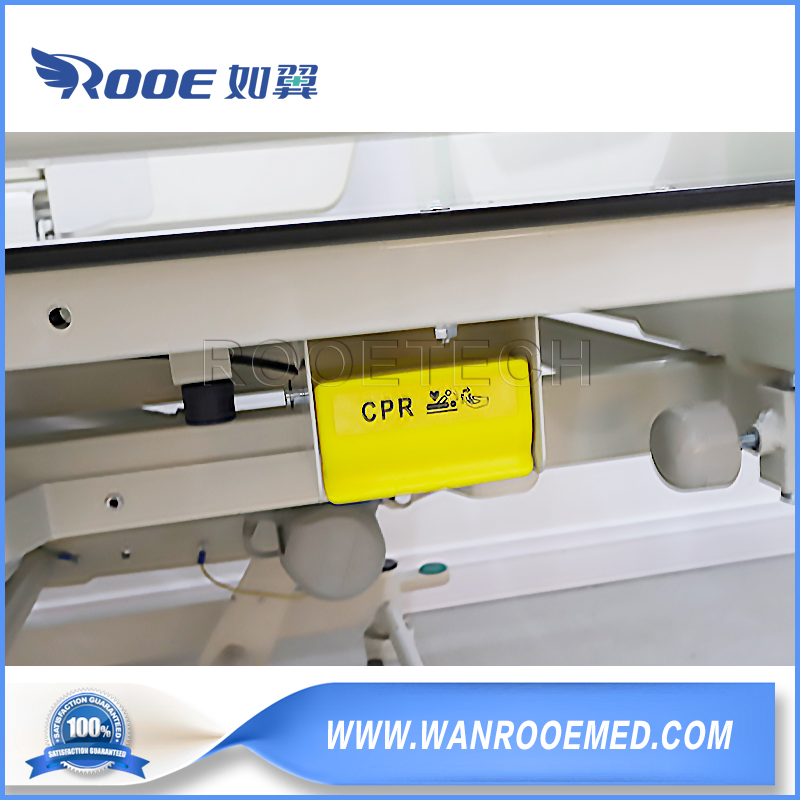

    Dual-Sided Manual & Electric CPR Features both electric buttons and manual handles on both sides for emergency flat positioning during power failures.
  • 6
    Night Light Function Orange LED indicators alert staff when the bed is not in its lowest position, enhancing safety during nighttime rounds.
📊

Technical Specifications

Specification Detail
ModelBAE503
Overall Dimensions2140mm (L) x 1050mm (W)
Height Range420mm - 790mm
Backrest Adjustment0-70°
Knee Adjustment0-25°
Footrest Adjustment0-22°
Tilt (Trendelenburg)-12° ~ 12°
Loading Capacity250kg
Caster DiameterΦ125mm (Central Control)

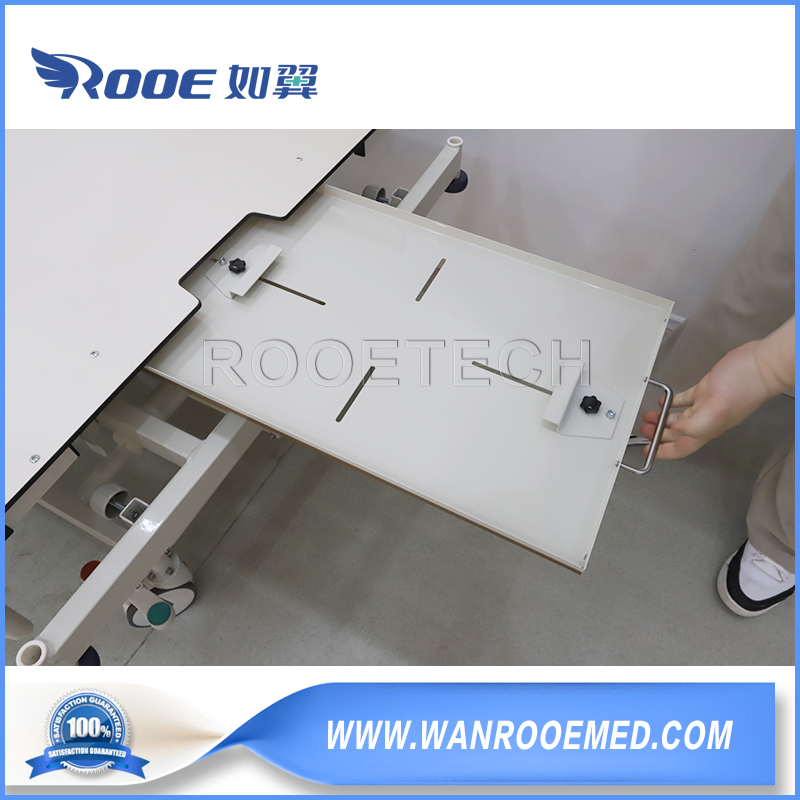

OptionsExtended Frame, Mattress, IV Pole, Weighing System, X-ray Board
📷

Detailed Photos

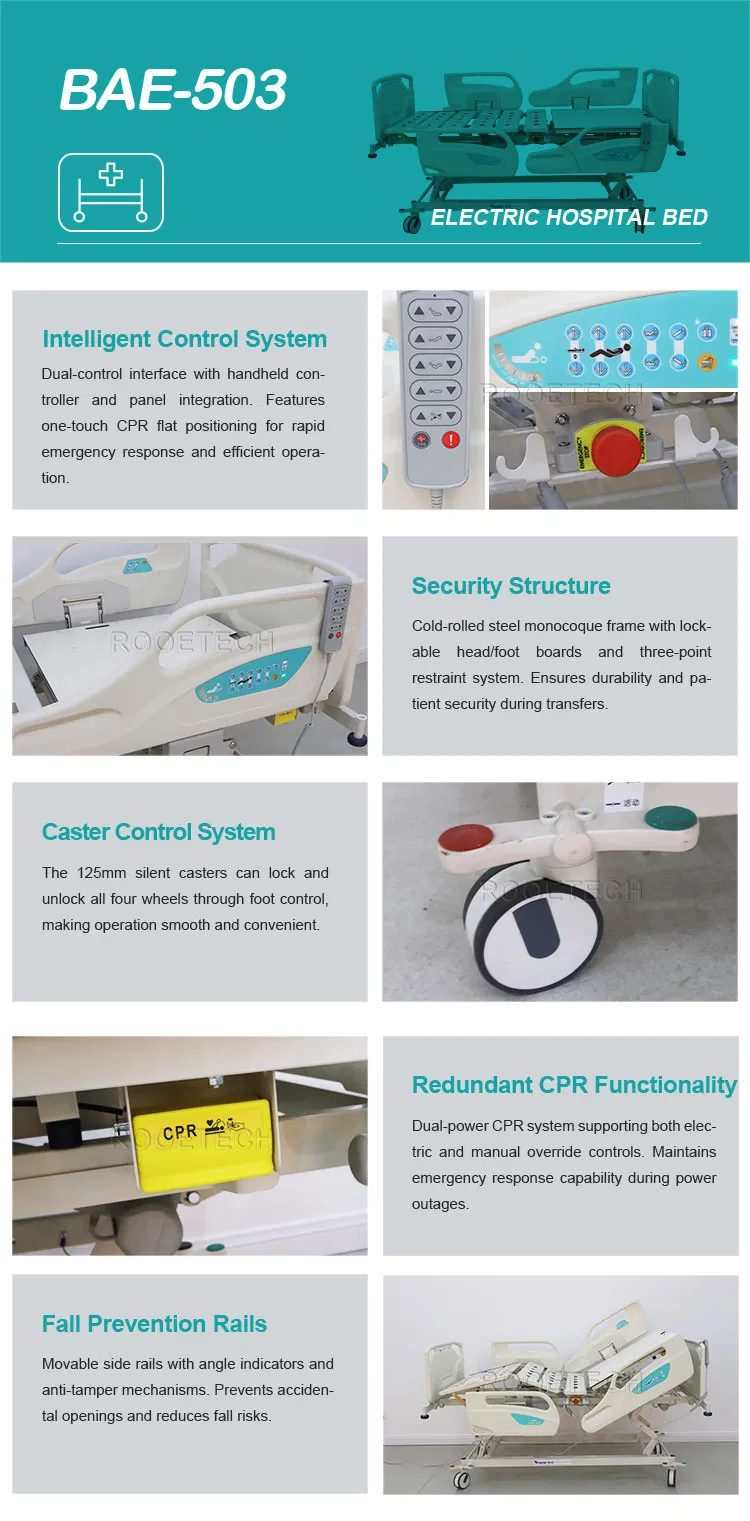

Detailed View 1 Detailed View 2 Detailed View 3
❓

Frequently Asked Questions

What are the primary functions of this electric bed?
The BAE503 is a five-function electric bed that allows for adjustment of the backrest (0-70°), knee section (0-25°), footrest (0-22°), overall height (420-790mm), and tilt angles (-12° to 12°).
How does the CPR function work in an emergency?
The bed is equipped with dual-sided manual CPR handles and an electric CPR button on the control panel. This allows medical staff to quickly restore the bed to a flat position even during power failures.
What is the maximum weight capacity?
The bed is designed with a high-strength cold-rolled steel frame and has a safe loading capacity of up to 250kg.
Is the bed easy to move and secure?
Yes, it features 125mm silent medical dual-direction casters with a central control system that supports locked, free, and directional movement modes.
Does the bed include a backup power source?
Yes, it is equipped with a built-in backup battery to ensure all electric functions remain operational during power outages or patient transfers.
How do the side rails prevent patient falls?
The side rails move in sync with the bed's adjustments and can only be unlocked from the outside, preventing patients from accidentally opening them from the inside.
