iBed 5 Electric Adjustable Medical Bed With Smart Hospital Care Design Concept

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.iBed 5

Using AmbientHospital

FunctionsFive-function

CertificationCE, ISO13485

ConditionNew

Safe Working Load230kg

Height Adjustment510-910mm

Casters Diameter125mm

HS Code94029000

PackageCarton / Wooden Box

⚙️ Core Functional Positions

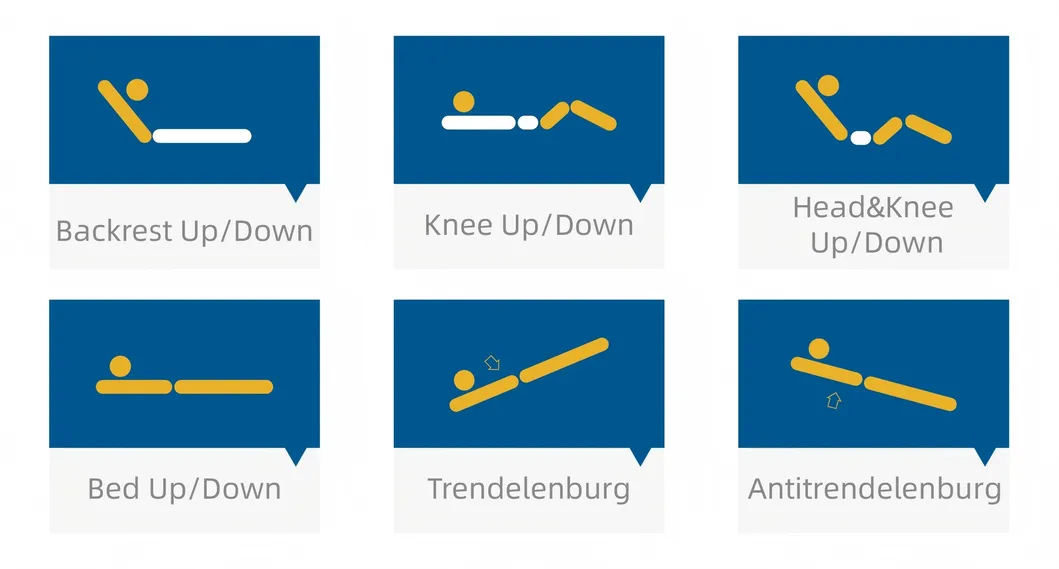

Basic Electric Functions

• Electric backrest Up/Down
• Electric Knee Up/Down
• Electric Bed Height Up/Down
• Trendelenburg & Antitrendelenburg

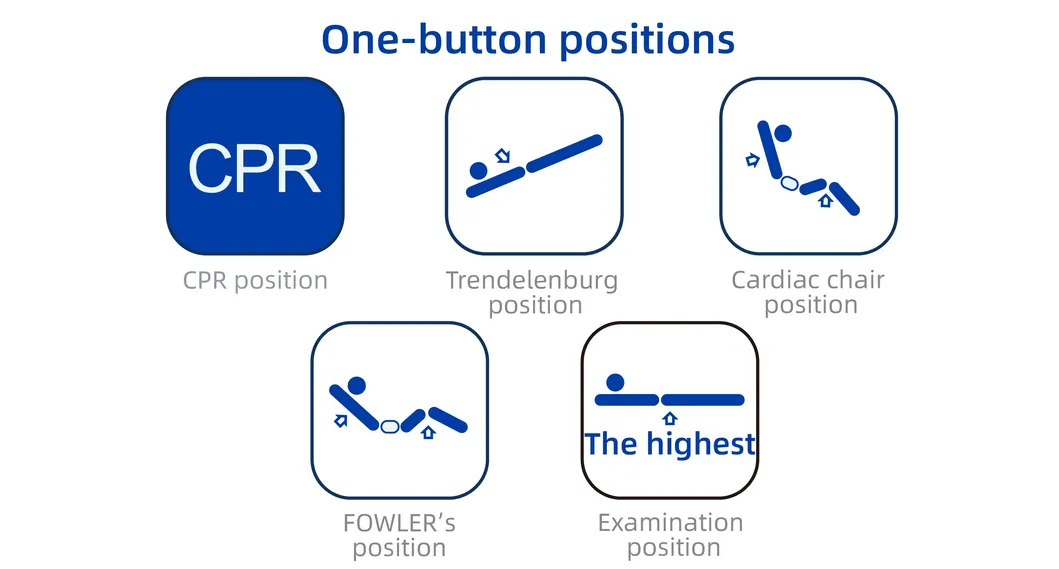

One-Button Control

Pre-set positions for rapid adjustment: Cardiac chair, Trendelenburg, Fowler, Examination, and CPR positions.

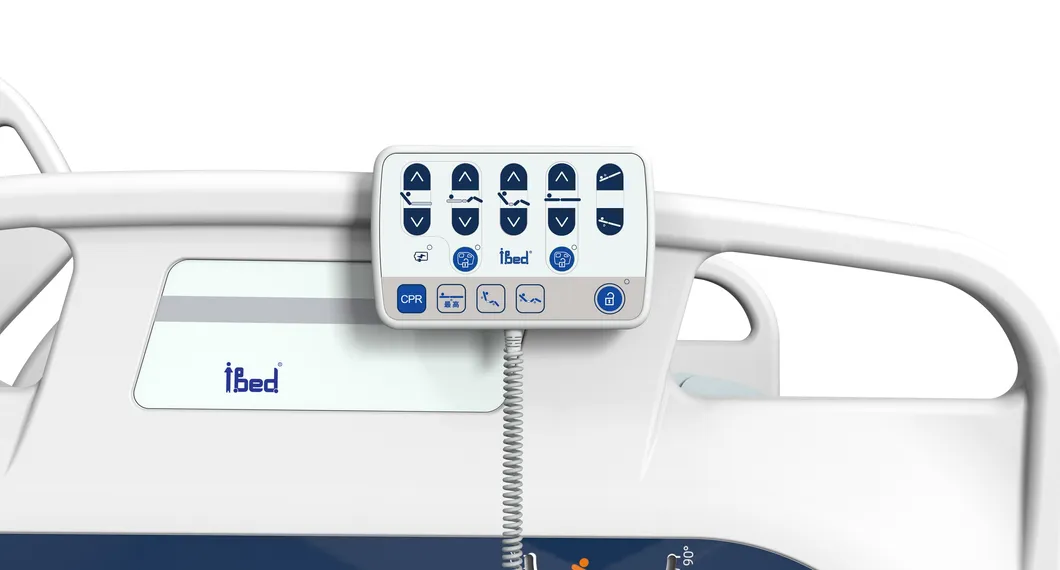

Central Controller

Multi-function interface displaying power status, side guardrail locks, and critical one-button position switches.

🌟 Advanced Care Features

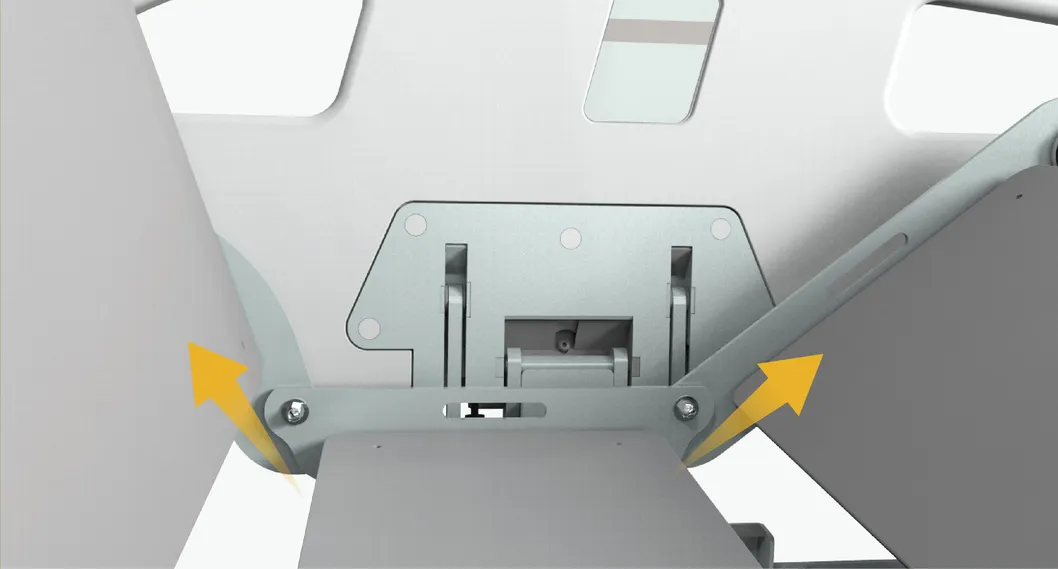

Auto-Rollback System

Reduces patient displacement and shear force automatically during body position adjustments, enhancing comfort.

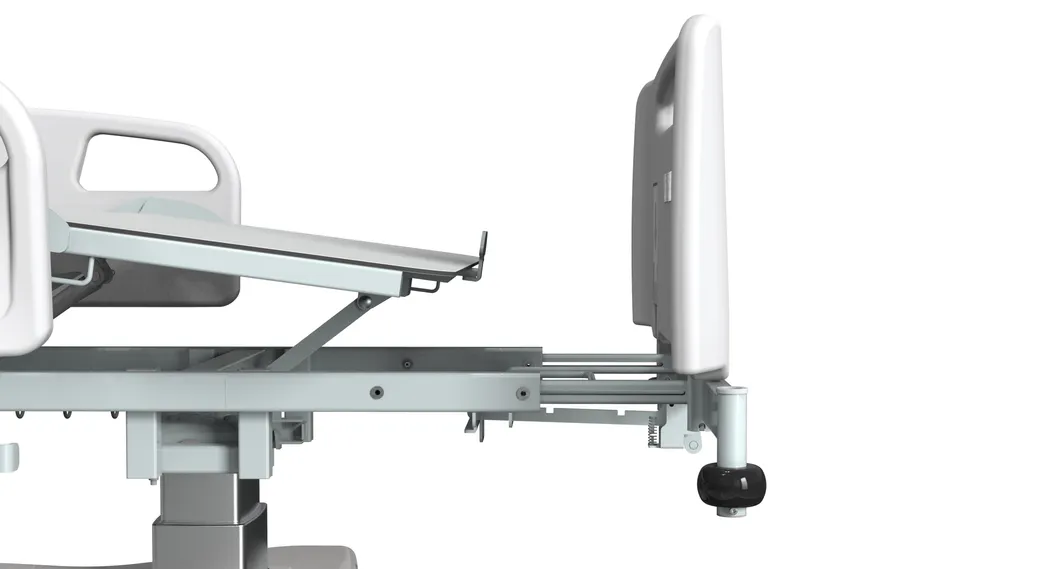

Bed Extension

Segmented extension function to accommodate patients of different heights, ensuring comfortable rest.

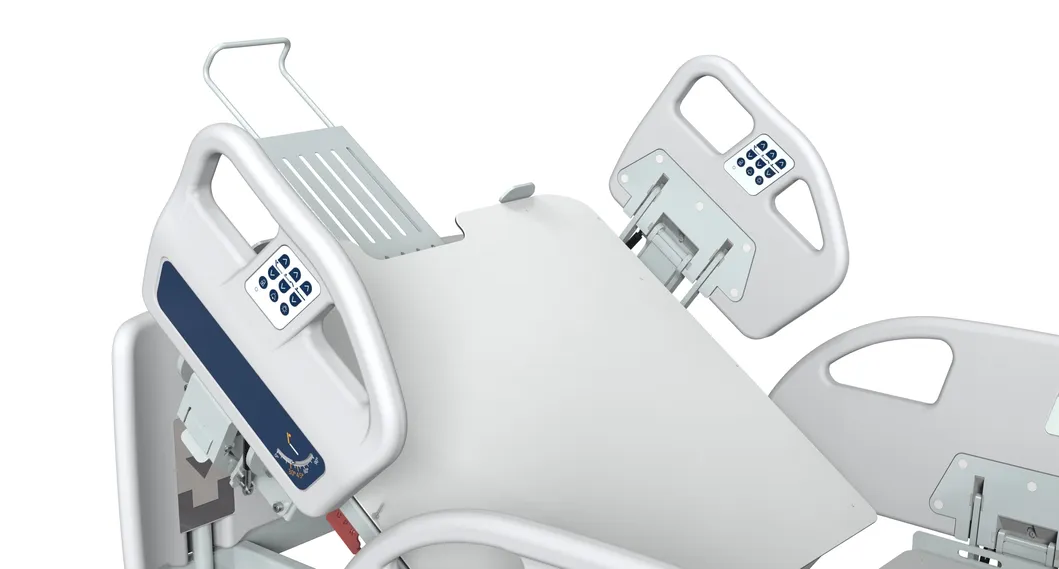

X-Ray Cassette Holder

Infinitely positioned placement structure allowing X-rays to be taken at the bedside without lifting the patient.

🛡️ Quality Control & Safety

✔ Premium Danish Linak motors for durable stability (UL/ROHS/EN Standard).

✔ High-quality Baosteel construction from Fortune Global 500 sources.

✔ 7-inch touch screen for intuitive bilingual (EN/CN) operation.

✔ Brake system qualified after 10,000 uninterrupted cycles.

✔ Epoxy painting with anti-bacterial ASTM testing (0.12mm thickness).

📊 Technical Parameter Table

Parameter Item	Specifications
Overall Size (LWH)	2240 * 1050 * 510-910 mm
Mattress Platform	1980 * 840 mm
Safe Working Load	230 kg
Head Up/Down	0 - 70°
Knee Up/Down	0 - 45°
Trendelenburg / Antitrendelenburg	0 - 16°
Angle Indicator	0 - 90°
Linear Motor	4 pcs
Castors (Central Locking)	5" (4 pcs)
Bed Extension Range	200 mm
Drainage Hooks	14 pcs

❓ Frequently Asked Questions

Q1: How many functions does the iBed 5 offer?

The iBed 5 is a comprehensive five-function electric bed, including height adjustment, backrest, knee rest, and Trendelenburg/Antitrendelenburg positioning.

Q2: Can X-rays be taken while the patient is on the bed?

Yes, the bed features an X-ray translucent mattress platform and a dedicated cassette placement structure for bedside imaging.

Q3: What is the maximum weight capacity of the bed?

The safe working load for the iBed 5 is 230kg, supported by a sturdy column-type motor structure.

Q4: Does the bed have emergency safety features?

Yes, it is equipped with dual-sided manual CPR levers with damping devices and a one-button electric CPR release for emergency situations.

Q5: Is the bed suitable for taller patients?

Absolutely. The bed frame includes a 200mm segmented extension function to accommodate patients of various heights.

Q6: What type of motors and control systems are used?

The bed utilizes high-end Danish Linak motors and features a 7-inch touch screen controller alongside built-in guardrail controls and foot pedals.
