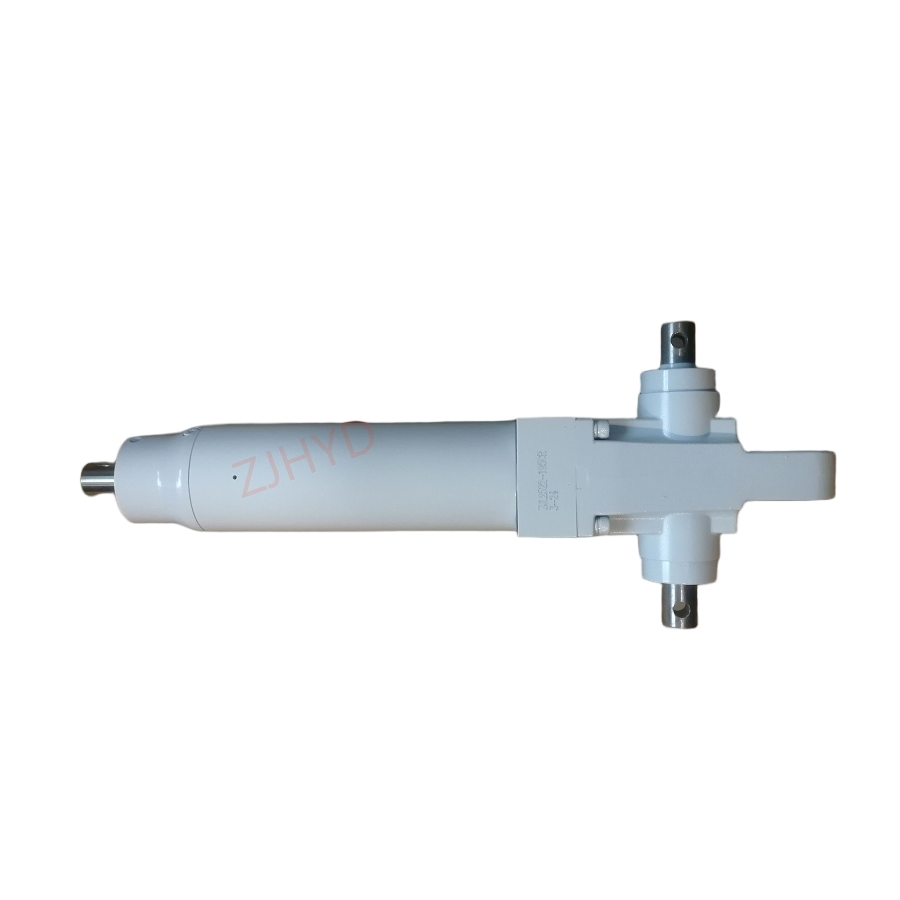

Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
1 / 5
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed
Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed

Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed

Material: OEM
Type: Hydraulic
Folded: as Required
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ZJ
Using Ambient
Hospital
Numbers of Function
as Required
Certification
CE
Condition
New
Transport Package
Plywood Case
Specification
OEM & ODM
HS Code
8412210000
Production Capacity
50000 PCS / Year
⚙️ Product Description
Hydraulic Cylinder for Hospital Bed / Medical Bed / Lifting Table

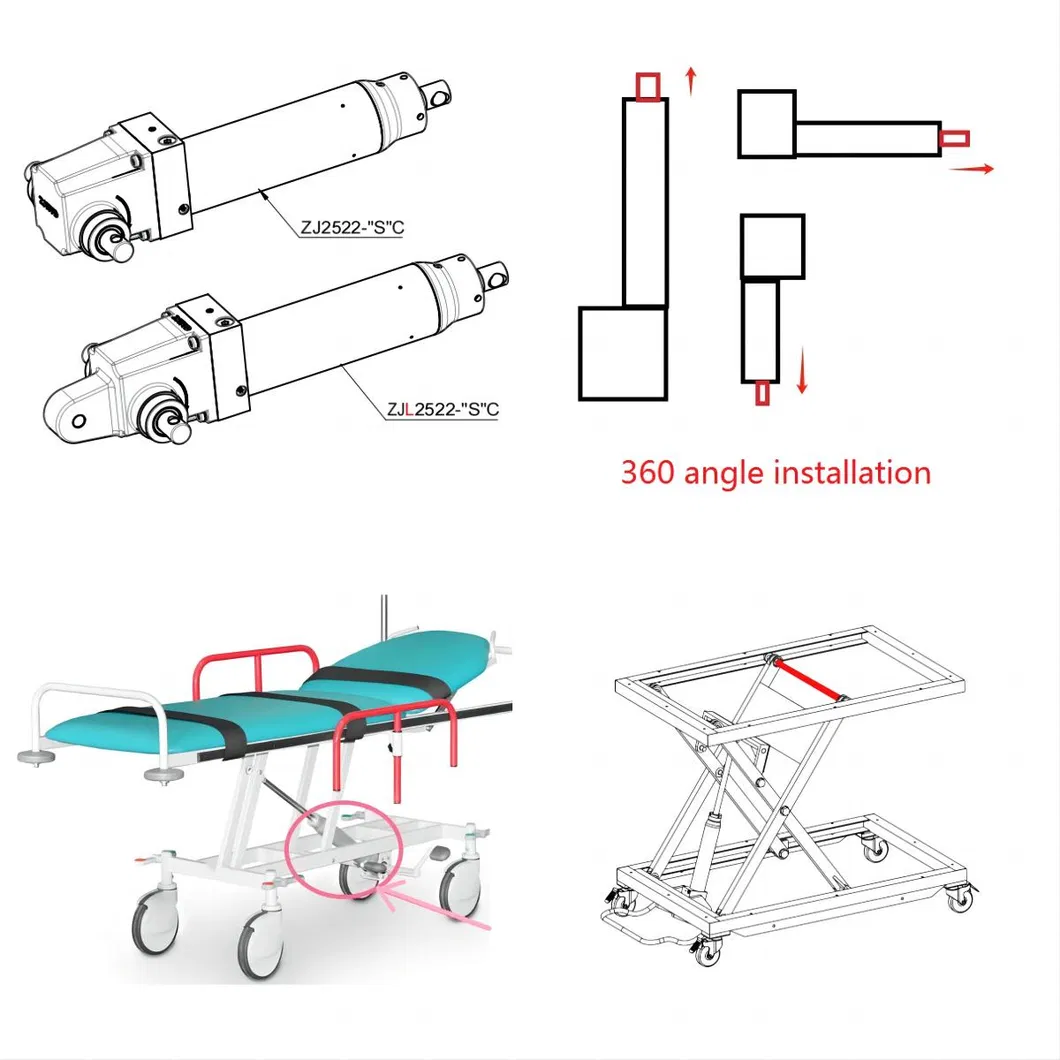

Hydraulic Cylinder Main
Technical Specifications
  • Maximum work load: 600 Kg
  • Maximum bearing load: 700 Kg
  • Minimum relief load: 20 Kg
  • Each stroke of pressure: 6mm
  • Safety protection valve: Yes
  • Pressure relief velocity: < 15mm/S
  • Service life: > 50,000 times
  • Release Stroke: 6°~10°
  • Free Stroke: 2°~5°
  • Pump Stroke: 31°~35°
  • Installation: 360° position
Models Stroke (mm)
ZJ2522-100C / ZJL2522-100C100
ZJ2522-130C / ZJL2522-130C130
ZJ2522-140C / ZJL2522-140C140
ZJ2522-150C / ZJL2522-150C150
ZJ2522-180C / ZJL2522-180C180
ZJ2522-200C / ZJL2522-200C200
ZJ2522-250C / ZJL2522-250C250
ZJ2522-280C / ZJL2522-280C280
ZJ2522-300C / ZJL2522-300C300
🌟 Key Features

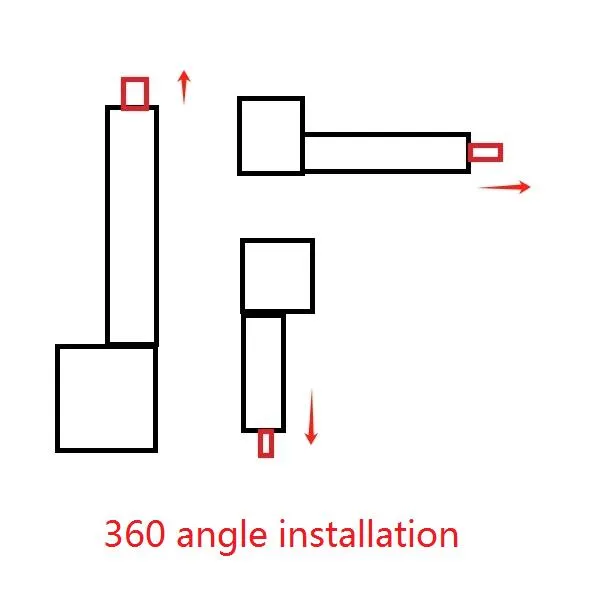

1. 360° Position Operation: Patented function allowing work at horizontal, above, or below horizontal lines.

360 operation

2. Overload Protection:
(1) Automatic pressure rising prevention at setting values (e.g., 600KGS) to protect the cylinder.
(2) Triggered relief valve if weight exceeds setting capacity.

3. Premium Components: High-quality JAPAN spring for relief valves. 304 stainless steel rods and shafts with hard chrome plating. Precise CNC machined valve blocks.

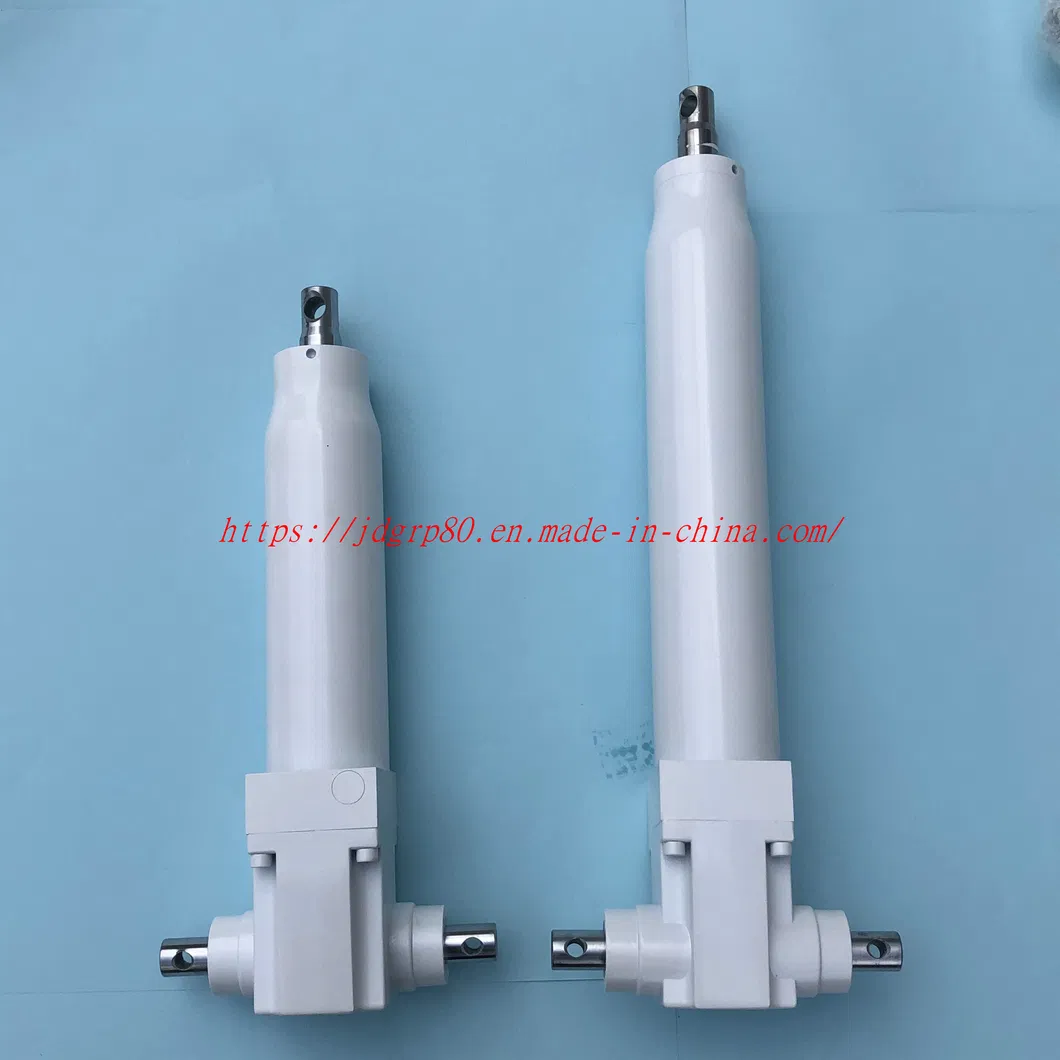

Detail 1

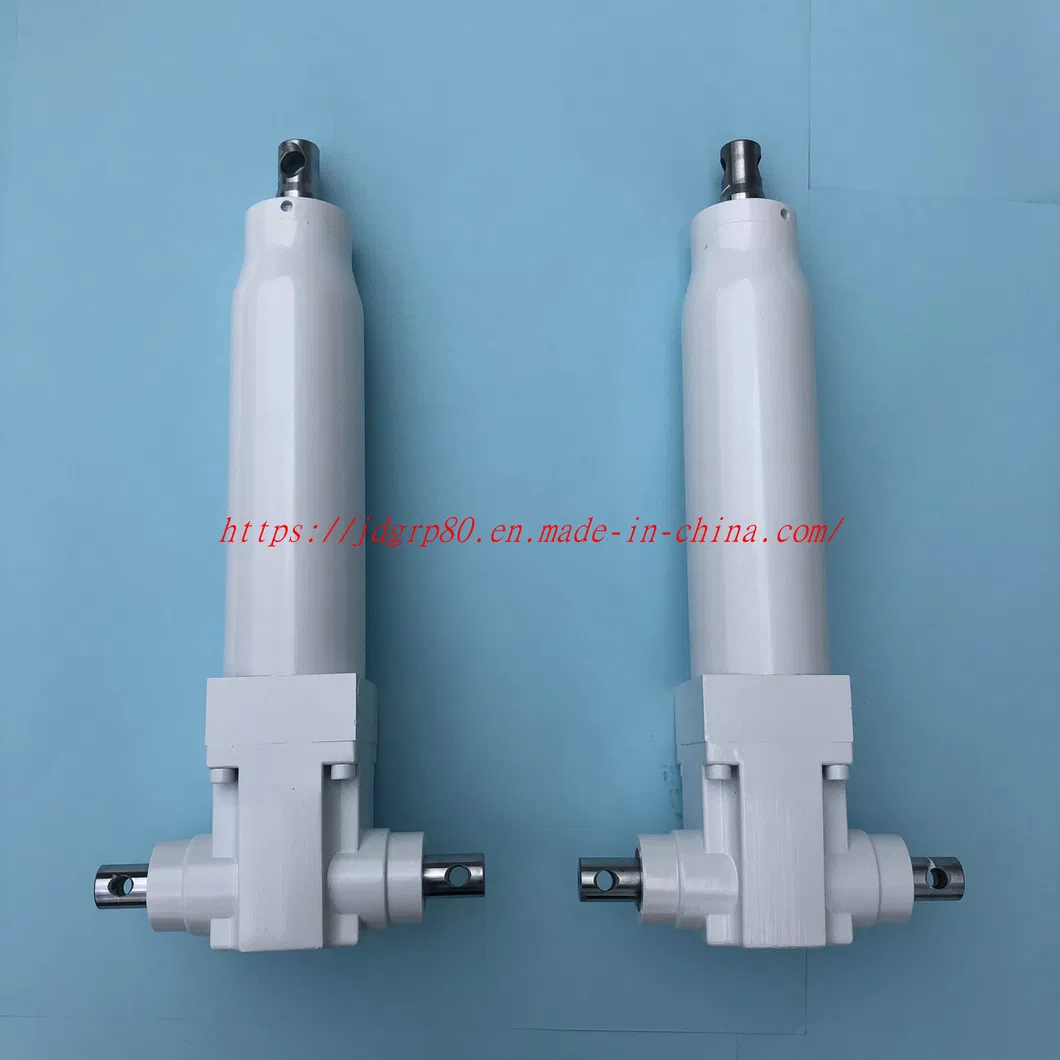

Detail 2

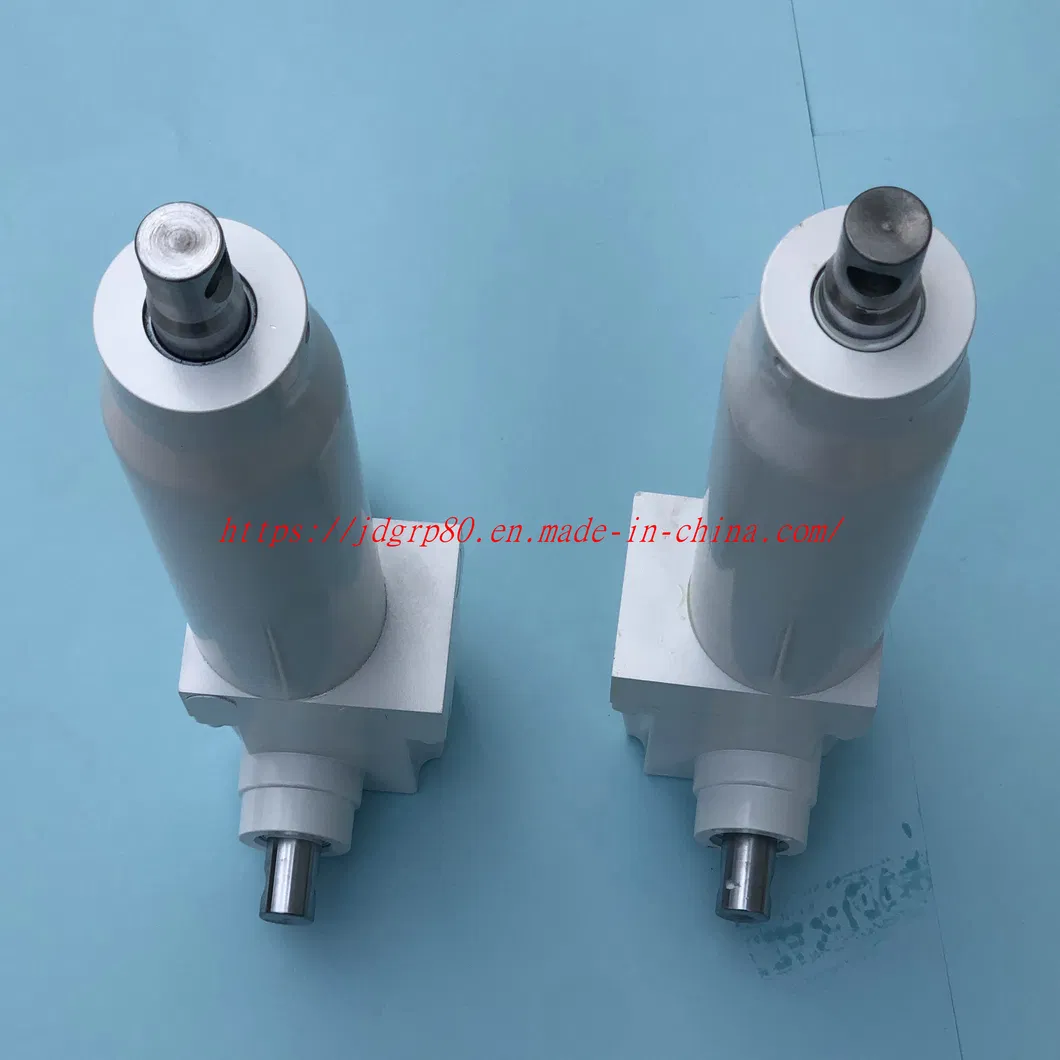

Detail 3

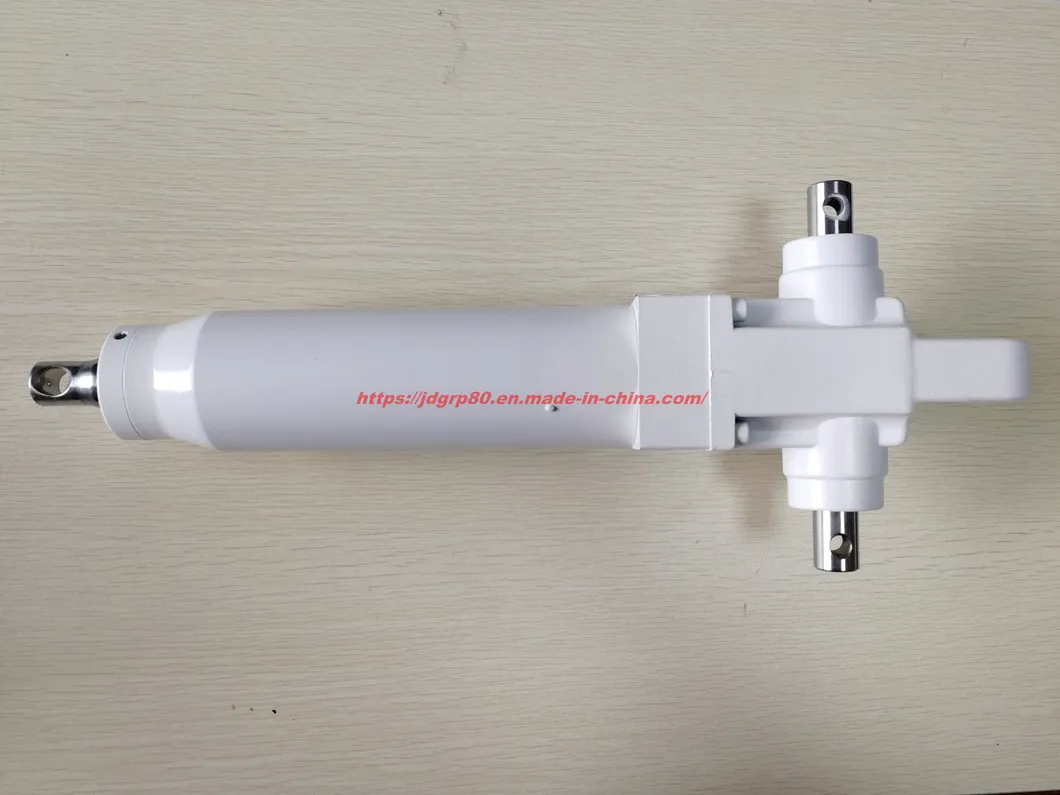

Detail 4
Detail 5
Dimensions
Usage Scenario
❓ Frequently Asked Questions
What is the maximum load capacity of this hydraulic cylinder?
The cylinder supports a maximum work load of 600 Kg and a maximum bearing load of 700 Kg.
Does this product feature overload protection?
Yes, it includes a safety protection valve and a patented overload protection function that automatically prevents pressure from rising beyond setting values.
What materials are used in the construction?
The rods and shafts are made of 304 stainless steel with hard chrome plating, and the valve blocks are CNC machined for precision.
Can this hydraulic pump be installed in any orientation?
Yes, it features a patented 360° position working function, allowing it to operate horizontally or at various angles.
What is the estimated service life of the cylinder?
The cylinder is designed for high durability with a service life exceeding 50,000 operation cycles.
Are OEM and ODM services available?
Yes, we provide OEM and ODM specifications to meet specific requirements for medical and hospital equipment.
