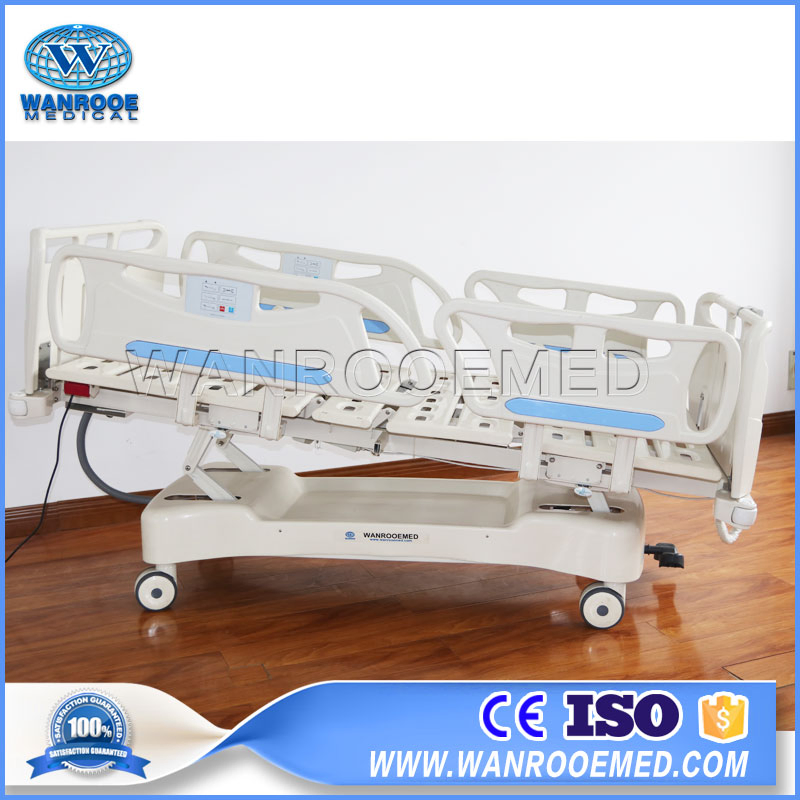

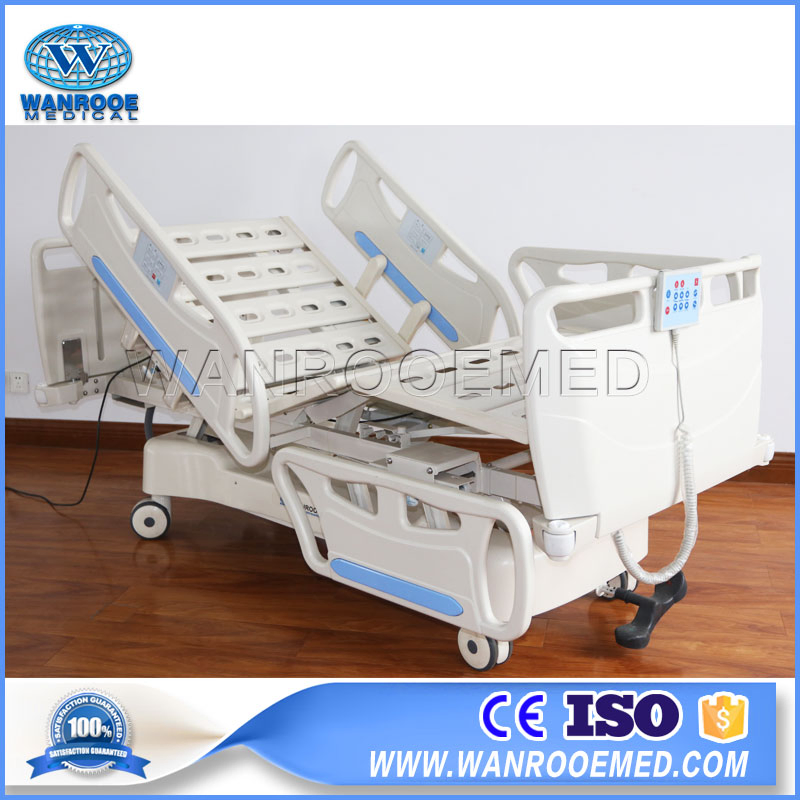

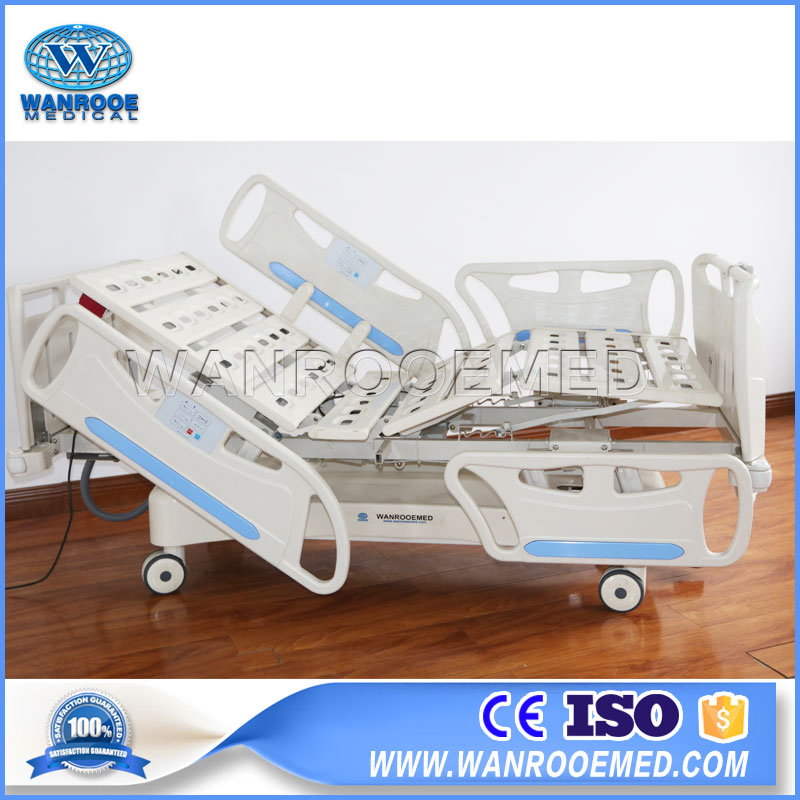

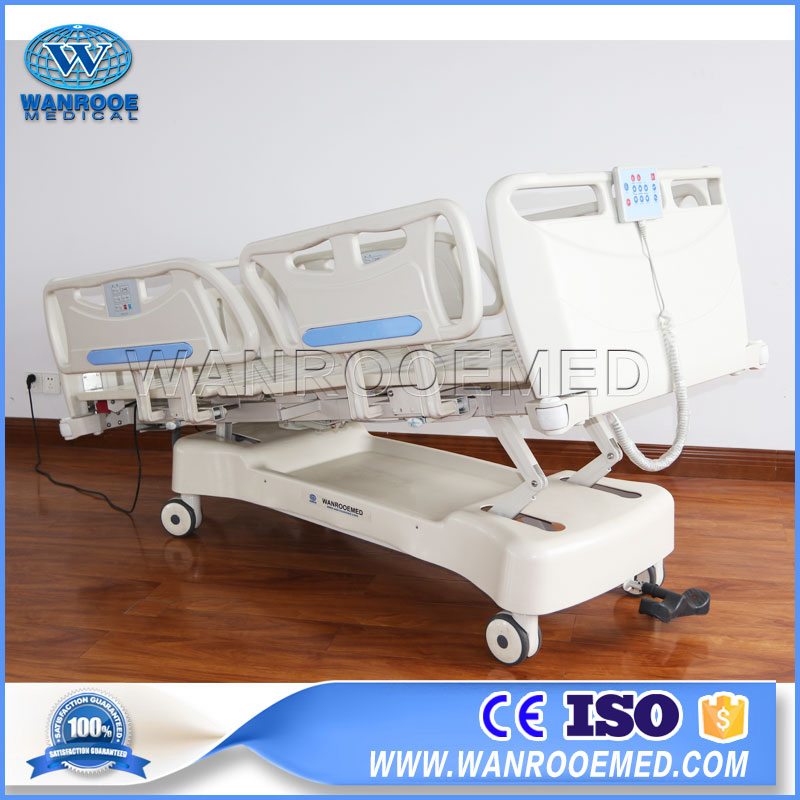

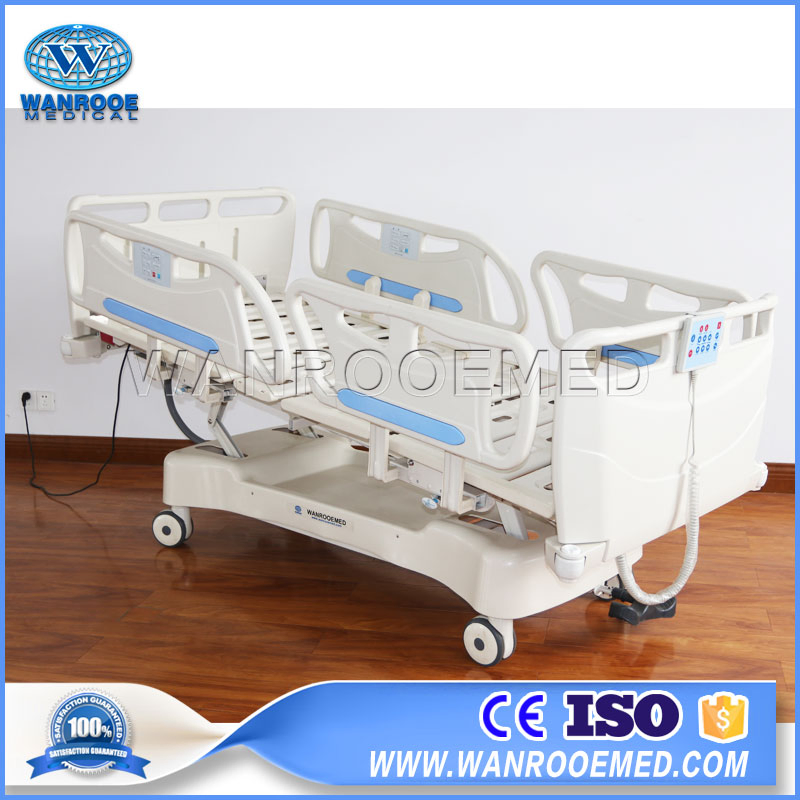

Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
1 / 5
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control

Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control

Customization: Available
Material: Metal
Type: Electric Bed
Send Inquiry

Product Description

Medical ABS 5-Function ICU Electric Adjustable Hospital ICU Patient Care Bed with Remote Control
Medical ICU Bed
📋

Basic Specifications

Model NO.BAE522EC-A
FoldedUnfolded
Using AmbientHospital
CertificationCE, FDA, ISO13485
ConditionNew
Warranty1 Year
FunctionMultifunction
Overall Size1940mm *951mm
ColorWhite
Castors4
HandrailsPlastic
HeadboardPlastic
UsageICU Room
Power220VAC or 110VAC
HS Code94029000
Capacity200 Sets/Month
📝

General Description

Overview The BAE522EC Electric Hospital Bed is an adjustable electric hospital bed that offers high quality and safe performance for both patients and caregivers. Designed to meet stringent quality and safety standards, it is an ideal choice for ICU environments.
Standard Features
  • 4 LINAK motors for precise adjustment
  • Translational side rails with zero-transfer gap
  • Battery backup system for power outages
  • Manual CPR handle for emergency use
  • Integrated caregiver and patient side rail controls
  • Lockout control on footboard
  • 12° Trendelenburg and reverse Trendelenburg
  • Simultaneous head and knee section movement (Cardiac chair position)
  • 4-position IV pole mounts and central controlled castors (125mm)
Technical Data Overall Size: 1940mm * 951mm (with 5" castor)
Bed Size: 2180mm * 1080mm
Weight Load: Maximum user weight up to 250kg
Max Back Elevation: 75°
Power: 220VAC/110VAC, 50-60HZ
🖼️

Product Details

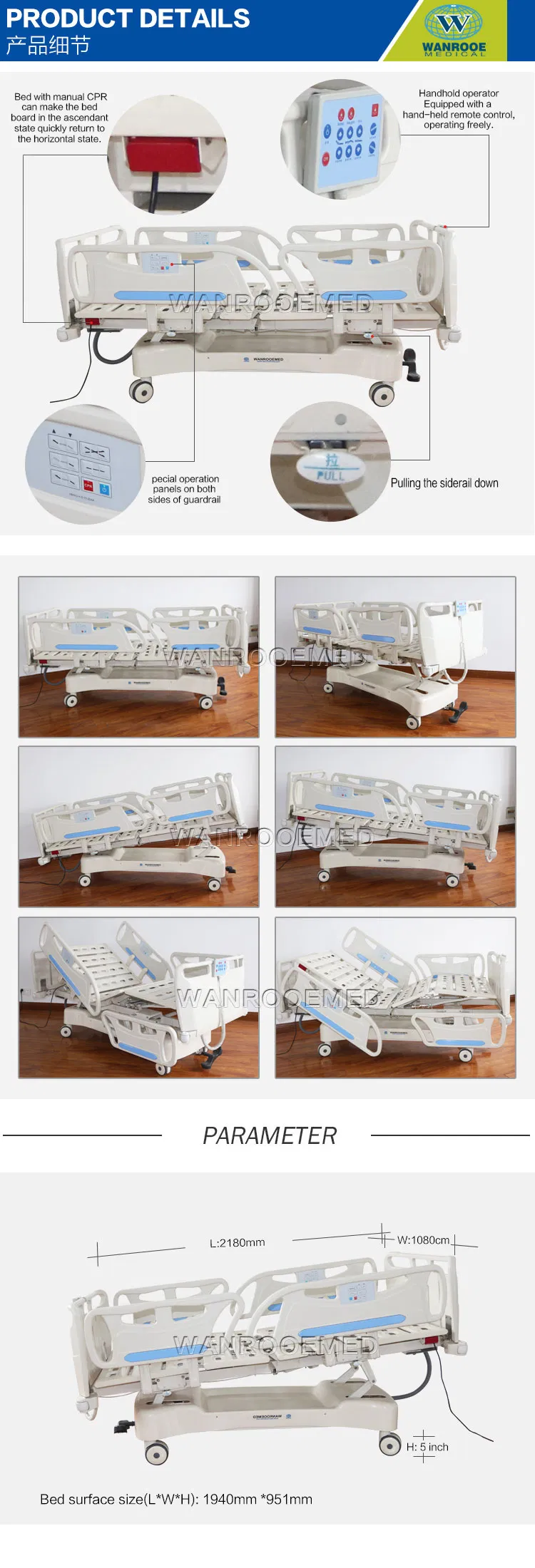

Bed Details
Adjustment Details
Side Rail Details
Full View
❓

Frequently Asked Questions

1. What are the primary functions of the BAE522EC-A ICU bed? The bed features 5 electric functions including backrest elevation, knee-rest elevation, height adjustment, Trendelenburg, and reverse Trendelenburg positions.
2. What is the maximum weight capacity of this patient care bed? The bed has been fully tested for a sturdy construction and can support a maximum user weight of up to 250kg.
3. Does the bed include emergency safety features? Yes, it includes a manual CPR handle for rapid flattening of the bed and a battery backup system to ensure operation during power failures.
4. What type of control systems are provided? The bed is equipped with caregiver controls on the side rails and footboard, as well as patient side rail controls and a remote control for convenience.
5. Are the castors easy to manage for hospital staff? Yes, the bed features 4 centrally controlled castors with a 125mm diameter, allowing for smooth movement and secure locking within the clinical environment.
6. Is the bed compatible with standard medical accessories? Yes, it is compatible with standard mattresses, over-bed tables, and bedside cabinets. It also includes 4-position IV pole mounts on all corners.
