iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
1 / 5
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control
iBed PLR 3 PRO Electric Adjustable Bed with Remote Control

iBed PLR 3 PRO Electric Adjustable Bed with Remote Control

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
iBed PLR 3 Pro
Using Ambient
Hospital
Numbers of Function
Five-function
Certification
CE, ISO13485
Condition
New
Length*Width*Height
2.35m*1.15m*0.78m
Controller
LCD / Touch Screen
Transport Package
Carton
HS Code
9402900
Production Capacity
12000 PCS/Year
Product Description
iBed PLR 3 PRO Overview
iBed PLR 3 PRO Side View
iBed PLR 3 PRO Details
Core Functions & Intelligent Control
⚙️

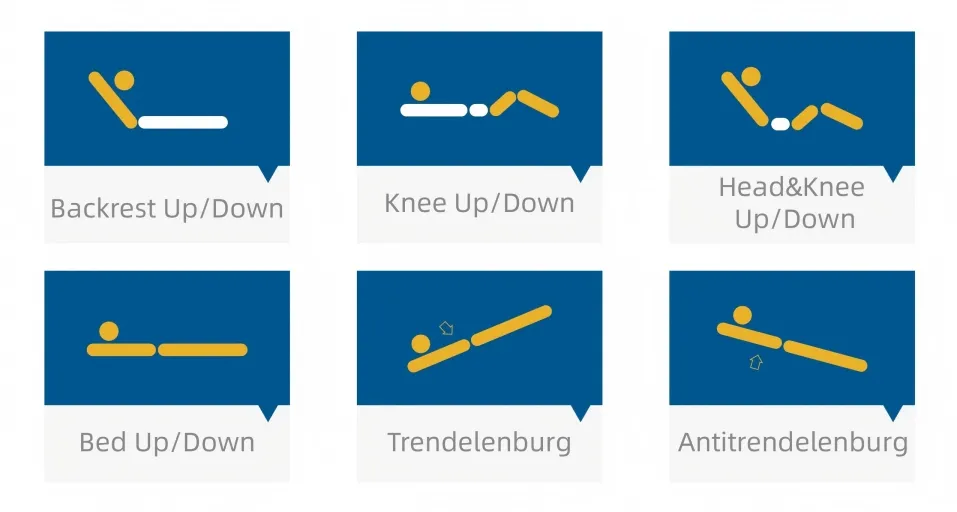

Basic Functions:
Electric backrest Up/Down, Knee Up/Down, Bed Up/Down, Trendelenburg and Antitrendelenburg.
🖱️

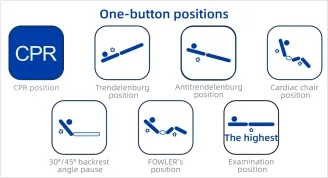

One-Button Positions:
Cardiac chair, Trendelenburg, Antitrendelenburg, Semi-recumbent, Fowler, Examination, and CPR positions.
📊
Advanced Weighing System:
0.01Kg accuracy with storage for 30 measurements and trend chart display for weight change monitoring.
📱
7-Inch Touch Screen:
Replacing traditional buttons for intuitive operation. Supports English and Chinese languages.
Basic Functions
One-button control

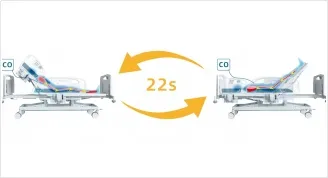

PLR Position
Safety & Quality Control

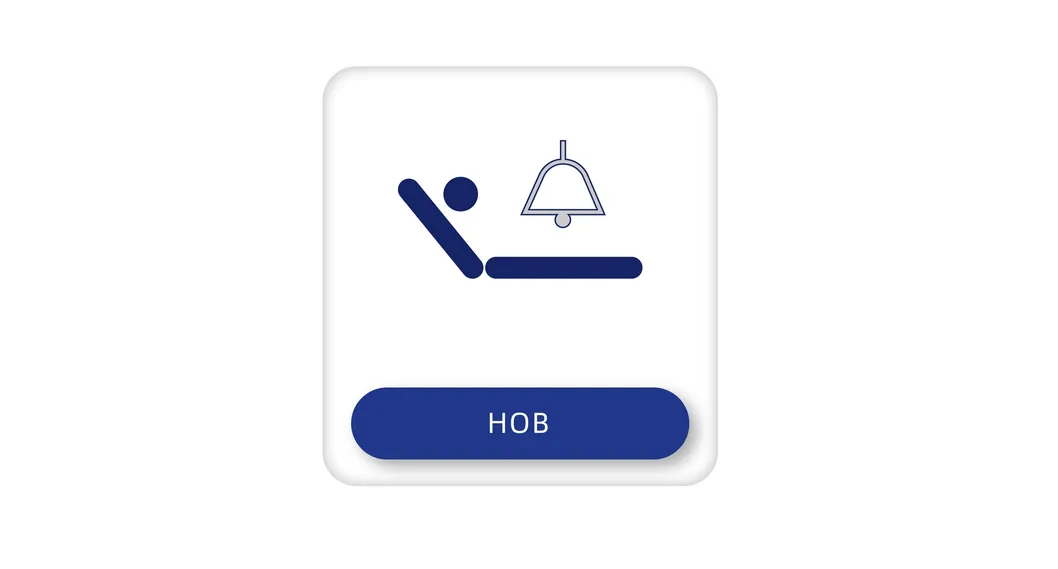

HOB Monitoring: Checks back-board angle (30-45°) and provides voice broadcasts for staff alerts.
Manual CPR: Dual-sided levers with damping devices allow for safe, controlled backrest descent.

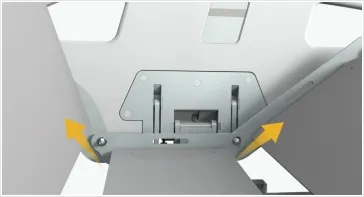

Auto-Rollback: Reduces patient displacement and shear force during position adjustments.
Fall Prevention: High-strength structure with gravity-locked guardrails for maximum patient safety.
HOB Monitoring
Preventing Falls
Auto-Rollback
Technical Parameters
Parameter Dimension / Value
Overall Size (L*W*H)2200 * 1035 * (415-785) mm
Mattress Platform2000 * 811 mm
Safe Working Load230 kg
Head Up/Down0 - 70°
Knee Up/Down0 - 45°
Trendelenburg / Antitrendelenburg0 - 16°
Linear MotorLinak Motor (Denmark), 5 pcs
Castors5″ Central Locking, 4 pcs
Wall Bumper WheelsΦ74mm, 4 pcs
Bed Extension (Optional)200 mm
Dimension Drawing
Key Accessories
  • ✅ HDPE One-Step Removable Bed Ends
  • ✅ X-Ray Translucent Mattress Platform
  • ✅ Tuck away side rail with buffer
  • ✅ 5" directional wheels for easy control
  • ✅ Integrated Night light underneath
  • ✅ Full Stainless Steel IV pole (15kg bearing)
  • ✅ 12 Patient Restraint Sites
  • ✅ Backup Battery (up to 130 movements)
Product Line 1
Product Line 2
Frequently Asked Questions
Q1. Can I get a sample of the iBed PLR 3 Pro?
Yes, samples are available for quality evaluation. Please contact our team for details.
Q2. Is OEM/ODM service available for this medical bed?
Yes, we support using your own logo or design on the product to meet specific market requirements.
Q3. What is the production capacity for hospital beds?
Our factory has a production capacity of approximately 1,000 beds per month, ensuring a steady supply for large projects.
Q4. How long is the delivery time?
Standard products in stock can typically be shipped within 7 days. Production lead times may vary based on order size.
Q5. Does the bed meet international safety standards?
Yes, our products are CE and ISO13485 certified, complying with IEC60601 safety standard functions.
Q6. What motors are used in the electric system?
We use high-quality Linak motors from Denmark to ensure durable stability and compliance with UL/ROHS/EN standards.
