🛏️ Product Description

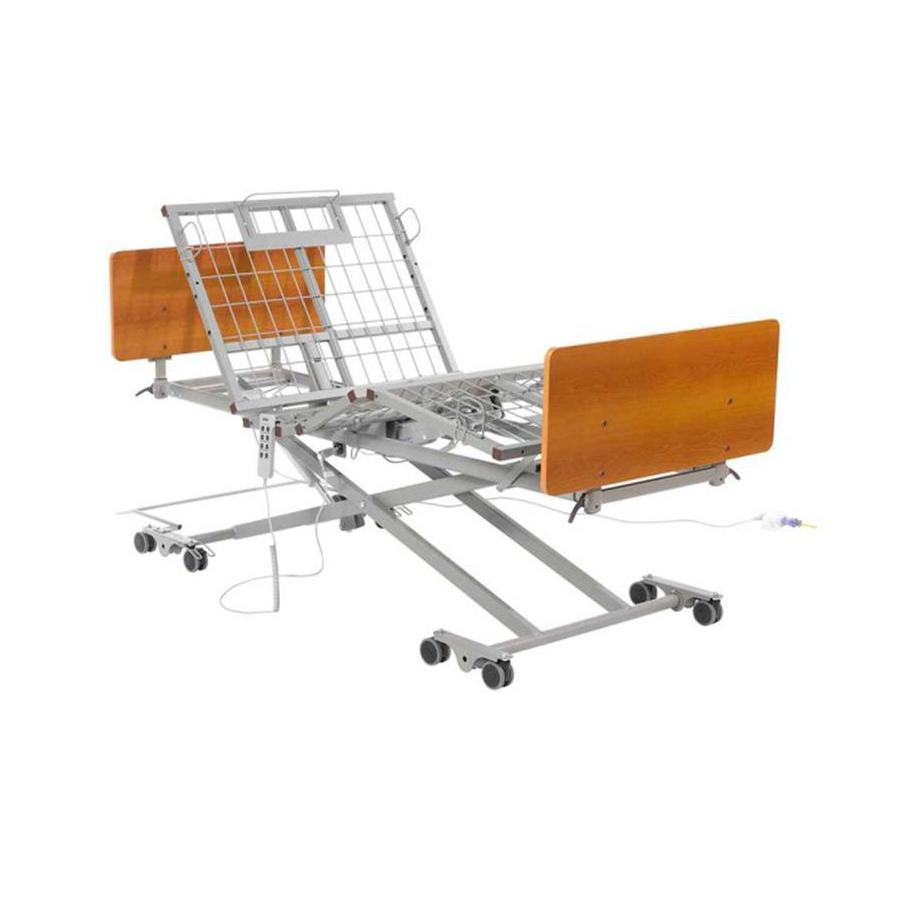

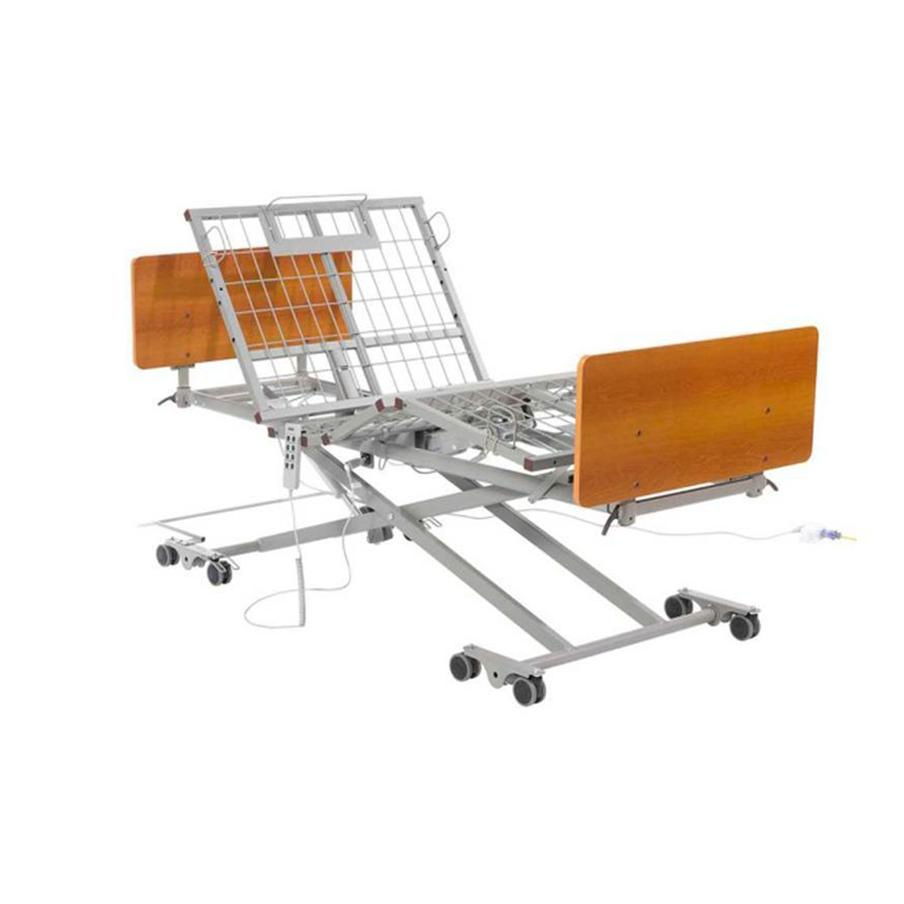

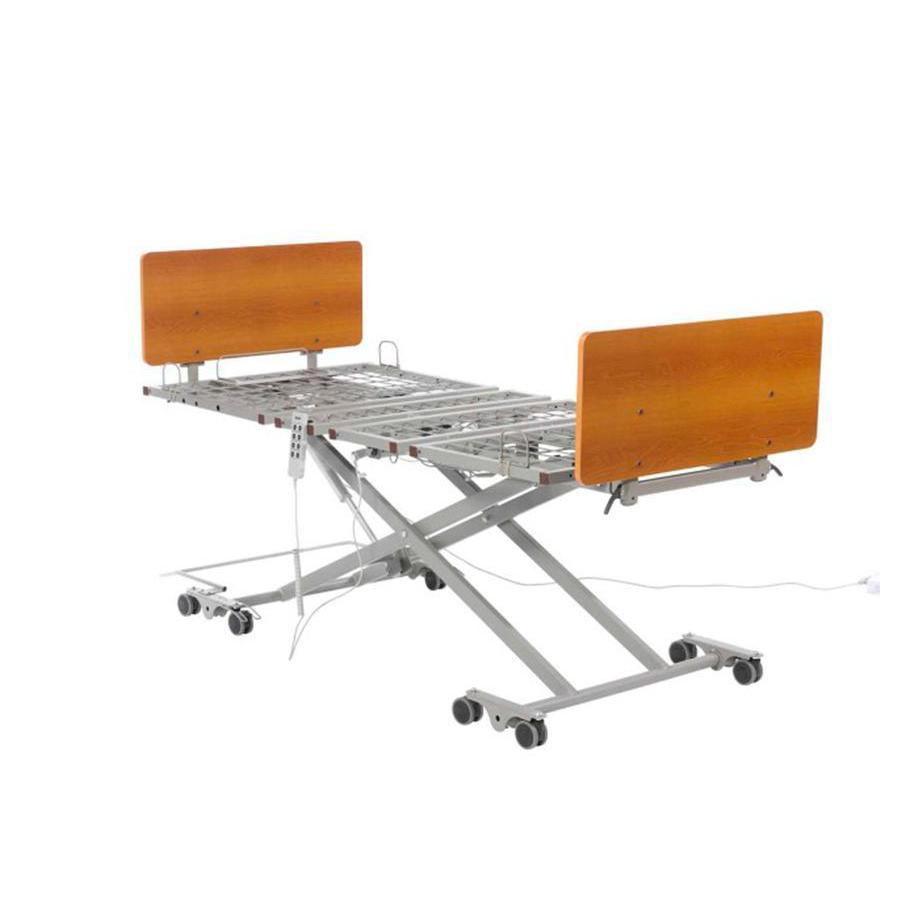

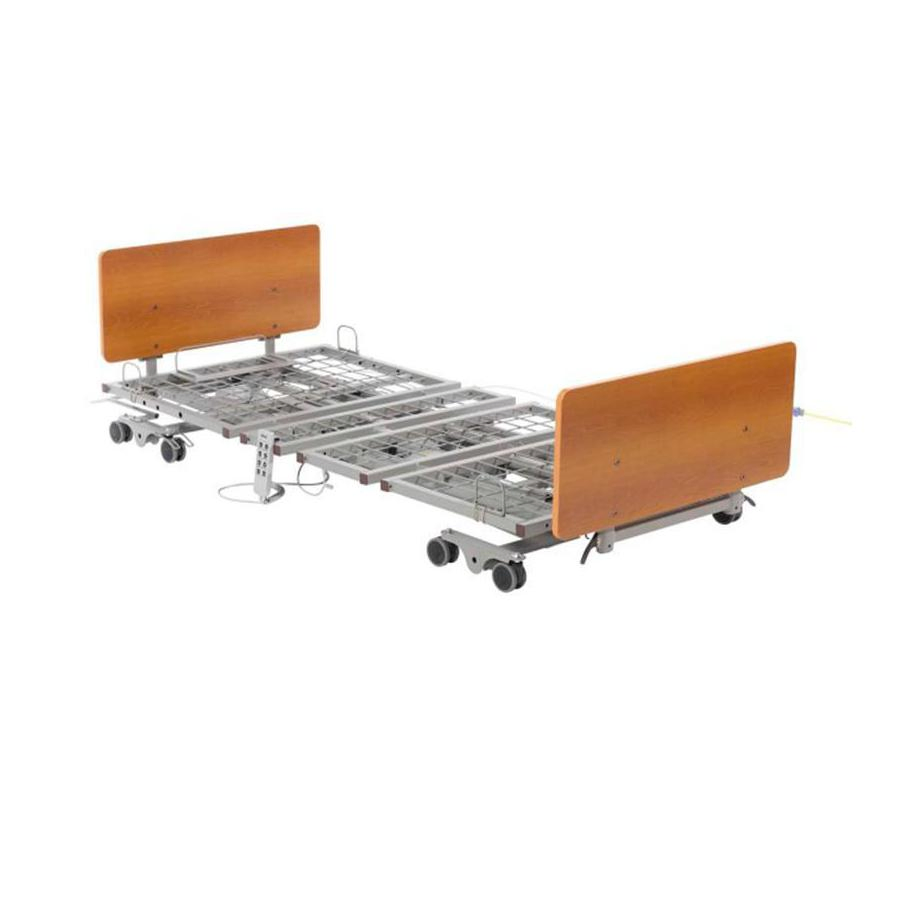

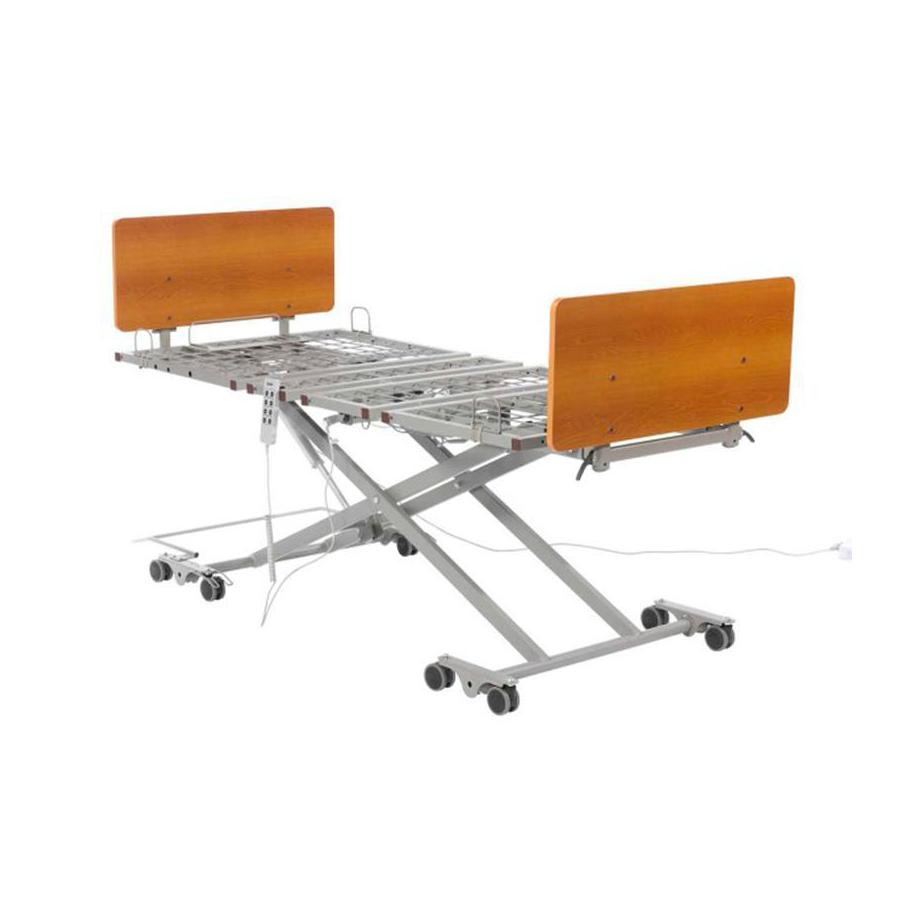

Durable Long Term Care Bed with Steel Structure and Electric Controls
Electric nursing beds are essential equipment in healthcare facilities, providing comfort and convenience for patients and caregivers alike. These beds are designed to be easily adjustable, allowing for optimal positioning to meet the needs of patients with varying medical conditions. One key feature of electric nursing beds is their ability to be raised and lowered at the touch of a button, making it easier for caregivers to assist patients with mobility issues. This not only improves patient comfort but also reduces the risk of injury for both patients and caregivers.
⚙️ Key Features
- 450 lbs. weight capacity, Resident Weight 425 lbs

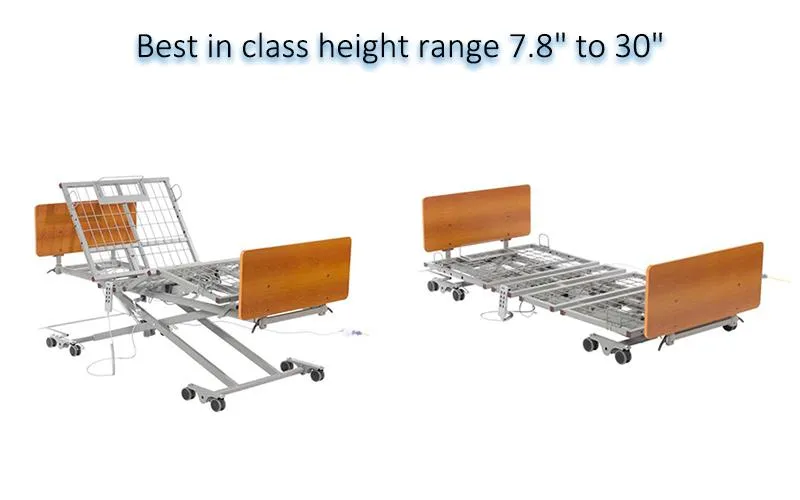

- Best in class height range 7.8" to 30"
- Integrated 76" and 80" length extension

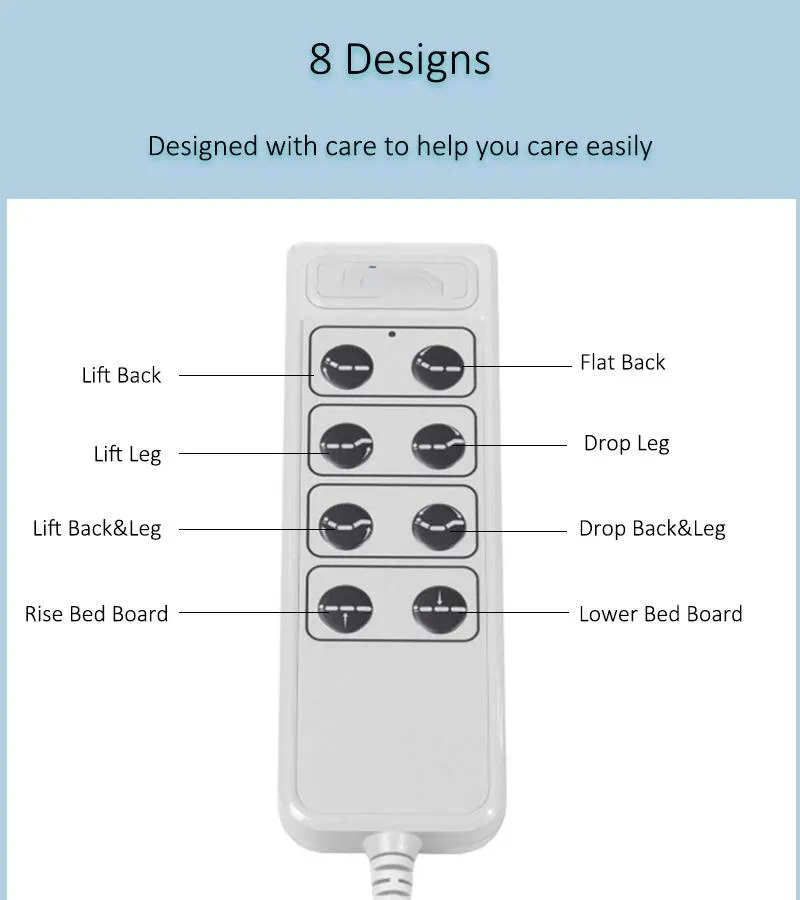

- Eight (8) Function Handheld Pendant Control includes Auto Contour
- 3 DC Motors keeps bed level with true vertical lift
- Four sealed bearings for smooth/quiet lifting

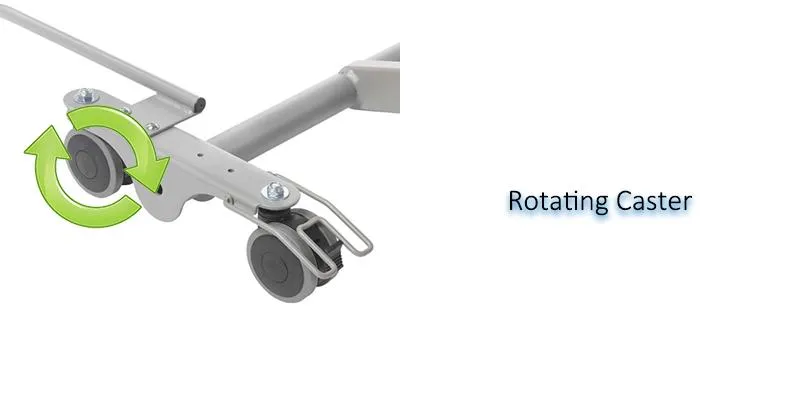

- Eight 3" Heavy Duty casters roll at any height
- 4 locking casters, 2 caster guide locks
- Fixed wall bumper
- Optional Assist Rails and Assist Bars
| Height Range |
Bed Dimensions |
Deck Style |
| 198mm - 760mm |

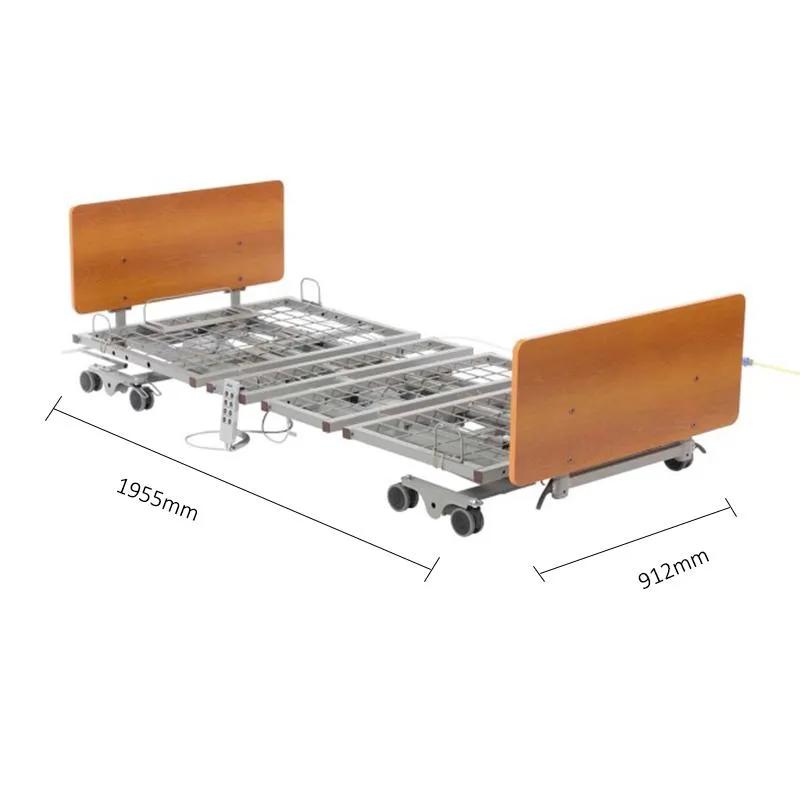

1955*912*198mm |
Steel pipe welding |
| Expansion Details |
Functions |
| Max length 2280mm |
Bed lifting, Back plate lifting, Leg plate lifting |
| Weight Capacity |
Motors |
Adjustment Angles |
| 450 LBS |
3 DC Motors |
Head: 60° / Hip-Knee: 30° |
❓ Frequently Asked Questions
What is the total weight capacity of this medical bed?
The bed has a maximum weight capacity of 450 lbs, with a resident weight rating of 425 lbs.
What is the height adjustment range?
This bed offers a best-in-class vertical lift height range from a low of 7.8" to a high of 30".
Does the bed include a battery backup system?
Yes, it comes with a 24V 1.3A lead-acid battery backup option to ensure functionality during power outages.
How many motors are used in the adjustment system?
The bed is powered by 3 DC motors that maintain bed levelness with true vertical lift capabilities.
What kind of control interface does it have?
It includes an eight-function handheld pendant control that supports features like Auto Contour for patient comfort.
Is the bed length adjustable?
Yes, it features integrated length extensions for both 76" and 80" configurations.
